Specifications and Configuration Model Items Unit TMB- 1100C TMB- 1300C TMB- 1450C TMB-1600C Face Paper g/㎡ + 200 + 200 + 200 + 200 Bottom Paper g/㎡ +250 Cardboard,A, B, C, D, E, F Flute Maximum Paper Size(WxL) mm 1100 x 900 1300 x 1100 1450 x 1100 1600 x 2000 Minimum Paper Size(WxL) mm 360 x 360 360 x 360 360 x 360 360 x 360 Speed m/min. 45 45 45 45 Total Power kw 3 3 3 3.5 Total Weight kg 4800 5500 6200 7800 Remark: The glue roller will be stainless steel.

We are reckoned as a prominent Semi Automatic Stitching Machine Exporter, importers and Supplier in India. The Semi Automatic Stitching Machine, offered by us, is high in performance and thus highly demanded amidst the global customers. Our Semi Automatic Stitching Machine is designed as per the set industrial standards. Features Stitching one pin, two pins or high strength pinShift setting as per different sheet sizes only within one minute, easy operationAutomatic counting at feeding sectionTouch screen for operationMax paperboard size : 2800x1515mmMin paperboard size : 550x300mmThe paperboard pile height at feeding table is max 900mmPin distance is adjustable between 30-120mmPaperboard : 3 and 5ply corrugated paperboardMachine speed : 400pins/minWire : 2.0x0.75mmPin number : 1-99 pieces

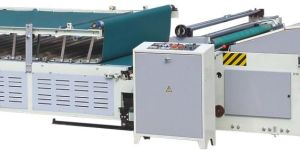

The company is a prominent Semi Automatic Flute Laminating Machine Exporter, Importer, and Supplier in India. TMB-C Series Semi Automatic Flute Laminating Machine uses vacuum-sucking paper conveying type for the bottom paper and top paper is fed manually by hand while the operator is standing at the side of the machine. This type of design of our Semi Automatic Flute Laminating Machine is labor effective with low purchasing and production cost, easy to operate and maintenance. Description The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production costBalance-tested rollers, tight assembling technique makes the machine runs quite stableThe machine adopts automatic glue supply and recyclable glue circulating systemTop or bottom sheet detectors are installed on the machine and the machines will automatically stop while shortage of sheets-either top or bottom one is detected. The electric parts used are all worldwide available brand or well-known Chinese brandAll material bought from outside are inspected according to ISO-9001 standard and the key parts such as bearings are imported onesThe bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet. It can do3 or 5 ply board to sheet lamination or board to board lamination. The range for top paper can be 150-600 GSM with top paper advance or alignment functionCE certificate availableGluing even : 30-50gsm. Quite cost effective for your production

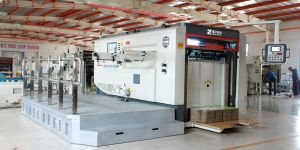

We are a chief semi automatic die cutting machine exporter, importers, supplier in india. The semi automatic die cutting machine has been improved in terms of the appearance, operation platform, the overall height and lifting from front to back. The touch screen put the man-machine interface into effort while ensuring human security and normal work condition under the fault detector by encoder. details model : xcm with ce approvalmachine : semiautomatic die cutting machine (with pre-loading device)package : wooden casepayment : 30% in advance to be made by t/t at sight; and the balance to be made by t/t at sight before shipmentdelivery : within 3 months after the receipt of the advancewarranty : one year description the semi automatic die cutting machine applies to die-cutting of advanced colored box made of paper, is our new product adopting international high-end streamline design and combined several advantages over many other die-cutters both at home and aboard. By advanced technology of fastening with nail in giving as security of the die-cutting precision applies to all kinds of cardboard and corrugated paper, characterized by three-way location, high density, intermittent mechanism, air clutch and manual barring gear, imported electronic control system, superb speed and stable running.

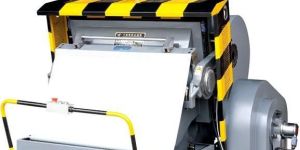

The company is chiefly engaged in exporting, and supplying of manual die cutting machine and creasing machine all across the globe. The manual die cutting and creasing machine, offered by us, is known for its excellent efficiency and longer working life. The manual die cutting and creasing machine is procured from the renowned international sources only. acclaimed for lower maintenanceefficiencylonger working lifenew technology

We are a well-reckoned High Speed Automatic Pasting Machine Exporter, Importer, and Supplier in India. Speed, reasonable structure, convenience, and flexible operations are some of the characteristics of our High Speed Automatic Pasting Machine. High Speed Automatic Pasting Machine is suitable for the paste processing of wine box, cosmetic box, CD boxes document boxes, and french-fries boxes, etc. Model YZHH-800 Description In the pre-folding part of YZHH High Speed Automatic Pasting Machine, the first fold and the third fold can be exchanged by 180 degree and 150 degree. The second fold and the fourth fold can be molded in 180 degree and the special design of High Speed Automatic Pasting Machine is also available. Main parts of High Speed Automatic Pasting Machine are adopted import and domestic famous brand products, such as folding belt is adopted powerful rubber flat belt imported from Swiss, its service life raised greatly, which is 10-20 times of common belt, and use of imported electrical appliances. Characteristics The partial paper feeding adopts the monomer structure, it is extremely convenient to assemble and disassembleAdopts the integral sealed glue box, so as to make glue not easy to evaporate and move convenientlyThe move row adopts the two-way screw rod to adjust faster and in simple wayThe transmission adopts the synchronous belt and mast top, accurate, ensure to paste box of perfect qualityPre-folded function can develop the production efficiency; form a complete set with the automation packingThe press and delivery part can move front and back, so as to provide the convenience to wine box and long boxThe photoelectric counting, automatic kick board are assort, accurate and convenient.

Gaur Trader is a specialized Exporter, Importer, and Supplier of Fully Automatic Rigid Box Making Machine. This Fully Automatic Rigid Box Making Machine belongs to reputed OEM, trusted its high quality and matchless performance. We are committed to offer Fully Automatic Rigid Box Making Machine at reasonable price. SpecificationsPacking SizesA=width B=lengthAmin150mmPacking Paper Min100gAmax580mmMax160gBmin180mmPaperboard ThicknessMin0.8mmBmax660mmMax3mmBox SizesL=LengthW=WidthH=HeightLmin125mmSpeed20-25pc/minLmax400mmPacking paper pipe height260mmWmin85mmPaperboard pile height1000mmWmax300mmpower20kwHmin20mmGlue drum capacity 45LHmax125mmAir supply12L/minInner Edge Packing : RRmin10mmMachine weight8tonsRmax35mmdimensions6.8*4.2*2.6

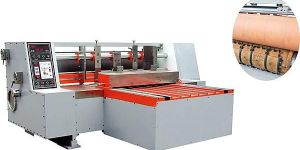

The company is a prominent Corrugated Paperboard Die Cutting Machine (ZM Series) Exporter in Punjab (India). Corrugated Paperboard Die Cutting Machine (ZM Series) has many good characteristics such as high quality slicing, excellent speed, easy operations, and so on. Our Corrugated Paperboard Die Cutting Machine (ZM Series) is offered at affordable price range. Description This series of machine adopt double rollers moving rolling pressing type, to make low, middle, high corrugated paperboard once to finish slicing line, slicing corner, rolling line pressing trace, hitting hole, hitting button orders and so on. This machine adopts vacuum adsorption, which helps carrying paper. The main machine’s electromagnetism adjusts speed. Corrugated Paperboard Die Cutting Machine (ZM Series) has model slicing and phase powered 360° adjusting. The speed of glue rolls automatically giving. At the same time, it set up the computer program and glue case repaired equipment.

Corrugated Paperboard Die Cutting Machine (LM Series) adopts chain and double roller cycle roll. The Corrugated Paperboard Die Cutting Machine (LM Series) takes carton piece through many working procedure of disport, roll line, cut horn, hit especial hole, etc. The company is a prominent Corrugated Paperboard Die Cutting Machine (LM Series) Exporter in India. Description This machine has grind cut E style corrugating cardboard, glue roller line speed auto repair, glue sheath restore function, and grind roller 360 with electric adjust. It has grind high nicety and operation convenience and glue sheath using long life and low cost.

We are reckoned as a prominent coal gasifier exporter in india. The coal gasifier, offered by us, is high in performance and thus highly demanded amidst the global customers. Our coal gasifier is designed as per the set industrial standards. Our coal gasifier is available at the most competitive prices. known for efficiencylonger working lifenew technologylower maintenance

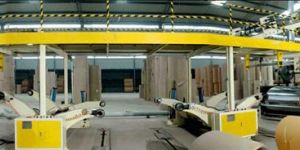

Gaur Trader offers a complete range of 3ply, 5ply and 7ply Fully Automatic Corrugated Board Making Plant for higher speed starting from 100mmin to 300m/min or so on. Looking the aspects of Industrial Automation, we present Automatic Corrugation Plant for high production and less labor for domestic and overseas market. With computerized control machines, we offer Production Control System with whole line. In various deckle like starting from 1600mm, 1800mm, 2000mm, 2200mm, 2500mm and 2800mm. This 3ply, 5ply and 7ply Automatic Corrugation Plant is being imported from CHINA, TAIWAN, SPAIN etc. Completely with fingerless single facer machine further quality of board is unmatched achieve. On full turn key base. Accessories, bearing, belt and other related equipment are totally from Taiwan and Japan make.
