Insulating Material Corporation Kandivali West, Mumbai, Maharashtra

We are counted among the trustworthy Importers & Suppliers of Triple Insulated Wires in the domestic market. The company has installed a physical facility for manufacturing these wires in several grades and ratings for furnishing variegated demands of the buyers. Further, our Triple Insulated Wires are obtainable in different packaging sizes. Our prices are also quite nominal.   The Benefits For Triple Insulated Wire are : Rolled Coil easily. High voltage insulation, could save insulating tape, insulating interlayer. Eliminates the need for the creepage margin. Superior wear resistance for high speed automatic Transformer winding line. Three layers of insulation protection, there is no pinhole phenomenon. Self Solderable So No Striping Requird. Size of The Transformer Can be Cut down to 30-50% Due To No Requirement of Interlayer Tapes. Save copper due to less number of turns required after eliminating insulating tape & interlayer. Intercourse Wear More Than 250 Times. Triple insulated wire Ranges From 0.16 TO 1.00 mm. Features Consist of three layers of insulation. Completely isolate the primary winding from the secondary winding of transformers. Greatly reduce the size and weight of transformers. Greatly improve the eficiency of the transformers by reducing the distance between coils. Allow to wind directly on the top of enameled wires. Eliminate the interleaved insulation tapes, barriers and insulating sleeves. Solderable without the need of insulation pre-stripping. Can be fast coiled by using an Automatic Coiling Machine. Thermal Resistance Class B (130 C) and Class F (165 C) are available. Self-Bonding type has a self-bonding layer that covers the outer surface. The bobbin can be eliminated and the size and weight or transformers can be further reduced. Litz wire type has high frequency resistance that can sharply reduce the power losses caused by skin and proximity effect and is suitable for high frequency transformers. The Advantages of Triple Insulated Wire are : Rolled coil easily. High voltage insulation, could save insulating tape, insulating interlayer. Superior wear resistance for high speed automatic Transformer winding line. Three layers of insulation protection, there is no pinhole phenomenon. Self Solderable So No Striping Required. Size Of The Transformer Can Be Cut down To 20-30% Due To No Requirement Of Interlayer Tapes Save copper due to less number of turns required after eliminating insulating tape & interlayer. Intercourse Wear More Than 250 Times Triple insulated wire comes in three different temperature gradient : Class E to 120 C Class B to 130 C Class F to 155 C Triple insulted wire Ranges From 0.16 TO 1.0 mm.

Type : Insulated Wire

Application : Electric Conductor, Lighting

Color : YELLOW

Conductor Material : Copper

Packaging Type : Plastic Roll

Grade : JIS, IEC

Conductor Type : Solid

Certification : UL

Insulation Material : Teflon

Certification : UL

Elektrisola specializes in fine enamelled wire diameters, starting with 0.008 mm (8 microns), and going up to a diameter of 0.50 mm Elektrisola offers a wide range of different insulations. Polyurethane has the advantage of easy direct contacting by soldering, while Polyester insulations are more resistant against higher temperatures. Thin top coats as Nylon or Polyamidimide may improve certain desired characteristics like mechanical or chemical strength of the enamelled wire.   Elektrisola produces enamelled wires according to many different specifications. The most important worldwide used specification is IEC, besides NEMA in North America and JIS in Asia.

Color : Red

Condition : New

Application : Lighting, Motors

Grade : Grade1, Grade2

Purity : 99.99%

Feature : High Tensile Strength, Longer Life

Packaging Type : Plastic Roll

Conductor Type : Stranded

Type : Copper Winding Wires

Thickness : 0-5mm

Country of Origin : Malaysia

Grade : Grade1, Grade2

Color : Red

Purity : 99%

Condition : New

Conductor Material : Copper

Packaging Type : Plastic Roll

Brand Name : Chandra Electrical Industries

Certification : UL , ROHS & REACH

Our company’s name figures in the list of reputed Importers and Suppliers of Self Bonding Wires. The Self Bonding Wires we make available are manufactured in compliance with set industrial norms. In order to meet the bulk and urgent requirements of the buyers, we maintain a large stock of the Wires in our state-of-the-art warehouse. Buyers can obtain the Wires at reasonable rates from us.

Material : Copper

Length : 100-200 Mtr

Wire Gauge : 0.04mm to 1.00mm

Speaciality : Perfect Finish

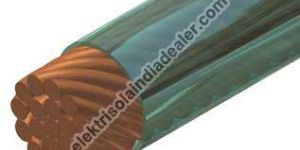

<p>We are reckoned as the prime Importer and Supplier of the ELEKTRISOLA brand <strong>Litz Wire</strong>, based in India. Our Litz Wire is made up of numerous strands of enamelled magnet wire, stranded together. The Litz Wire is used for wide industrial applications and thus it is highly acclaimed by the widespread clients. Our Litz Wire can be availed at the market leading prices.<br /><br /><strong>Applications :</strong></p> <ul> <li>Proximity switches</li> <li>Repeating coils</li> <li>Magnetic loading</li> <li>Power supply units</li> <li>Transformers and choking coils</li> <li>Identification systems</li> <li>Ultrasonic generators</li> <li>Deflection yokes</li> <li>Inductive heating elements</li> <li>Fluorescent lamp ballast</li> <li>Hearing aids</li> </ul> <p><br /><strong>Advantages :</strong></p> <ul> <li>Active customer support nearby</li> <li>High degree of process control</li> <li>Worldwide presence</li> <li>Flexibility and speed in the complete business process</li> <li>Complete production process out of one hand</li> <li>Individual configuration</li> <li>Topical and consumption near disposition strategies</li> </ul>

Feature : Flexible

Material : Rubber

Wire Gauge : 0-5

Diameter : 1-3 mm

Heat Shrink Tubing / Heat Shrinkable Tubing is our specialization and We are one of the leading supplier of Heat Shrinkable Tubing, heat Shrink Sleeves, Heat Shrink Protectors, splice protection sleeves & other heat shrinkable sleeves in India. We offer polyolefin based heat shrinkable sleeves for variety of applications. Our product range includes Splice protection sleeves, heat shrinkable tubing for electrical, electronic, automotive applications, heat shrinkable joints & terminations for all types of cables up to 33 Kv. Features Flexible Zero halogen Flame retardant Low smoke generation if burning Continuous Operating Temperature:-45°Cto125°C Shrink Temperature:120°C RoHS

Material : PVC

Color : Black, Blue, Green, Grey, Red, Yellow

Feature : Dimensionally Accurate, Optimum Strength, Reliability, Smooth Texture

Type : Heat Shrink Tube

Country of Origin : India

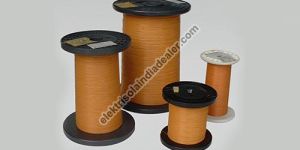

Fully Insulated Wire has high thermal class and zero-defect strengthened insulation. It finds extensive usage in automotive industry. We are one of the prominent Importers and Suppliers of Fully Insulated Wire. It is procured from the most reliable sources of the market. When it comes to delivery, we make all arrangements for quick shipment of Fully Insulated Wire. It can be obtained from us in small as well as bulk quantities.

Application : Electric Conductor

Color : Brown

Conductor Material : Copper

Insulation Material : PTFE

Conductor Type : Solid

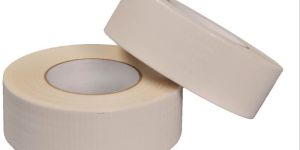

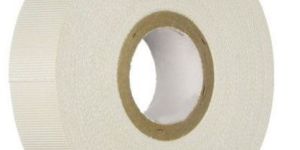

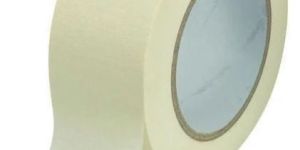

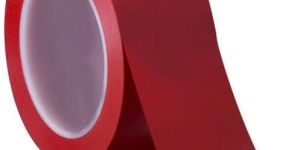

Electrical Tapes Electrical Tapes have been developed from carefully selected backings and adhesive systems. The adhesive used in the manufacture of the tape have been developed with a special formulation to withstand different classes of temperature from Class A-105°C to Class H-180°C and includes Rubber, Acrylic and Silicon based formulations.

Material : Polyester

Color : Yellow, Multicolor

Application : Electricals Use

Feature : High Voltage Resist

Packaging Type : Corrugated Box

Type : Electric Tape

Adhesive : Silicon, Nature Rubber, Acrylic Based

Country of Origin : India
