HIgh Shear Granulator is a multi-purpose processer equally suitable for high speed dispersion of dry powders, aqueous or solvent granulation, and effervescent products and melt pelletization. Wet granulation is a common step in the manufacture of many solid dosage pharmaceuticals. Wet granulation can be accomplished in a high shear granulator.A mechanical impeller moves the powder while a liquid binder is applied onto a moving powder bed. Addition of the liquid binder starts the formation of granules. The granulator also has a chopper. Impeller and chopper are mainly responsible for wet granulation in the rapid mixer granulator.

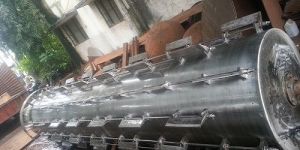

Agitated thin film evaporators and dryers are used to concentrate, refine or recover a valuable product through distillation or similar thermal separation processes. Due to its inherent design features, it is ideal for thermal treatment of solutions and heat sensitive products, where reduced operating temperatures and vacuum operating pressures are desirable. The typical agitated thin film evaporator consists of a tubular heat transfer area with an external heating jacket and a fast-revolving, inner rotor with flexible or rigid wiper elements. The driving speed is adapted to the product being handled, its particular specifications and task.

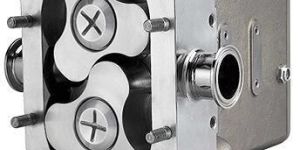

Rotary Lobe Pumps are self-priming , valveless, positive displacement pumps. The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area.

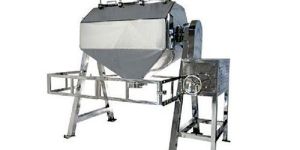

The octagonal blender revolves in end over end fashion, making the products to move in and out of the constricted octagonal areas. This motion of the particles causes multiple folding action that ensures a thorough intermeshing of all the ingredients in the batch. The result is a homogeneous blend regardless of particle size distribution, particle shape or density with a great efficiency.Octagonal Blender consists of octagon shaped body, rectangular central portion and top and bottom polygonal frustum. It is provided with baffles for fast and efficient mixing, charging port and outlet with butterfly valve. It is very useful machinery for pharmaceutical industry where in gentle blending of dry granules or powder is to be done.

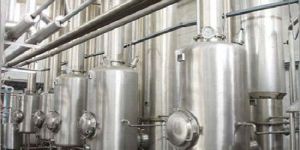

The multiple-effect evaporator combines two or more evaporator bodies to conserve steam, which is condensed in the first-effect heat exchanger only. Water evaporated in the first-effect vapor body is condensed in the second-effect heat exchanger, which provides energy for evaporation in the second-effect vapor body (and so on for additional effects). Vapor from the last effect flows to a condenser. The last-effect vapor body is maintained at a high vacuum with a steam-jet air ejector or mechanical vacuum pump.he driving force is the pressure drop from the first to the last effect. For the same overall pressure differential and process conditions, the evaporator with more effects will require less steam. The evaporation in each effect will be higher for each pound of steam condensed in the first-effect heat exchanger. For the same evaporation rate, a multiple effect evaporator will require less steam than required for a single-effect evaporator.

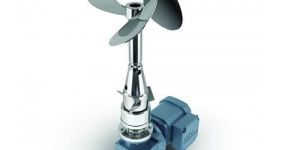

Basically a magnetic mixer is like a conventional mechanical mixer — it has a motor, a driveshaft, and mixing blades that mix stuff in a tank. Technically the term used for the mixing blade assembly in mixers is “impeller.” A propeller on a boat or an airplane is also a type of impeller. Impellers are designed to move liquids or gasses by rotating. What makes a magnetic mixer different from a conventional mixer is that the motor uses magnets to move the impeller. This works by attaching one set of magnets to the motor driveshaft and another set of magnets to the impeller.The advantage of magnetic stirrers is the suppression of sealing technology. The rotation of mixing elements is enabled by a magnetic field creating a touch-less torque transmission.

Capacity : 20,000 liters

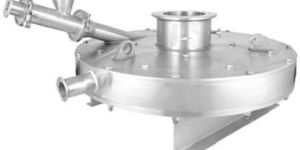

The Air jet mills (fluid energy mills) are widely used in the manufacture of drugs and pharmaceuticals, organic and inorganic Chemicals, agro chemicals, pigments, food colour synthetic dyes, minerals, herbicides and pesticides, thermoplastics and other like heat sensitive , corrosive and abrasive mateials. The air jet mill employs compressed air, gas or high pressure superheated steam to achieve size reduction. These mills have no moving parts , thereby eliminating contamination due to contact with external grinding media. No additional heat is generated in grinding making it the ideal process to grind heat sensitive and fragile materials.

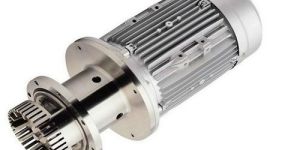

High Shear Emulsifier narrows the particle size of liquid -liquid and solid-liquid materials through external mechanical force and distributes one phase materials into another phase or many other phases evenly to achieve good homogenizing, dispersing and emulsifying result.The high shear emulsifier workhead generates exceptionally high shear rates in a three stage mixinghomogenizing process; The high speed rotor draws materials into the workhead where they are intensely mixed. Centrifugal force then drives the materials to the periphery of the workhead and subjects them to mechanical shear in the precision gap between the rotor and stator.

tubo-link drag conveyor is the latest mechanical conveying option in our product line of mechanical conveyors designed for the dry bulk solids and powder processing industry.The hygienic, heavy duty, totally enclosed, dust-free tubular chain drag conveyor economically conveys dry, hot or cold, powders and granules, particularly fragile materials such as cereals, nuts, coffee beans,Tubo-link Drag Conveyors (TDCs) are mechanically driven conveyors that 'drag' material along the inside of a totally enclosed tube. They are designed to transfer a wide variety of bulk materials from a single or multiple in-feed points to a single or multiple discharge points through various configurations of totally enclosed tubing. TDCs use close-running discs connected by a cable or various styles of chain. They have been used successfully throughout a wide range of industries.

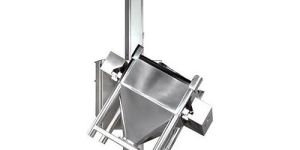

The Bin Column Blender comprises a freestanding pillared structure and a rotating cage for mounting the bin, clamped securely to the pillar. After charging and clamping the bin, the rotating arm begins to rotate at a predetermined speed and duration (optimum speed and blend duration) according to the preset technological parameters.As the symmetrical axes of hopper and the rotating center line of rotating arm form an included angle, materials with different constituents are effectively rolling over in the closed bin and producing high shear to achieve the best effect of blendingmixing.
