Killick Engineering Ltd. Chandivali Farm Road, Mumbai, Maharashtra

They are used for compaction of freshly poured concrete in situ. Killicks needle vibrators are available powered by electric, petrol, petrol kerosene and diesel motors, in sizes of 25, 40, and 60 mm, with larger sizes on request. Rubber shafts are available from 4 metres to 15 metres length. External vibrators are important components for concrete compaction. They are used for shuttering on site and in concrete works producing precast elements. Typical uses are concrete floors, pillars, columns, general formwork vibration both unitary and battery, walls, roofs and roof trusses, beams, girders, railway ties etc. Killicks external vibrators with 3000 vibrations per minute have a long service life and require low maintenance. They are also available in low voltage versions for added safety, along with their accompanying transformers.

Equipment: Single Pull Systems Wire Type – Hydraulic Jack Killick wire Jacks are available in 7 ton capacity, with extension of 250 or 500 mm. They can be operated with a hand or electric pump. They are used for both pre and post stressing. Strand Type – Hydraulic Jack Killick strand jacks are available in 2 models: - Mk III back gripping strand jack with 18 ton capacity and 250 mm stroke J-20 front gripping strand jack with 20 ton capacity and 190 mm stroke. This is also known as strand saver jack. Multi-Pull systems Killicks Multi Pull systems are comprised of  7T13 / 12T13 / 19T13 / 31T13 and  7T15 / 12T15 / 19T15 31T15 anchorage systems, with the matching jacks, pumps, and complete accessories.   Hydraulic Power Pack Available in manually operated and power operated versions for powering hydraulic jacks and other hydraulic equipment.   Motorised Grout Agitator For effective grouting, it is essential that the grout should be agitated continuously in a drum of required capacity. Agitation helps to obtain a colloidal grout before pumping. Killick manufactures agitators for this purpose with stainless steel impellers mounted on a stainless steel shaft, powered by a 1500 RPM, 2 H. P. motor.   Grout Pumps These are used to grout cable ducts in pre-stressed concrete members and for repair and waterproofing of concrete. Killicks grout pumps are available in three models - Standard, High pressure and Electrically-operated.

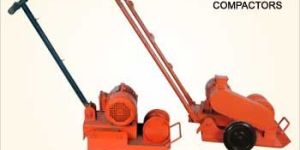

Applications: Killicks compactors are suitable for all types of soil and sub-grade as well as broken rocks, earth gravel, slag, chips, dry concrete, bituminous coarse base, backfills, plinth fillings, embankments, foundations, bridge abetments, railway track, repair of patches, manholes, level crossing, godown or factory floors, ramps, runways, platforms, salt pans, road shoulders, earth filling for pipe, cable laying, sheets and piling structures, under floor, canal banks, trench, beds etc.   Salient Features of compactors: High working speed at low cost. Maximum depth effect. Easy to operate and less maintenance. Easy change of amplitude & frequency to suit different soil conditions. High compaction capacity. Light in weight. Robust in design and construction. High gradient capacity. Self propelled. Vibration proof steering handle. Maintenance free except for routine oil change and air filter cleaning.

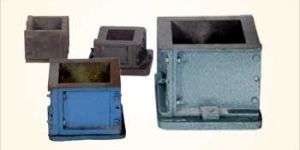

70.6, and 50 mm sizes. CUBE MOULD 150 mm and 100 mm: The height of the mould and the distance between opposite faces is the specified size + 0.2 mm. The interior faces of the mouldare plane surfaces with a permissible variation in finish of 0.03 mm. CUBE MOULD 70.6 mm: The height of the mould and the distance between the opposite faces is 70.60 mm + 0.15-0.10 mm. The interior faces of the moulds are plane surfaces with a permissible variation in finish of 0.15 mm. CUBE MOULD 50 mm: The height of the moulds and distance between the opposite faces is 50 + 0.1 mm. The interior faces of the moulds are plain surfaces with a permissible variation iri finish of 0.02 mm. The base plate having a plane surface machined to a tolerance of 0.1 mm. and made of non-corrodable material.

Elastomeric Bearings: Also known as Neoprene bearings, these are used as load bearing pads in bridges, aqueducts, chimneys, nuclear domes, jetties, water tanks, industrial structures, building and machine foundations etc.   POT CUM PTFE Bearings: Sliding bearings are generally used where larger structural movements are anticipated or when the horizontal movement is accommodated with a minimum stress transmitted to the structure. There are a variety of sliding bearings that can be combined to give a complete support. The basic element of the sliding bearing is a PTFE sheet (Polytetrafluoroethylene) confined to the base material (which is generally mild steel) by the process of bonding. A polished stainless steel plate welded to the underside of the top plate sides over the PTFE sheet, such units in different combinations are commonly used in bridges, viaducts, and a wide variety of other structures.

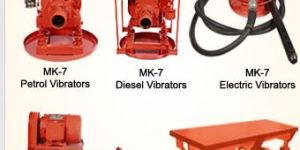

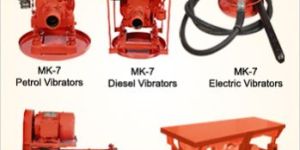

Immersion/Needle Type Vibrator: They are used for compaction of freshly poured concrete in situ. Killicks needle vibrators are available powered by electric, petrol, petrol / kerosene and diesel motors, in sizes of 25, 40, and 60 mm, with larger sizes on request. Rubber shafts are available from 4 metres to 15 metres length. Shutter/External Type Vibrator: External vibrators are important components for concrete compaction. They are used for shuttering on site and in concrete works producing precast elements. Typical uses are concrete floors, pillars, columns, general formwork vibration both unitary and battery, walls, roofs and roof trusses, beams, girders, railway ties etc. Killicks external vibrators with 3000 vibrations per minute have a long service life and require low maintenance. They are also available in low voltage versions for added safety, along with their accompanying transformers. Screed and Platform Type Vibrator: For vibrating concrete in flat areas like slabs, pavements, roads, factory/warehouse floors, precast works etc. Available powered by petrol, diesel, and electric motors.Table Type Vibrator: For producing concrete sections in moulds on a large scale, for industrial use and in compacting and packaging of powders in cartons, tins etc.

The KILLICKS Standard Grout Pump is a simple but efficient low cost equipment ideally suited for grouting cable ducts in small and m e d i u m s i z e d p r e s t r e s s e d concrete members. It is a hand operated stirrup pump of the diaphragm type in which grout is drawn up the suction pipe past a simple non return ball valve, and on the pressure stroke is driven forward into the feed hose through 'a similar non-return valve. Site trials of grouting of ducts in normal beams have shown that the KILLICKS Standard Grout Pump can supply 130 liters of neat cement grout per hour of pumping time, which means it is a pump having a fairly large capacity. The maximum working pressure is 3 Kgcm2 (40 psi).
