Master Controllers
Get Price Quote
Cam type, Contacts get actuated by Cams on operating sequence, shaft to the desired sequenceand are wired to contactor panel. IP41 & IP54enclosur. Options feature like dead means handle,spring return and twin controllers can be supplied.Long Life, Simple Maintenance, Wide ElectricalClearance.Size-1 upto 6 contacts.Size-2 upto 12 contacts.Size-3 upto 18 contacts.Size-4 upto 24 contacts. Application The following arrangements show the most common ways of installing the reels. For other applications please consult our technical sales department.
Crane Master Controller
Get Price Quote
Type : Master Controller
Application : Crane
Color : Blue
Feature : Durable
Finishing : Powder Coated
Country of Origin : India

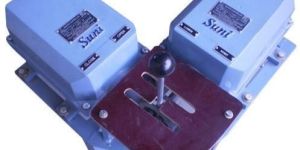

Description: We are well reckoned as the most preeminent Master Controller Manufacturer and one of the leading Suppliers of the same. Suni Master / Cam controllers are made in IP 54 enclosures. the cover is of cast Aluminum. Also the base and cover of Crane Master Controller have machined surface to protect the controller against dust. The Master / Cam Controllers are provided with an easily removable cover having ample area for easy maintenance. The cam shaft on which the cams are fitted is mounted in the housing on moulded bushes of synthetic material which are fixed to the front and rear walls by means of screws. The cams which are fitted on the cam shaft are moulded from the highest quality synthetic material and are accurately cut to correspond to the switching sequence and number of steps required by the customer. The controller is operated by means of a joystick handle which rotates the shaft on which the cams are fixed. These cams which are cut as per the sequence required open and close the fixed and moving contacts which in turn operate the required Contactors in the panel provided by the customer. Contact body of Mill Duty Master Controller is made of high grade melamine which is capable of one auxiliary contact of two contact block (1 No. + 1 NC) operated through a spring loaded push button provided on joy stick handle. The Master / Cam Controllers can be provided with spring return arrangement whereby handle returns to be neutral position when it is released. The contacts have a maximum continuous Current capacity of 40 amps AC. The contact tips are made of high grade Silver Cadmium Oxide alloy.
Best Deals from Master Controller
Master Controller
Get Price Quote
Application : Winches and Conveyors, Rolling mills, Sugar, Mining, Cement, Textile industries to name a few. Brake
Frequency of operation : 1000 switchings per hour.
Rated voltage : 500 V.
Thermal test current : 10 Amps.
Body material : Aluminium / CI casting.
Mounting position : Vertical
Master Controller
Get Price Quote
Master Controller is housed in an enclosure and provided with an easily removable cover with ample area for maintenance. The cam shaft is mounted on bearing bushes on the walls of the housing.
Master Controller
Get Price Quote
We are counted among the famed Fps Master Controller Exporters from Andheri East, Mumbai. We offer Master Controller of best quality. The Master Cam Controller is used for remote operation of contractor’s equipments. They are basically used to control E.O.T. Cranes & Rolling Mills drives. They are made in enclosure that is dust proof. They are available in different models and special optional spring return arrangement and Dead man’s handle arrangement are available. We also offer customized controllers. Features Available in IP-41/ IP-54 with degree of protections up to 6 notches on either side with a maximum of 24 contacts
Master Controllers
Get Price Quote
“STERLING” Master Controllers are vertical mounting cam operated sequence switches for use in conjunction with contactor equipment These controllers have been specially developed for frequent operation under the most severe conditions. They are suitable for most Motor drives such as Rolling Mills, Cranes and other applications demanding frequent operation and trouble free service with limited time available for routine maintenance. We sterling controllers like many other Manufacturers of Master controllers which are exceptionally light in operation with consequent reduction in operational failure. The contact is a single integral unit and independent of the main cam shaft. The contact tips are bimetallic and can be replaced without disturbing any connections. The entire contact assembly is secured by 2 screws only and it can be removed easily to facilitate maintenance/replacement. ENCLOSURES: These Controllers have sheet steel enclosures and are wall fixing as standard. Special mounts can be provided to suit customer’s specific requirements. Operation: Operation is by Ball handle and normally provided with spring return. Operating sequences are standard and special sequence can be catered for. The number of steps and cams can be varied to suit customer’s requirements.
Master Controller
Get Price Quote
We provide the customers with high grade Master Controller that complies with international quality standards. This Master Controller provided by the company brings repeated orders from the esteemed customers. We are reckoned as the prominent Master Controller Manufacturers, Exporters and Suppliers in India. Manufactured using materials of high quality, our Master Controllers are being supplied to numerous companies across the world. Attributes : Perfect opening and closingAGCD rating Silver tipsCurrent : 20 to 40 AmpHighly reliableManufactured using quality raw materialSmooth operationHigh performance Fabricated From : Reinforced sheet steelAluminum
Master Controller
Get Price Quote
Master Controllers are used for operation of contractor’s equipment controlling E.O.T. Cranes & Rolling mills drives. The controllers are made in dust proof enclosure in IP-54 degree of protection, up to 6 notches either side with maximum 24 contacts as per desired sequence with spring return arrangement & deadman's handle arrangement are available. Master Controllers are compact up to 4-0-4 step suitable for Hoist, Grab, CT-LT maximum contacts 16 per motion with spring return arrangement.
Master Controller
Get Price Quote
Brand Name : SOC
Protection Degree : IP-44/IP-54
Port : NHAVA SHEVA
Body Material 1 : Sheet Steel
Packaging Details : As per Buyer Requirements
Body Material : Aluminum Die Cast
Supply Ability : 1500 Unit/Units per Month
Contact Material : Silver Cadmium
Mounting Position : Vertical/Horizontal
Master Controller
4,000 - 15,000 Per Piece
Type : Master Controller
Material : Sheet Steel / Aluminium
Application : Crane
Voltage : 500 V.A.C.
Condition : New
Thermal Test Current : 10 Amps
Mounting Position : Horizontol / Vertical
Frequency of Operation : 1000 switching per hour
Master Controller
Get Price Quote
Body Material : M.S sheet
Enclosure : IP-44/IP-54
Mounting Position : Horizontal/Vertical
Rated Voltage : 500 V
Cable entry : 2x 20 / 2x26 Conduit
Thermal Test Current : 10 amp
Frequency of operation : 1000 switching per hour
No. of contacts : 24 maximum
No.of step : 6-0-6 maximum
Optional arrangement : Spring return/deadman’s Handle
Contact Material : Silver Cadmium
Master Controller
Get Price Quote
Finishing : Polished
Digit Display Size : Single Display
Material : Steel , Brass
Feature : Resistance against corrosion,Low maintenance,Corrosion resistance
Packaging Type : Cartons, Boxes
Packaging Size : Individual pieces per box
Number of Knobs : 1
Knob Material : Bakelite
Master Controller
Get Price Quote
Master Controller, Indicating LED Lamp, Thruster Brake, Shrouded Bus Bar
Master Controller
Get Price Quote
Master Controller, Street Light Controllers, MCB Channels, Wall Switch Plate
Master Controller
Get Price Quote
Master Controller, Thruster Brale, thruster drum brakes
Aluminum Body Master Controllers
Get Price Quote
Aluminum Body Master Controllers, Crane operator cabin
Master Controller for Electrical Industry
Get Price Quote
Master Controller for Electrical Industry, Rotary Geared Limit Switch
Master Controllers
Get Price Quote
Master Controllers, Crane Wheel, EOT Crane Maintenance Service
Master Controller
Get Price Quote
Master Controller, dental compressors, Air Dryer for Industrial Process
