Close Type Mechanical Seal
375 Per Piece
100 Piece (MOQ)
Centrifugal Pump Conical Spring Seal
1,000 - 2,000 Per
1 Set (MOQ)
Best Deals from Spring Seals
Single Spring Seals
Get Price Quote
Multi Spring Slurry Seals
12,500 Per Pcs
1 Piece (MOQ)
Capsulated Spring Seals
1,200 Per Set
1 Piece (MOQ)
Capsulated Spring Balanced Mechanical Seals SEAL Type SSI-22 Capsulated Spring Seals are a cost effective version of a Balance seal The feature the same rugged and reliable construction as the un balance seal. Capsulated Balanced seals designed for media containing solid slurry particles. The springs are protected from solidifying media resulting in high reliability of the seal. This seals are independent of direction of rotation.
Multi Spring Mechanical Seal
1,385 Per Piece
10 Piece (MOQ)
Wave Spring Seal (LIE/711)
Get Price Quote
Wave Spring Seal (LIE/711) : This seals are single wave spring has been designed suitable for most general application. These seal can be also used in dirty application as springs clogging do not take a place. These is no sticking or clogging making the design rubbed and reliable. Major advantage of this seal is that it is compact, axial length but no sticking or clogging. It reduced length of seal and no any spring clogging which help for long lasting of seal.
MSOP/C 160 Multi Spring Out Of Product Cartridge Seal
Get Price Quote
1 Piece (MOQ)
Multi Spring Out Of Product Cartridge Seal MSOP/C 160 Series is a multi spring cartridge construction factory assembled slide on seal specially designed and developed for slurry application. The springs are protected from the media by means of dynamic O ring. This seal requires tightening of stuffing box studs, nuts and detaching of location plate before starting the equipment. No dimensional measurement are to be done at site. Seal can be easily installed by a unskilled person. Seal Components/Face: Carbon / Ceramic Carbon / Silicon Carbide Silicon Carbide / Silicon Carbide Tungsten Carbide / Tungsten Carbide Secondary Seal : Elastomers Metal Parts: SS304, SS316, Hastelloy-C Seal Characteristics: Single Acting Balanced Springs are Outside the Media Independent of Direction of Rotation Stable Drive-pins/Lugs No Shaft Fretting

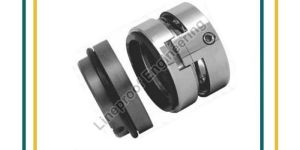

Wave Spring Seals
3,000 - 6,000 Per piece
5 Piece (MOQ)
WAVE SPRING SEALS Wave Spring Seals are designed for bi-directional use and work with highly viscous, abrasive media, water, oils, fuels, light aggressive chemical substances and liquids containing solid particles. Most of the components are interchangeable, hence it proves economical and easy to maintain. All components are held together by snap ring which helps in easier installation and removal. Industrial Application: Sugar, Waste Water, Oil Refinery, Paper & Pulp Industries etc. Face Materials: Tungsten Carbide, Carbon, Silicon Carbide, Ceramic, Special Cast. Metal Component: S.S 304, S.S 316. Secondary Seal: Viton, PTFE, EPDM, NBR, FKM. Operating Limits: Pressure : 16 bar Temperature : -50˚C to 250˚C Speed : 20 m/s
Multi Spring Seals
Get Price Quote
Multiple Spring Balanced Seal
Get Price Quote
Hi-tech machines and assistance of our packaging experts help us in meeting the standard as well as customized packing needs of the customers. Moreover, we check the entire lot before making the final dispatch. We have a good rapport with the leading names in the industry from whom we source the basic material, required for manufacturing superior grades products. Features : Sturdy material Precision made Industrial application
CS8 Conical Spring Seals
Get Price Quote
1 Container (MOQ)
Conical spring mechanical seal with O-Ring in rotating and stationary parts.Characteristics Unbalanced Mechanical Seal. Dependent on direction of rotation. Operating Limits p: <12 Bar ; V: <15 m/s T: -40 / +180ºC Temperature is based by material selection. Operating limits are based on PV factor.
Conical Spring Unbalanced Seals
Get Price Quote
In order to produce quality products, we make use of superior grade raw materials. Our quality auditors strictly check the raw materials against varied quality parameters before procurement. With our strong distribution network, we efficiently distribute goods to the desired place. Operating Limits : Pressure - 10 bars (Max) Temperature - (-)20c to (+)180c Speed - 2900 rpm (Max) Sizes - 10 mm to 100 mm Material - Seal Face - carbon, Silicon, Cerantic, TC Secondary Seals - Viton/PTFE/GFT Metal Parts - ss 3'16, 904 L. A tov 20
Reverse Balanced Spring Seal
4,300 Per Piece
We are a quality centric company and have established a modern warehouse that is equipped with an up-to-the-minute inventory control system. This has helped us in maintaining the quality of the products for a longer time. Working in close coordination with the genuine logisticians, we dispatch the products in the dedicated time. Specifications : Shaft Q - 10 to 100 mm Pressure - Up to 10 Bars Temperature - -20 to 180ºC Speed - Up to 25 m/s

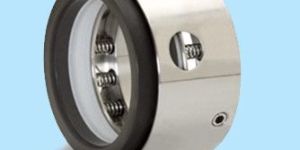

Multi Spring Seal
4,500 Per Piece
1 Piece (MOQ)

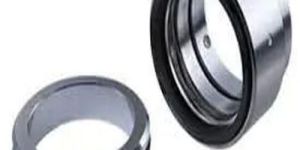

Wave Spring Mechanical Seal
Get Price Quote
We are offering Wave Spring Mechanical Seal. Applications Generally used for handling highly corrosive chemicals, high temperature applications, petroleum refinery etc. Operating Limits Shaft Dia. : 18 to 100mmPressure : up to 25 BarsTemperature : -50 to 220 C.
Single Spring Seal
Get Price Quote
100 Set(s) (MOQ)
We offer single spring seal. These seals function independent of direction of rotation. Special material can be offered to meet specific requirements. Its non-clogging, single coil spring provides greater dependability than multiple spring design. These seals function independent of direction of rotation and is designed for reducing the operating costs and eliminating the product contamination.
KMJ 5 Multi Spring Seal
Get Price Quote
We are supported by a team of quality auditors who make sure the product compliance in tune with the set quality standards. Sourced from trustworthy vendors, our entire lot of raw materials has been cross checked against varied quality parameters before using them in the production process. Feature : Short Unit Balanced Dimension Range - 14mm to 100mm Temperature Range - 185oC MAX Faces - SIC, TC, Carbon Elastomer - Viton, EPDM, Kalrez, Nitrile.
Single Coil Spring Balanced Seals
Get Price Quote
We manufacture, export and supply durable and precisely engineered Single Coil Spring Balanced Seals. These seals are applied in corrosive & viscous fluids application, sulphuric and generally handle by high temperature pumps. We offer Single Coil Spring Balance Seal in different types such as cs11, cs11r, cs11bb, cs11br, and cs4. Our seals are demanded in industries like oil & refinery, fertilizers nuclear plants, and petroleum pipelines. AES : p08, p080, t01, t02
Multi Spring Balanced Type
Get Price Quote
The GCC 101-B series are balanced types seals designed to handle higher pressure applications with the same versatility and reliability as GC 10 I-type. To accommodate the series, a step must be provided on the shaft sleeve to permit a design technique of balancing off some of the hydraulic forces which tend to overload the seal faces. Application The mediums are all types of rotating equipment, pumps, mixers, agitators and compressors. To suit industries such as general chemical, oil refining, petrochemical, pharmaceutical, food processing, pulp and paper and waste water treatment.
