Voltage Tester
Automatic Oil Breakdown Voltage Testers are highly precise instrument, which can be used to conduct either a breakdown voltage test or do a proof (withstand) test. Usual available automatic test sets only perform the former function, but PE-AOBDV-AM can do both.
Feature : “Most accurate test set”. 1% BDV Accuracy. 0.01kV BDV resolution
...more
TUNABLE RESONATING INDUCTER
The tunable resonating inductor is an essential accessory used in conjunction with Capacitance and Tan-Delta test sets to expand the capacitance range of the test sets .The tunable resonating inductor is connected in parallel with the internal power supply of the test set and the test object. Tuning the resonating inductor varies the inductance to tune the parallel circuit for minimum resistive load current to be taken from the source, while a majority of inductive current negates the capacitive current requirement of the test object.The tunable resonating inductor is epoxy molded to avoid effect of atmospheric conditions on the insulation capacity of the coil. The body comprises of a welded steel frame with thick Aluminum panels designed to keep the weight low but withstand the rigors of field operation. TRI series can also be connected to Hipot HV units, in similar configurations, with necessary changes in a few connections so as to be able to reflect correctly on the current measuring modules and overcurrent protection on the main units. FEATURES - For use along with Capacitance & Tan-Delta test sets & Hipot test sets to expand range of measurements for large capacitance objects like Rotating Machines (Generators & Motors) and XLPE HV Cables- Reduces HV Power Source capacity needs by almost 90%- Eliminates need for multiple fixed reactors in parallel and need for know-how of approximate capacitance before testing. Provides optimum power balance- Designed to be compact and light-weight to be transported for field testing- Dual-spindle gear mechanism with auto-balancers for variation mechanism ensures smooth operation through-out its usable life- Available in voltage variants of 12kV, 15kV and 30kV- Available for compensating Capacitances from 0.05uF to 3uF- Indicator level indicates position of variable arm, and also approximate capacitance- HV-shielded cables and connectors, for safe operation.- Large heavy duty rubber lined wheels for noise-less movement thro shopfloor. Locking arrangement also provided. APPLICATION Capacitance and dissipation factor “power factor” testing is used to determine the quality of electrical insulation. Hipot testing is done at higher than service level voltages to ensure that insulation can withstand service level conditions for a longer period of time without significant deterioration. The insulation characteristics may degrade during usage due to temperature variations, contamination, moisture ingress, partial discharge or normal aging. Tan-Delta measurements are used to detect these problems before complete insulation breakdown occurs. It is necessary to perform periodic Power Factor checks on insulation of all types of HV/EHV equipment in service, or those which are intended to be put in service. While the C&DF test sets available in the market can typically cater to the power sourcing requirement (< 3kVA) that will be demanded by certain test objects like Transformers, Bushings, CTs, PTs, etc, there are certain high-capacitance objects like large Motors, Generators, Cables that typically have capacitance levels ranging from 0.05uF to 1uF or some typically long cable runs even having up to 3uF!
...more
Tan Delta Test System
Surge Comparison Testers
Resistivity Tester
PE-AORDF-1 Fully Automatic Oil Resistivity & Tan-delta tester is a 2-pc unit, consisting of Heater unit and Measuring Bridge. The Stainless Steel oil cell is to be mounted inside the Heater unit. Measuring Bridge consists of AC/DC high voltage supply, Tera-ohm meter, and precision electronic bridges to measure & derive the readings forResistanceResistivityCapacitancePower FactorTan-deltaWatt-lossDielectric ConstantTemperature Oil suffers from electrical and mechanical stresses while a transformer is in operation. In addition there are contaminations caused due to chemical interactions with windings and other solid insulations, catalyzed by high operating temperature. As a result the original chemical properties of Transformer Oil changes gradually, rendering it ineffective for its intended purpose after many years. Hence this oil has to be periodically tested to ascertain its basic electrical properties, and make sure it is suitable for further use, or necessary filtration/regeneration has to be done. Testing of DC resistivity and Tan-delta/Dissipation-Factor of such insulating Oils is one of the most critical tests to determine the Oil condition. Power Electronical provides instruments to achieve this objective of accurately measuring the Power-Factor and Volume Resistivity of Insulating liquidsPre-programmed international test methods compliant toASTM-D924-04 l ASTM-D1169 l VDE-0380-2 l IEC-60247 l IEC-61620 l BS-5737 FEATURES - Complete automatic test procedure. Once test voltage is selected, it applies excitation to the 3-terminal Oil cell, measures R, C, DF, F, V, and then displays and prints the results on integrated printer- High Accuracy, Best resolution in its class- Pure Sine test operation for AC measurements and
...more
OIL RESISTANCE AND OIL TAN-DELTA TESTER
PE-ORDF-2 Oil Resistivity & Dissipation Factor Test set is a combination of 3 instruments, which can be applied to measure Resistance & Tan-delta of the Oil under test. The Volume Resistivity of insulating oil is derived from the measured value of Resistance. It is 3-piece set, consisting of the Heater unit (and Stainless Steel oil cell), Million-mega-ohm meter, and the Dissipation Factor bridge to derive the readings. The Insulation resistance testing instrument is available in max test voltages of 500V DC and 1000V DC, and can be ordered accordingly. Voltages lower than them are available to be set from the front panel via the selector switch FEATURES - Wide measurement range- Completely solid state circuitry, hence drift-free operations- Completely protected against all overloads and short-circuits- Suitable for testing “Earthed” samples- High power coil heating, precision point control implemented- Adjustable temperature from ambient to 150 deg C- Separate visual push buttons for “Charge” & “Discharge” for rapid and safe testing- Can implement testing as per ASTM D924, IEC60247, IS6262/6103 test methods
...more
Oil Dielectric Analyzer
Oil Breakdown Voltage Tester
MOTORISED OIL BREAKDOWN VOLTAGE TESTER
PE-OBDV series of Oil Breakdown Tester are available in a variety of maximum test voltages, denoted by their suffixes in kV. Suffix M060 means – 0-60 kV AC (max BDV voltage) Suffix M080 means – 0-80 kV AC (max BDV voltage) Suffix M100 means – 0-100 kV AC (max BDV voltage) PE-OBDV-6 is a precise instrument, which is applied to accurately measure the dielectric breakdown voltage of the Oil under test. It consists of the high AC voltage generating unit, and the Oil vessel (as per applicable standard) FEATURES - Smooth operation from zero potential to FSV with motorized operation. Tests at power frequency itself.- Accurate trip current- Precise HV trip Voltage measurement, Voltage hold after trip- Non-contact magnetic stirring - Digital display output - Epoxy coated, long life HV transformer for reliable life-long operation- Open Ground interlock, Reset interlock for equipment protection- HV chamber interlock, Zero Start interlock, Overload & Short-Circuit interlock for operator protection- Can be used to test specimen as per IS 6792, IEC 60156
...more
Million Mega Ohm Meter

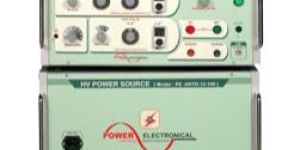

MANUAL CAPACITANCE AND TAN-DELTA TESTER
POWER ELECTRONICAL’s Manual Capacitance and Tan-Delta Test System (Model HVTD-12/100) has inbuilt HV Power Source, Standard Capacitor (SF6 Gas Filled), and set of cables. The compact design of the system uses the principle of three winding differential transformer on a high permeability mu-metal core to measure the Capacitance of the object and its Tan-Delta value accurately. The Capacitance & Dissipation Factor (Tan-Delta) Test System is contained in a sturdy metallic housing with mu-metal lining which shields it from external electromagnetic & electrostatic influences. Built-in battery powered Null indicator makes the system suitable for operation in workshop, factories, High Voltage Switch Yards etc. It is suitable for both grounded as well as ungrounded objects. The system is provided with High Voltage Protection Devices which protect the system and operator against failure of test object or standard capacitor. FEATURES - 12kV 100mA - Tan-Delta accuracy of 1 X 10 -4 - Low Dissipation factor Reference Standard Capacitor of 1 X 10E-5 - UST, GST and GSTg testing modes- Open Ground Indication - HT Cut- off on overload. - All operating controls are at earth potential APPLICATION - Transformer testing - Testing Bushings, CTs, PTs, etc at substations- Testing Rotating machines (LV Motors/Generators) on-site
...more
MANUAL CAPACITANCE AND TAN-DELTA TESTER
POWER ELECTRONICAL’s Manual Capacitance and Tan-Delta Test System (Model HVTD-12/100) has inbuilt HV Power Source, Standard Capacitor (SF6 Gas Filled), and set of cables. The compact design of the system uses the principle of three winding differential transformer on a high permeability mu-metal core to measure the Capacitance of the object and its Tan-Delta value accurately. The Capacitance & Dissipation Factor (Tan-Delta) Test System is contained in a sturdy metallic housing with mu-metal lining which shields it from external electromagnetic & electrostatic influences. Built-in battery powered Null indicator makes the system suitable for operation in workshop, factories, High Voltage Switch Yards etc. It is suitable for both grounded as well as ungrounded objects. The system is provided with High Voltage Protection Devices which protect the system and operator against failure of test object or standard capacitor. FEATURES - 12kV 100mA - Tan-Delta accuracy of 1 X 10 -4 - Low Dissipation factor Reference Standard Capacitor of 1 X 10E-5 - UST, GST and GSTg testing modes- Open Ground Indication - HT Cut- off on overload. - All operating controls are at earth potential APPLICATION - Transformer testing - Testing Bushings, CTs, PTs, etc at substations- Testing Rotating machines (LV Motors/Generators) on-site
...more
Insulation Resistance Testers
High Voltage Hipot Tester

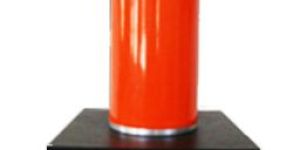

HIGH-VOLTAGE GAS FILLED STANDARD REFERENCE CAPACITORS
Insulated Standard Capacitors are indispensable in every modern high-voltage laboratory and test field where it occupies a wide range of important functions. The SF6 insulated standard capacitor is used as Capacitance standard in measuring bridge circuits to measure the Dielectric Dissipation Factor (Tan-Delta) of all types including cables, capacitors, bushings, instrument transformers and power transformers. Further-more, It can be used as high-voltage capacitor for voltage divider circuits for high-voltage transformer test. Power Electronical’s standard capacitor’s insulation is of the highest accuracy and reliability. The result reflects a true advantage in high voltage measurements especially at high humidity levels. The SF6 insulated Standard Capacitor is also used in conjunction with our Capacitance and Tan Delta measuring bridges (e.g. PE-ACDF-1, and PE-MCDF-6 ) as a comparison standard for exact measurements of the Capacitance and Tan-D of HV equipment like cables, transformers, bushings, capacitors, etc. The capacitor is provided with a top electrode which allows partial discharge free interconnections to the other elements of the HV circuit. The SF6 insulated standard capacitor is designed for indoor service and is portable. The standard capacitors of the SCGF series are used for:* Exact measurements of the capacitance and tan delta* Exact measurements of AC voltages (AC divider) SPECIFICATIONS Rated Voltage – 5kV…500kVTest Voltage – 120% of rated High VoltageCapacitance – 50 pF…1000pF + 1%Tan-Delta < 1 X 10-5 (0.00001 or 0.001%)PD level < 5pC
...more
Electrical Tester
We have a very wide range of Hipot Test equipments ranging from 500V to 500kV, available in power ratings ranging from 100VA to 100KVA. The control panel can be customized for different applications as per customer needs, while the HV system measurement accuracy and Operator and Equipment safety remains uncompromised Power Electronical’s PE-HVT-1 series of Automatic Hipot testers are build to test the Breakdownflashover voltage of Insulation Dielectric, while ensuring that the user safety is never compromised. These testers are completely Automatic in operation…just programselect the test sequence…press Start…and the entire procedure is completed automatically including the Reset operation and printout! Power Electronical Hipot testers come in the largest variety of options AC, DC, AC&DC, and in a variety of Voltage (0-500kV) and Current (0-500mA) levels, to cater to different requirements of customers.
...more
Dielectric Analyzer
Warranty : 1 Year
DC Resistivity Bridges
To be used in conjunction with Oil Tan-delta (Dissipation Factor) and DC resistivity bridges (PE-AORDF-1 / PE-ORDF-2)Insert oil cell 2kv closed type OIL CELL 10KV SPECIFICATIONS Material – Stainless SteelInsulation Material – TeflonMax test voltage - 12000V AC / 10000V DCCell Capacitance – 55pF + 5%Cell Volume – 50ml (approx)Max Operating Temp – ambient
Material : Stainless Steel
Insulation Material : Teflon
...more
Capacitor
SF6 Gas filled Standard Capacitor : 100 pF Power Electronical Manufactured SF6 Gas Filled Standard Capacitor . This calibrator is capable of calibrating capacitance up to 100 pF and Tan delta is up to 1 % and applied voltage is 10 kV. Measurement capability of this calibrator is 0.05 % for Tan delta and 0.17 pF of capacitance. SF6 Gas filledStandard Capacitor : 1000 pF Power Electronical Manufactured SF6 Gas Filled Standard Capacitor . This calibrator is capable of calibrating capacitance up to 1000 pF and Tan delta is up to 10 % and applied voltage is 5 kV. Measurement capability of this calibrator is 0.05 % for Tan delta and 2.7 pF of capacitance.
...more
Automatic Oil Breakdown Voltage Tester
pe-aobdv series of automatic oil breakdown voltage testers are highly precise instrument, which can be used to conduct either a breakdown voltage test or do a proof (withstand) test. Usual available automatic test sets only perform the former function, but pe-aobdv-am can do both. features - available in 100kv (m100), 80kv (m080) and 60kv (m060) versions.- world’s only “true bdv set”- “most accurate test set”. 1% bdv accuracy. 0.01kv bdv resolution- programmable stand, stir and intermediate stand- programmable voltage ramp rate- proof test possible with multiple break sequences- repetitive test sequence (up to 99 iterations)and average readings (from first to last)- non-contact magnetic stirring- user and object information included- touch panel backlit big lcd screen for enhanced user interface- integrated dot-matrix printer- vacuum cast resin hv transformer designed very long life- internal memory for 100 test data storage and recall via usb port- included iec 60156, astm d877, astm d1816, une 21, bs 5730a, bs 148, bs 5874, vde 0370, nfc 27, ce1344, oct 6581, sabs 555, as 1767, sta 8286, ip 295 standard test sequences- programmable 5 custom test sequences as per requirement- high voltage 100kv digital meter 1% accuracy available for on-site calibration
...more
AUTOMATIC HIPOT-TESTER
Power Electronical’s PE-HVT-1 series of Automatic Hipot testers are build to test the Breakdown/flashover voltage of Insulation Dielectric, while ensuring that the user safety is never compromised. These testers are completely Automatic in operation…just program/select the test sequence…press Start…and the entire procedure is completed automatically including the Reset operation and printout! Power Electronical Hipot testers come in the largest variety of options AC, DC, AC&DC, and in a variety of Voltage (0-500kV) and Current (0-500mA) levels, to cater to different requirements of customers FEATURES - Max Voltage 0-500kV (continuously variable)- Selectable AC o/p, DC o/p. DC polarity reversal possible- Programmable current trip levels 10% to 100% of maximum- World’s only “True HV measurement”…measures very HV secondary voltage across output terminal, instead of across HV primary as is done in most test sets- Complete Automatic operation. Just select and Start!- “Most accurate test set”. 2% Accuracy over entire test range.- Very high Resolution 0.01% of FSV of voltage- Leakage current measurement from 100pA to FSV of current- Insulation Resistance (IR) value measurement- Polarisation Index (PI) test facility- Programmable test time 0-99 mins- Programmable voltage ramp rate from 1kV/sec to 5kV/sec- Proof/Voltage withstand test possible with 10 break sequences- Repetitive test sequence (up to 10 iterations) and average readings (from first to last), min, max and standard deviation.- Safety features like ground check, zero start interlock and automatic reset incorporated for user safety- User and object information included- Touch sensing Big Backlit LCD screen for comfortable user interface- Integrated thermal / Dot Matrix Printer- Internal memory for 100 test data storage and recall via USB port- Programmable 25 custom test sequences as per requirement- Remote link-free user terminal available optionally, with operating distance range of 50m- High-Voltage 500kV digital meter (PE-HVM-500) 1% accuracy available optionally for on-site calibration
...more
AUTOMATIC CAPACITANCE AND TAN-DELTA TESTER
This is a complete integrated Capacitance and Tan-Delta test set including inbuilt 12kV AC power source Measurement Bridge and a reference SF6 gas filled Standard Capacitor. It is simple to use and easy to operate. It has a large backlit LCD display, and soft touch membrane buttons. The connections are simple and the set can be operated by inexperienced operators. The set is extremely light-weight and portable enough to be carried by a single person. Equipped with a USB serial output port, users can download their test results on PCs, or can use the internal 99 test storage facility. Integrated thermal Printer also allows printing of results on site. The instruments are calibrated in our in-house test laboratory to give you results traceable to national standards. FEATURES - High Interference suppression, good signal-to-noise ratio. Can be used in 765kV environments- UST, GST and GSTg test modes - CVT test facility - Input overvoltage & Output short-circuit protection - Ground check interlock APPLICATION - Transformer testing- Testing Bushings, CTs, PTs, etc at substations - Testing Rotating machines (LV Motors/Generators) on-site TOP
...more
DC Break Down Tester
Heating Chamber
