Mack Universal Sinnar, Nashik, Maharashtra

The Velocity 30R delivers high speed (up to 30,000rpm), high capacity (up to 1.5l), centrifugation with a powerful refrigeration (down to -20˚c).   Features High SpeedV30R is a floor space saving bench top unit with a maintenance free induction drive provide a high speed 30,000 rpm centrifugation.   Auto Rotor RecognitionAutomatic rotor recognition and confirmation provide rotor information and use for over speed protection. Simple OperationThe jog-dial design is good for one hand operation and quick parameter changing. 99 program storage is best for working in a laboratory that requires various operating condition. The built-in rpm to rcf conversion function allows selecting the centrifugation parameter by speed or g-force. Power RefrigerationA powerful cfc free refrigeration system cools the chamber quickly and maintain the rotor at set temperature while spinning. The pre-cooling program makes the operation procedure easier by cooling the rotor inside the centrifuge without the problem of cooling the rotor in a fridge. Safety FeaturesVarious safety protection are equipped in Velocity 30R. Motor driven lid lock ensures door is closed prior to centrifugation imbalance detection and shutdown overspeed detection and shutdown Quiet OperationThe good insulation and lower noise fans contribute a

Vacuum insulated panel outclass traditional insulation technology such as foams or fibre layer which reduce heat transfer by trapping gases. There is no air trapped in the space inside the Vacuum Insulated Panel, as a result heat transfer is largely reduced.

Suitable for a wide range of applicationsBuilt of AISI316L, cGMP and FDA compliantWashing pressure range up to 70 barSuitable to manage multiple hydro-kinetic water gunsFast coupling/Sanitary flanges connections     Main Features Multiple hydro-kinetic jet guns with orbital nozzles to suit your specific needs.High pressure water pump for outstanding cleaning performances.Compressed air blow system to purge the piping to prevent cross contamination.Ideal for the cleaning of fixed (multiple) tanks of different sizes.Noise level ≤ 75 dB.     Construction Frame built of AISI304 stainless steel “scotch brite” finishing.Water contact parts built of AISI 316L stainless steel, mirror polished.Thermal and acoustic insulation.Pharma grade heat exchanger max. temp 70÷85 °C.High pressure piston pump.Dedicated pump for automatic dosing of detergent.     Control System PLC control system with graphic multicolor HMI.Port for remote data transfer/collection.Software GAMP5 compliance.21 CFR Part 11 compliance.On board or remote alphanumeric printer for comprehensive batch report.     Utilities Electrical supply: 3 x 400 Vac 50/60 HzPower consumption: 12 KW (standard version)Utilities requirement:Main supply water pressure max 2 bar.Flow rate 38 l/min.Compressed air 6 bar.Steam up to 5 bar.

The Velocity 30R delivers high speed (up to 30,000rpm), high capacity (up to 1.5l), centrifugation with a powerful refrigeration (down to -20˚c).V30R is a floor space saving bench top unit with a maintenance free induction drive provide a high speed 30,000 rpm centrifugation.

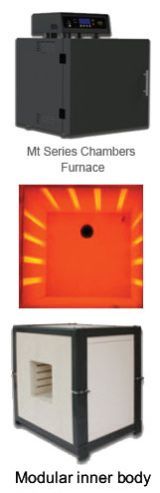

Accuracy: ± 2°C in temperature measurement & temperature control Chamber walls made up of insulating fire bricks against mechanical abrasion and thermal aging and deformation. Half buried heaters at two sides and top in quartz tubes. Resistance's placed in quartz tubes which rise to longer life of resistance against corrosive gases & protected against short circuit. Tight door insulating thanks to spring mechanism. Modular inner body; replacement and fully renewing the furnace. Homogeneous temperature gradient in the chamber thanks to similar heat loss in every direction. Maximized the optimum insulation (112mm) thickness to reduce the temperature of the outer surface (outer surface is not very hot, possible to touch). Contact less outer shell for low surface temperature. Ergonomical PID control unit placement. Operating without leaning. Standard chimney with fan. Extraction of oxidizing gases which occur during the burning process and homogenous heating. Adjustable foot screw

High efficiency, cost effective validatable cleaning solutions Ideal for bins, tanks and CIP of a wide variety of processing equipment Combines high pressure and low flow rate to minimize media consumption Advanced technology, innovative “light and ergonomic” design to improve mobility Add-on drying and water tank modules   The M-Line provides high-performance cleaning solutions thanks to the extraordinary mechanical action of the water supplied by a pump capable of generating up to 80 bar (1,200 PSI) pressure at nozzle level combined with a water flow rate as low as 40 l/min (9 gal/min) for a reduced water consumption. With its wheel mounted ABS anti-scratch casing, a neat and attractive design that improves ergonomics, movement throughout the different sites where washing procedures are required, is made much easier and practical. All surfaces in contact with fluids are made of AISI316L stainless steel with high quality sanitary grade components supplied with all the certificates to comply with the latest regulatory standards. The system is managed by a PLC with software compliant with GAMP5 guidelines. User ID and log-in, password protected menus for maintenance, calibration and alarms as well as storage of 30 different working recipes are managed by a 7” touch screen. At the end of each washing cycle an on-board printer generates a comprehensive batch report with critical parameters.

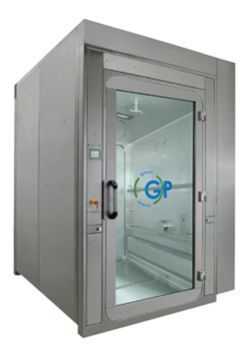

One hour cycle time with integrated modular H2O2 generator Interlocking doors entirely made of glass Double touch screen HMI GMP compliant with full validation protocols Multiple accessories for wide range of part and consumables decontamination   Quality & Design At IWT with our spirit of innovation and our commitment to the pharmaceutical industry, we have engineered and developed a product designed to address specific needs in the field of decontamination: the DECONTAMINATION LOCK. Full decontamination cycle, with 6 log reduction, in just ONE HOUR. The decontamination chamber is designed according to GMP guidelines for highly effective decontamination cycles with Vaporized Hydrogen Peroxide, either modular, integrated or external mobile generators from different vendors. This means that when you do not require dedicated generator the user is free to choose the most appropriate practice for their particular needs. Fast Decon Cycles Whichever generator is chosen, you will find that the average decontamination cycle takes just one hour, sometimes even less! Which sure you save your time and money.The filtration unit which is inclusive of a catalyser, not only assures a fast cycle, but cuts outs the need for a dedicated exhaust ductwork because of the catalyst filter, which breaks down and decomposes H2O2 into water and oxygen.This may mean considerable cost saving and smoother installation.

Built of AISI316L, cGMP and FDA compliantAvailable in three different sizes small / medium / largeWashing pressure range from 20 up to 80 barTelescopic orbital nozzlesNo water re circulation and self cleaning function     Main Features No water re circulation meaning no cross contamination.High pressure washing system for low water consumption.Dosing system for in-line detergent injection.Telescopic orbital nozzles for perfect coverage of the load.Self cleaning function to prevent any residues at the end of the process.High efficiency air handling system with HEPA filter for effective drying of the load.Air cooling system for fast and safe unload.Critical process parameters constantly monitored.     Construction Frame built of stainless steel AISI304 with thermal and acoustic insulation.Chamber fabricated of stainless steel AISI316L.All the water contact part mirror polished to a finishing Ra

Vacuum insulated panel outclass traditional insulation technology such as foams or fibre layer which reduce heat transfer by trapping gases. There is no air trapped in the space inside the Vacuum Insulated Panel, as a result heat transfer is largely reduced.   GREEN CONCEPT: MINIMIZE CARBON FOOTPRINT EFFICIENT SPACE UTILISATION REDUCED OPERATION COST   Better insulation performance compare with traditional foam insulation method Slim construction which decreases the front surface area by 20% when compared with similar volume freezer. Larger storage capacity with same footprint. Reduce more than 15% electricity consumption. Improved 22% for delaying the temperature rising the under power failure.

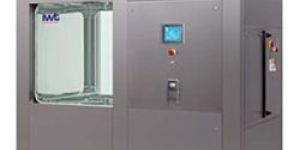

4 different chamber sizes.Single or double glass door for barrier integration with bio-seal type insulation.Designed based on customer requests, meets cGMP - FDA and GAMP guidelines.Reduced footprint, dimensions, utility consumption.Flexibility to allow washing and drying of a wide variety of components.Proven cleaning performance thanks to standard and customized racks and wash cycles. The W300 Series pharmaceutical grade washers have been designed to meet the most stringent customer requirements and to comply with international standards with a view to providing high-level performance together with ease of access to components, all within a minimal footprint.   The washing chamber entirely made of AISI316L grade mirror finished stainless steel, fully welded and finely polished to a surface finish of Ra ≤ 0,6 μm.All the water-wetted surfaces sloped to the drain.Rounded corners designed with a minimum radius R=20mm.No dirt traps.No threaded components (screws and bolts) inside the washing chamber in compliance with GMP requirements.Up to four dosing pumps (compatible with detergent and caustic soda) for accurate chemical dispensing (concentration in the tank monitored by a conductivity probe).Pipe work made of high-grade AISI316L stainless steel featuring standard 3-A sanitary fittings, tri-clamp connections, a fall to drain, absence of dead legs and orbital welding finely polished to a smooth finish.
