Educational Scientific Supplies Co. (ESSCO) Industrial Area Phase I, PANCHKULA, Haryana

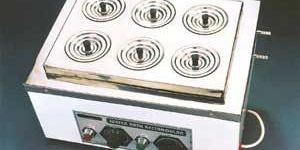

Water Bath Rectangular (thermostatic Control) 6727 standard Double Wall Construction, Inner Being Stainless Steel Outer of Mild Steel Duly Stoving Paint Finish and Gap Filled for Temperature Insulation with Special Grade Glass Wool. Top Cover with 75mm Holes with Concentric Rings. Temperature Range 5ºc Above Ambient to 95ºc Controlled By a Thermostat. Heating is Attained By An Immersion Type Element with Accuracy of ±1ºc. Supplied Complete with Plug & Cord. Panel Provided with Pilot Lamps, Thermostat Control Knob Etc. Models: A) 5 Holes, B) 6 Holes, C) 12 Holes

Traveling (vernier)microscope 1278 a Heavy Cast Iron Base Fitted with Leveling Screws Top Machined Over Which Slides a Metal Carriage Which Can Be Clamped At Desired Position. the Stage Carries a Vernier that Travels Over a Stainless Steel Scale Graduated in Mm 0 to 16.5cms. a Gunmetal Pillar Fixed to the Stage Has An Embedded S.s. Scale Graduated 0 to 15cms and Carries a Vertical Traveling Carriage with Vernier. Horizontal Stage for Placing Objects is Fitted with Milky Plate. the Microscopic Tube On Vertical Traveling Carriage is Focused By Rack and Pinion and Has An Achromatic Objective, a Ramsden Eye Piece 10x and a Cross Line Graticule. Vernier Read- in .01 Mm Supplied in Wooden Case. the Above List Does Not Include the Entire Range of Instruments Available, Please Feel Free to Request other Items Throughout this Field.

Spectrometer, Intermediate 1275 this is a Robust Instrument Designed Specifically for Student Use Which Nevertheless is Capable of Very High Performance. the Main Structure is of Heavy Cast Metal, with Bright Plated Fittings. a - Scale: the 150mm Diameter Circle with Protective Shield is Fixed to the Telescope Movement and the Table is Attached to the Double-ended Rotation fine Adjustment Screws, and Release of a Clamping Screws Enables Adjustment of Both Movements to Be Made By Hand. b - Collimator: Mounted On Fixed and Fitted with 178mm Focus Achromatic Objectives, 25mm Clear Aperture. also Fitted is a Unilaterally Adjustable Slit, 7mm Long. c - Telescope: Mounted On Moveable Pillar and Fitted with 178mm Focus Achromatic Objective, 25mm Clear Aperture. also Fitted is a 8x Ramsden Eyepiece and a Glass Crossline Graticule. Both the Telescope and Collimator have Rack and Pinion Focusing. Means are Provided for Leveling the Axis of Both Optical Units and for Squaring Them to Axis of Rotation. d - Prism Table: the Table is Marked with Lines to Assist Placing the Prism Will Respect to the Table Leveling Screws.

We are offering Rotary Microtome (precision) 8116. a Heavy Base with Hinged Cover for Protecting the Interior Mechanism, and Knife Holder. with Every Complete Revolution of the Drive Wheel, the Feed Panel Engage the Teeth of Rachet Wheel Which Advances the Object Holder Through Cone and Inclined Plane Mechanism, Tissue Sections Can Be Cut Down to Even 1 Micron. a Safety Device Automatically Disengages the Feed Mechanism At the End. Feed Indicator is in Front and Feed Setting is At the Back of Microtome Which Sets 1 to 50 Micron. a Razor 120mm Made from High Carbon Steel and Tested for Micro Structure is Supplied with Instrument. There is An Arrangement to Tilt Angle of the Razor Adjustable Up to 30º On a Reference Scale. Technical Features: feed Adjustment: 1-50 Micron (in Step of 1 Micro) total Feed Excursion: 28mm Opening of Object Clamp. hall and Flange Type: 37 X 25mm, overall Dimensions: 400 X 250 X 175mm. Weight: 25 Kg. Approx.

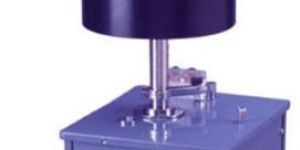

Research Kymograph 10251 improved Pinion-lift Replaces the Hydraulic Lift. Range of fine Vertical Adjustment 20 Cms. Permissible Paper Length 20 Meters. Speed Variation Form 1rev. in 3minutes. to 1rev. in 36 Hours, in 30 Steps. 10 Speed Ranges from Gear Box & fine Adjustment Speeds for Each Range from a fine Speed-control. You Just ‘tune-in’ to Any Desired Speed By Manipulating Dial Knobs. Automatic Paper Tensioning Device. 3 Joined Arm Upright; 2 with fine Tangential Adjustment & One with fine Tangential & fine Vertical Adjustments. Auxiliary Cylinder with fine ‘tilt’ Adjustment to Permit Equalisation all Along the Paper Width. Neutralising Clutch for Immediate Start or Stop. with Centralized Electrical Points for Respiration Pump & Operation Table. with Manometer & Time Market. Mounted On Heavy Metal Platform with Castors.

We are offering Polarimeter 1280. for the Measurement of Angle of Rotation of Optically Active Substance in Solution I.e. Angle Through Which the Plane of Polarised Light is Rotated On Passing Through a Specified Length of Solution of Known Concentration. Specific Rotation May Then Be Determined. the Circular Head is Attached Near the Analyser and Vernier Movement On the Scale Enables the Reading of Optical Rotation Accurate Up-to the Accuracy of 0.10. Soleil's Bi-quartz Laurents Half Shade Device Which Makes the Instrument Accurate and Simple for Use with White Light (day Light) or Sodium Light. the Polarimeter Tubes Made from Borosilicate Glass with Fittings At Both Ends. the Tube End Covers with Glass Round Disc, Optically True with Rubber Washers to Make It Leakproof. Complete with a Set of Two Polarimeter Tubes (100mm and 200mm) in Wooden Case, Nicely Polished.

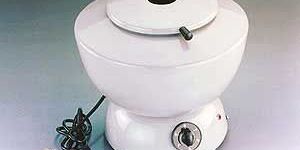

Medicoclinical Centrifuge 6814 electrically Operated, Dome Type, Sturdy, Stable Heavy Body with Resiliently Mounted Motor Working On 220 Volts, 50 Hz, Single Phase Ac for Vibration Free Performance with Built in 5 Speed Regulator and a Non-removable Swing Out Rotor. Complete with Tube Carriers. Maximum Speed 3500 Rpm. Neatly Finished in Stoving Enamel Paint. a) 4x15 Ml. Tubes. b) 6x15 Ml. Tubes. c) 8x15 Ml. Tubes. optional : (extra Cost) automatic 0-60 Minutes Timer.

Incubator Bacteriological (memmert Type) 6716 double Wall Fabricated. Inner Chamber Made Out of Richly Anodized Aluminium or Highly Polished Stainless Steel Sheet and Outer Made Out of Thick Mild Steel Sheet Finished in White Stoving Enamel Paint or Mat Finished Paste Colour Combinations. the Gap is Filled with Special Glass Wool. Double Wall Door with Double Glass Window for Observation in the Chamber. Temperature Range 5ºc Above Ambient to 80ºc ±2ºc Controlled By a Thermostat. L-shaped Thermometer is Provided for Taking Temperature Reading. Panel is Provided with Pilot Lamps for Main Heaters, On-off Switch, Temperature Control Knob Etc. the Equipment Workable On 220volts Ac 50 Hz Single Phase. Heating is Achieved from 3 Sides. perforated Removable Shelves also Provided. Chamber Sizes in Mm. a) 300 X 300 X 300 b) 350 X 350 X 350 c) 400 X 400 X 400 d) 450 X 450 X 450 e) 600 X 450 X 450 f) 600 X 600 X 600 g) 900 X 600 X 450 h) 900 X 900 X 900 note: Sizes of Your Choice Can Be Fabricated On Demand. optional: (extra Cost) i) Air Circulating Fan. ii) Timer 0-24 Hours. iii) Digital Temperature Indicator. iv) Digital Temperature Indicator-cum-controller.

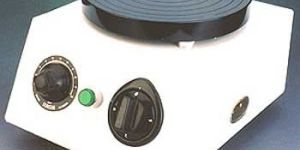

Hot Plates 6785 laboratory Hot Plates are Available in Round and Rectangular Shapes. Body is Fabricated Out of Thick Mild Steel Sheet Duly Finished in Stoving Enamel Paint. the Hot Plate Made of Cast Iron, Nicely & Precisely Machined & Smoothed Duly Finished in Heat Resistant Black Paint is Firmly Mounted On the Body. Heavy Duty Heating Elements are Securely Laid Under the Plate to Operate On 220volts, 50 Hz Single Phase Ac. Temperature is Controlled By a Three Heat Rotary Switch Along with An Indicator Lamp for the Mains and Cord & Plug a) Hot Plate Round Single. Specification as Above with 200 Mm. Dia. Moulded Top. b) Hot Plate Round Double. as Above But with Two Plates of 200mm Dia. Having Independent Pilot Lamps & Switches. c) Hot Plate Rectangular. Specification as Above But Plates is Rectangular in Shape. following Standard Sizes are Available: i) 30x250mm ii) 40x250mm iii) 45x300mm iv) 60x450mm note: other Sizes Can Be Offered On Demand. optional : (extra Cost) a) Energy Regulator. b) Digital Temperature Indicator-cum-controller.

Hot Air Universal Oven (memmert Type) 6701 three Side Heating Elements. Standard Double Wall Fabrication. Inner Chamber Made of Richly Anodized Aluminium or Highly Polished Stainless Steel Sheet. Exterior Fabricated Out of Thick Mild Steel Sheet Duly Finished in Stoved Enamel Off-white Paint or Paste Mat Finish Colour Combinations. the Gap Between the Walls is Filled With-special Grade Glass-wool for Heat Insulation. Inner Chamber is Ribbed for Placing Shelves At Convenient Levels. Provided with Two or Three Removable Shelves. Special Elegant Door Closing Device Has Been Provided. Nichrome Wire Heating Elements Provided On Three Sides Attain Quick and Uniform Heating in Range of 50ºc to 250ºc ±1ºc Controlled By Capillary Type Thermostat. L-shaped Thermometer is Built-in Type. Control Panel is Provided with Selector Switch of High or Low Rates of Power, Thermostat Control Knob and Indicators for Mains & Thermostat. Supplied with Cord and Plug. the Equipment is Suitable to Operate On 220 Volts 50hz, Single Phase Ac. Chamber Size in Mm: a) 300x300x300 b) 275x400x275 c) 350x350x350 d) 400x400x400 e) 450x450x450 f) 600x450x450 g) 600x600x600 h) 900x600x450 i) 900x600x600 j) 900x900x900 optional : (extra Cost) i) Air Circulating Fan. ii) Timer 0-24 Hours. iii) Digital Temperature Indicator. iv) Digital Temperature Indicator-cum-controller.

Horizontal Laminar Air Flow Unit Our Horizontal Laminar Air Flow Unit are manufactured using high grade materials as per international standards and specifications. These offers high-end performance and reliability. Key features are: • Quiet operation 60 db • Velocity 0.45m/s +/-20% below working area • Counter balance wet glass shutter • Feather touch buttons for on/off M/c, UV & Aux. Socket • MOC SS304, MS Powder coated • Light with 1000 lux & UV tube • Class 100 work surface • Battery backup

Dynamic Pass Box Our Dynamic Pass Box is manufactured using high grade materials as per international standards and specifications. Only one door can be opened with electromagnetic interlocking at a time, which helps in avoiding cross contamination. Furthermore, UV tube light is automatically switched on when both doors are closed. Key features are: • Stiffner for rigidity of base • Magnehelic gauge 0 - 50 mm w.g. • Standard Mini pleat (Eff.99.997% down to 0.3m) • Motor Blower: Options of 500 and 1000cfm • With UV resistant glass windows & DOP port • PHEROH make pre filter (Assign 90% eff) • Hour meter provided for UV • SS.304/MS Powder coated

We are offerimg Biosafety (bio-safety) Cabinet . our Biosafety (bio-safety) Cabinet is Manufactured Using High Grade Materials as per International Standards and Specifications. 100% Air Exhausts Through Hepa Filter Ad Vertical Laminar Air Flow Shield Provides Protection and Emission Area Against Each Other. Working like Barriers, It Ensures Particles from Outside Do Not Get In. Product Emissions Captured Safety & Led After (protection of Persons & Room Avoidance from Cross Contamination in the Room) & Exhaust of Air Through Mini Pleat Hepa or Decontamination Tanks (protection of Environment). Bio Safety Cabinet, Designed for Use with Bio Safety Level 1, 2 & 3 for Biolofical or Cytotoxic Agent. Key Features Are: • bio Safety Cabinet with Virus Burner to Eliminate Hazardous Viruses During Work • 30% or 10 % Exhaust of Class 100 Air Protect Environment • class 100 Air from Supply Hepa Protects the Product • velocity 90 ± 20 Below Working Area • gas Burner Will Be Provided • drain Valve for Collection of Liquid • feather Touch for Operating the Machine • heavy Duty Gauge Ss304 Construction of Bio Safety Cabinet • counter Balance with Glass Shutter is Provided for Protection During Handling Hazardous Samples & Contents • ss316 Tray Will Be Provided for Resistance of Corrosion [optional]

We are Offering Laboratory Autoclave (vertical). AUTOCLAVE (Vertical) 6845 A versatile, electrically heated sterilizer under saturated steam of adjustable pressure of 10 to 20 psi. Double walled construction with boiler & steam jacket made of thick stainless steel and gap is filled with high grade glass wool to bring the temperature loss to a minimal level. The outer chamber is made out of thick mild steel. The lid is made of thick stainless steel plate (joint less) or gunmetal plate and can be sealed by a joint less neoprene rubber gasket by wing nuts through hinged bolts by engaging slotted lugs on rim of the cover. Provided with dial pressure gauge, airsteam release cock., spring loaded safety valve adjustable to any required point from 10 psi to 20 psi with accuracy ± 3 psi. A drain cock has also been provided. a double safety valve has also been provided along with water inlet. Supplied complete but without dressing bins. Chamber Size mm - Load a) 250x450 - 1.5 KW b) 300x500 - 2.0 KW c) 350x450 - 3.0 KW d) 400x600 - 4.0 KW e) 450x600 - 4.0 KW f) 550x750 - 5.0 KW OPTIONAL : (Extra Cost) i) Automatic low-water level cut-off device ii) Pressure control switch iii) Radial lock (for models d, e & f only) iv) Dressing bins for various sizes (rates on request.) v) Water level arrangement.
