S.S.Tools Sirhind Road, Patiala, Punjab

Gear Shaper Cutters Disc type designed for producing spur, splines, sprockets & helical gears. Also available are customized shaping cutters for pre-shaved, preground automobile gears with profile features like protuberance, semi-topping, etc .

Spur & helical master gears are designed and produced as per customers requirement for composite double or single profile (flank) checking . Master gears are manufactured from premium materials to ensure the longest possible tool life. Certified accuracy class 4 of din 3962.

These are generally supplied with bore keyway however hobs with end drive slot & shank design can also be had on request. Special design single & multistart hobs are produced to suit specific customer's requirement for finishing, pre-shaving & pre-grinding gears with profile features like tip relief, protuberance, semi-topping etc. Certified accuracy class 'AA', A, B & C as per DIN 3968.

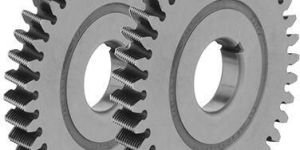

We are offering gear shaving cutters. Shaving cutters are generally supplied with standard true involute profile however special modified profile can be offered to generate tip relief, profile & lead crowning, 'k' profile etc. As per customer's requirement. Being a single source for various pre-shaved tools-hobs & shaping cutters, design parameters of shaving cutters are optimized to achieve better contact and desired true involute form diameters in gears. Certified accuracy class bs 2007 - 1975. Material: m2asp2023

We are offering gear shaper cutters. Disc type designed for producing spur, splines, sprockets & helical gears. Also available are customized shaping cutters for pre-shaved, pre-ground automobile gears with profile features like protuberance, semi-topping, etc . hub, deep counter bore and shank type shaping cutters are also available. Certified accuracy class aa, a as per din 1829. Material: asp2052asp2030m35m2

use straight angled sides for generating spur & helical gears of maximum accuracy on gear hobbing machines. Precision hobs are available for involute splines, straight splines, sprockets, worm wheels, timing pulleys etc.

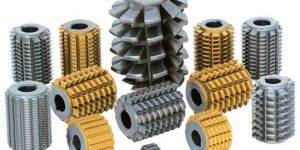

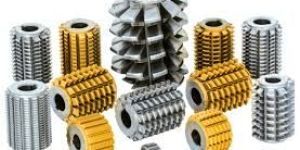

Gear Hob Cutters Use straight angled sides for generating spur & helical gears of maximum accuracy on geat hobbing machines. Precision hobs are available for involute splines, straight splines, sprockets, worm wheels, timing pulleys etc.

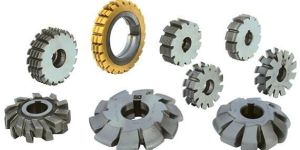

We are offering form milling cutters. These cutters are available for most tooth forms from standard involutes and sprokets to special splines, worm cutting, serrations, rack cutting, concave and convex form etc. Generally supplied in machine relieved unground forms, however profile ground cutters can be offered on specific request.

We offer flat thread rolling dies. Available precision ground flat thread rolling die plates for high quality fasteners. These dies are available in various thread forms such as metric, bsw, unc, bsf, unf, ba. Simplex and duplex dies can be offered with or without holding angles. Special thread forms can also be offered on specific request.
