Drawing Dies Dealers in Pune (5 products available)

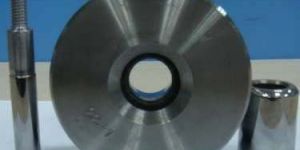

Leveraging on our rich industry experience, we are reckoned among the preeminent Manufacturers, Exporters and Suppliers of Tube Drawing Dies.  These are manufactured using excellent material and advanced technology. When it comes to bulk orders, we make use of the fastest modes of transport in order to avoid any delay at the buyer’s end.Details We supply tube draw dies, mandrels and floating plugs to this industry. Our brazed joints in mandrels between carbide and steel withstand higher drawing pressures These dies are polished to less than 0.1 Ra surface finish to give higher life. We supply dies for tube end swaging for heat exchanger tubes

Feature : Metal forming,Structural components,Corrosion and high temperature

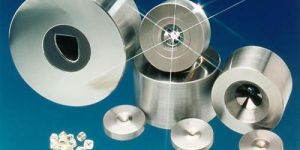

Wire drawing dies are tools with highly-polished, specially-shaped holes through which wire is drawn to reduce its diameter. They have a metal case and a nib made of carbide, polycrystalline diamond (PCD), or natural diamond. When selecting wire drawing dies, wire material and drawing parameters are important specifications to consider. Examples include standard wire drawing dies, PCD wire drawing dies, Carbide wire drawing dies, and enameling wire drawing dies. Standard wire drawing dies have a well-defined reduction angle that reduces drawing force and provides uniform die-formation with a consistent surface finish. PCD wire drawing dies use polycrystalline diamond (PCD), a synthetic material which provides superior resistance to cracking and wear. Carbide wire drawing dies are made from tungsten carbide, an extremely hard and scratch-resistant material that is often used in tool bits. Tungsten carbide wire drawing dies are often used to draw thicker wires, and in applications where PCD dies are too expensive. Wire drawing dies are used with a variety of wire drawing tools and equipment. Pull-in dogs are used to grip a wire?s end as it enters the die. After the pull-in dog is fastened to the block, the wire is drawn through the die. Wire drawing dies are also used with both single-block and multiple-block machines. With single-block equipment, the wire passes through a die and collects on a standard block. With multiple-block machines, the wire is pulled through a die and wrapped around a slightly-tapered block. The wire then moves upward onto collector pins and exits the upper section to reduce back tension.

Drawing Dies, carbide draw dies, Round Dies

Drawing Dies, Broaching Tools, Die center for cupper tooling
