Steam Traps Dealers in Pune (29 products available)

The trap body is normally filled up with condensate to maintain a seal water around the inverted bucket. Live steam enters the bucket, floats it, to close the valve. Steam leaks through a small hole in the top of bucket, and opens the valve to discharge condensate. Some inverted bucket traps are fitted with an auxiliary bimetallic air vent.

• Certification: FSSAI Certified
• Cultivation Type: Organic
• Shelf Life: 6months
• Form: Solid
• Type: White Rice
• Country of Origin: Made In India

rice yellow steam & fruit borer pheromone trap & lure

• Product: Thermodynamic Steam Trap
• Product Name: SLTT76

SLTT76    UNIQUE FEATURES   Corrosion Resistance SS Body construction. Uniquely Designed Maintainable Seat Differential hardness value for seat & disc Function test - 100 % on steam ·         Uniquely designed seat ·         Easy maintainable trap ·         Vacuum heat treated seat and disc therefore life of trap equal to life of plant ·         Cap tightened against gaskets ensuring no damage to trap         DESIGN CONDITION ·         Max allowable pressure: 48.9  bar ·         Max allowable temperature: 538℃

Features Available in 15, 20, 25 NB sizes Maximum 250 bar / 550oC Available in single / three port design. Provided with an optional blow down valve Available in forged steel / SS body with SS hardened disc Easy to clean with built in SS ‘Y’ strainer Suitable for steam header drain application

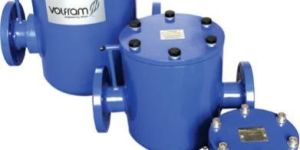

The immediate condensate discharge out of steam systems is absolutely necessary to retain the maximum possible capacity of the heat exchanger and to minimize the danger of corrosion, water-hammering & temperature fluctuations in the process. It is the task of Float controlled steam traps to discharge condensate out of steam consuming equipments but to keep the steam inside. Rotating Plug Steam Traps Working Principle VOLFRAM float controlled steam traps operate based on the rotary slide valve principle. These float controlled steam traps sense the density difference between vapor and condensate. As the incoming condensate reaches the trap body the condensate level rises so does the float. Due to the movement of the float the rotary valve is able to turn and open the outlet port and the condensate is discharged. Now as the level of condensate falls so does the float and the rotary valve turns and closes the outlet port. With this type of operation the condensate is discharged continuously. VOLFRAM float controlled steam traps operate effectively even at small differential pressures. Their operation is not affected by pressure fluctuations. These traps are provided with features such as air vent and a steam / gas barrier in the form of immersion tube. The thermostatic air vent offers the added benefit of significantly increasing condensate capacity on cold start-up. Features of Steam Trap: Only one moving point Proportional control action Exact, impact free & silent condensate discharge Independent of pressure & temperature Extremely long working life Little wear with extremely low maintenance Simple mechanism Applications: Float traps are recommended to be installed at process equipments. Sizes Available: 15 NB, 20 NB, 25 NB, 40 NB, 50 NB

It is a stainless steel body balanced pressure thermostatic steam trap with a built in strainer, ideal for removal of condensate from instrumentation tracing lines.Product Features : Provided with built in strainer Membrane capsule regulator resists corrosion and is unaffected by water hammer Discharge condensate below saturation temp leading to increased heat recovery from condensate Available in forged carbon steel & SS body.

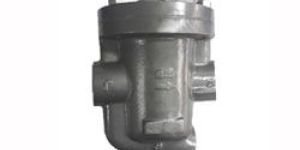

The Inverted Bucket Steam Trap is simply an automatic valve that opens for condensate, air and Co2 and closes for steam and it efficiently perform that basic function for long periods of time making it more economical. Inverted bucket steam trap operates on the difference in density between steam and water. Steam entering the inverted submerged bucket causes the bucket to float which when lifted closes the discharge value. Condensate entering the trap changes the bucket to a weight that sinks and opens the valve to discharge the condensate. But unlike other mechanical traps, air and carbon dioxide are vented continuously at steam temperature through a small hole provided in the stainless steel bucket. The heat of Inverted bucket Steam Trap is its leverage system that multiplies the force provided by the bucket to open the valve against pressure. There are no fixed pivots to create friction. It is designed to open the discharge for maximum capacity. Wearing point are reinforced for longer life. Valve and Seat are made of heat treated chrome steel. The use of different leverage ratio for each orifice size makes it possible to open the maximum size orifice at any given pressure. Each size of Inverted Bucket Steam Trap is available with different sizes of pressure changes Assemblies at different pressure intervals so that the capacity of any one size is maintained at its optimum level. Max. Operating Conditions: Max. Allowable pressure: 17 Bar Max. Allowable pressure: 232 degree Sizes: 15 NB, 20 NB, 25 NB, 40 NB, 50 NB End Connection: Screwed to BSP, BSPT Flanged to ANSI, Class-150/300 Materials: Body: ASTM A48 CI, 30 Internals: Stainless steel-304 Valve & Seat: Hardened chrome steel Options: Bucket Vent scrubber wire Check valve

• Feature: Resistance to water hammer

The trap body is normally filled up with condensate to maintain a seal water around the inverted bucket. Live steam enters the bucket, floats it, to close the valve. Steam leaks through a small hole in the top of bucket, and opens the valve to discharge condensate. Some inverted bucket traps are fitted with an auxiliary bimetallic air vent.

• Size: 15, 20, 25, 40, 50 mm upto 100NB and PN 160
• Brand Name: THERMAX - RIFOX
• Material: MS
• Feature: Designed for varying loads with continuous discharge, IBR approved float controlled trap, Prefabricated ready to install module with flanged ends, Module is designed for effective condensate recovery
• Model: Vario
• Usage/Application: Industrial

• Sizes: 15 mm – 25 mm

Steam used for secondary heating like Coils, vessels, heat exchangers etc, generate a lot of condensate post heat transfer. This large quantity condensate can handle by the Inverted Bucket Trap.This condensate has a substantial heat component with cost tagged to it. Also this is treated and pure water and can be used as Feed water for the Boiler, saving the cost of heating, Water Bill and Treatment chemicals. Therefore it makes sense to recycle reuse this condensate. This function is also done by the Inverted Bucket Trap, which works on the principle of Buoyancy, [densities difference of Water and Steam].The rising in condensate level fills and envelopes the Bucket causing it to sink which open the mechanically linked valve and discharges the condensate, and reverse, when the level of condensate drops Steam enters the bucket, causes the flotation of the Bucket which close the valve and stops condensate discharge & traps the steam.

• Material: Stainless Steel
• Color: Silver
• Usage/Application: Industrial
• Size: 15 Mm To 25 Mm
• Packaging Type: Box
• Brand Name: Saad
• Features: Non-corrosive, Sturdiness, Impeccable finish
• Ends: Screwed
• Finishing : Polished

• Type: Thermodynamic
• Body: ASTM A 351 Gr CF8 / CA15
• Trims: 13 Cr / 18 Cr 8 Ni
• Max Inlet Pressure: 32 Kg/Cm2 AT 425°C
• Minimum Pressure: ±0.25 Kg/Cm2
• Max Back Pressure: Should Notexceed 80% of Theinlet Pressure
• Ends: SCREWED TO BSP
• Hyd - Test Pressure: 911 Psig (64 Kg/Cm2 )
• Size Range: 15 MM TO 25 MM

We are the main supplier of this product.

We offer high grade Steam Traps that are available in various sizes. The different size availability is suitable to be used in different temperature conditions and pressures. These Steam Traps of our company can be availed in the ball float type at highly affordable prices. Approved By : EILUHDETOYOLURGIOEMS viz THERMAXKruppEnd Users viz. IOCL, HPCL, BPCLTrunkey Contractors viz. L & T Technical Specifications : Pressure : From 21 kg/cm2 to 150 kg/cm2Sizes : From 1/2” to 1” ( 15 mm to 25 mm) Material used : Carbon Steel , Stainless Steel, Cast Iron, Alloy SteelTemperature : Up to 537 deg. centEnd Connection : Screwed Ends, Flanged Ends and Socket Weld Ends

Steam Traps, Polyurethane Tube, Pu Tubes, Paint Spray Hose

It is a stainless steel body balanced pressure thermostatic steam trap with a built in strainer, ideal for removal of condensate from instrumentation tracing lines.

It is an ideal choice for removal of condensate from process heating equipments such as heat exchangers, storage tank coils, drying cyclinders, jackets, reactors, jacketed vessels, ovens etc.

We are well known for exporting of wide variety of thermostatic type steam trap.

Steam Trap, pressure relief safety valves, pressure reduction valves

Thermodynamic Steam Trap, Single Effect Steam Driven Chiller
