B. M. Industries GIDC, Ahmedabad, Gujarat

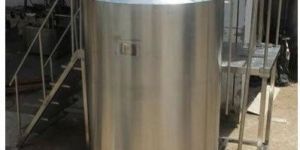

  • Stainless Steel Liquid Mixing Tank

    Stainless Steel Liquid Mixing Tank

    490,000 Per Piece

    Shape : Round

    Storage Material : Water, Chemicals/Oils, Milk/Dairy

    Capacity : 5000-10000 L

    Brand Name : BM Industries

    ...more
    Get Best Price

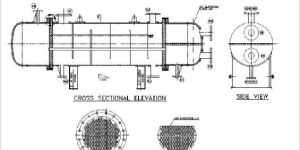

  • Shell & Tube Condenser

    Shell & Tube Condenser

    Request for Price

    We are trusted in the industry for manufacturing and supplying the Shell & Tube Heat Exchangers that are used to condense the vapors leaving the top of a distillation column into liquid, by removing heat of vaporization. These Shell & Tube Heat Exchangers are fabricated using the top class materials such as Steel SS-316, SS-304, Mild Steel etc. We design and develop these Shell & Tube Heat Exchangers as per the industry norms to make them efficient enough to work under the most challenging conditions. Our Shell & Tube Heat Exchangers are available in 1 Sq. MT. to 60 Sq. MT. in size. Applications : Chemical IndustryFood & Beverage IndustryBulk DrugsFertilizersPesticidesDyesCosmetics IndustryPetroleumRefineriesPetrochemical PlantsNatural Gas ProcessingRefrigerationPower Plants Space Heating Allied Industries Used For : Transfer the heat to condensate vapours. Sizes Available : 1 sq. mt. To 60 sq. mt. Size. Raw Material Used : Mild Steel and Stainless Steel (SS-316, SS-304, Alloy-2205). Technical Specifications : Shell and tube heat exchangers consist of a series of tubes. One set of these tubes contains the fluid that must be either heated or cooled. The second fluid runs over the tubes that are being heated or cooled so that it can either provide the heat or absorb the heat required. A set of tubes is called the tube bundle and can be made up of several types of tubes: plain, longitudinally finned etc. Shell and Tube heat exchangers are typically used for high pressure applications (with pressures greater than 30 bar and temperatures greater than 260oC.

    ...more
    Get Best Price

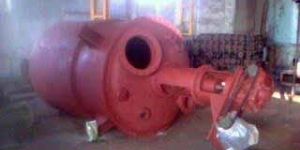

  • Limpet Coil Vessel

    Limpet Coil Vessel

    Request for Price

    We offer Limpet Coil Vessel in different sizes to hold quantity from 50L to 20Kl. We are a trusted name in the market for manufacturing, supplying and exporting Limpet Coil Vessel. The Limpet Coil Vessel is made of either mild steel or stainless steel, thereby making it rust resistance. We offer reliable and durable Limpet Coil Vessels at the market leading prices. Construction : The construction of Limpet Coil Reactor is same as that of Jacketed Reactor except instead of Jacket on the Shell of Reactor Limpet Coil is welded on it. Limpet Coil Reaction Vessel consists of a cylindrical vertical shell with standard Toro spherical dish on both ends. Limpet Coil is half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor. Limpet Coil is made of either mild steel or stainless steel. It is either Double end double start for both heating and cooling through limpet coil or normal single coil for either heating or cooling. Limpet Coil Welding is performed by using high grade filler rods depending on MOC of the Limpet Coil to withstand design pressure. Drive : The drive is designed to give maintenance and trouble free performance. The Agitator Shaft is coupled to the Reduction Gear Box with Flexible coupling. The Reduction Gear Box is mounted on the Top of the Lantern Assembly and is driven by Motor using V belt pulley. Variator or AC Drive can be used to get variable speed of the Agitator if desired. Mounting : Four lugs support is provided on the Shell of the reactor to mount it on the Platform of the Factory. Platform can also be prefabricated and assembled at site. Welding-Welding work is performed by Argon Arc process using Good Characteristic Filler rods on all S. S. Parts. M.S. Parts welding is performed by D. C Arc welding process using suitable electrodes of Advani Oerlikon make. Finish : All weld joints will be finished from inside and outside, S.S. Parts is cleaned from inside and outside. Two coats of primer / red oxide will be given on M.S. parts from outside. Testing : Equipments are tested hydraulically as per design pressure.

    ...more
    Get Best Price
  • Jacketed Reaction Vessel

    Jacketed Reaction Vessel

    Request for Price

    We manufacture Reaction Vessel from 50 Ltrs to 20 KL in Material of construction Mild Steel, Stainless Steel SS 304 or SS 316. Construction : Jacketed Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends.A jacket is provided on the Outside of the shell for Heating the reactor by passing steam or thermic Oil. or Cooling the reactor by passing cooling media. Stiffener Rings are provided on shell in between the shell and jacket to give uniform circulation of the heating or cooling media and to intensify the vessel. Agitator assembly mounted on the Top dish of Reactor consists of Shaft supported by Lantern Assembly on the Top End containing Bearing Housing with Tapered roller bearing and Ball bearing to withstand impact load and vibratory load ensuring smooth rotation of the Shaft. Water cooled Stuffing box filled with gland rope pressed by Gland pusher is also provided. On the other end of the shaft Blade is fitted of different types as per the need of the Process viz. Single Anchor, Double Anchor, Gate, Paddle, Flat or Curved Turbine & Propeller types. Baffles are also provided inside the shell as per the requirement. Top Dish of the Reactor is provided with various Nozzles viz. Manhole, Light Glass, Sight glass, Vapour, Addition, Reflux, Thermowell etc. Bottom Dish of the Reactor is provided with an Outlet nozzle where valve is fitted. Drive : The drive is designed to give maintenance and trouble free performance. The Agitator Shaft is coupled to the Reduction Gear Box with Flexible coupling. The Reduction Gear Box is mounted on the Top of the Lantern Assembly and is driven by Motor using V belt pulley. Variator or AC drive can by used to get variable speed of the Agitator if desired. Mounting : Four lugs support are provided on the Shell of the reactor to mount it on the Platform of the Factory. Platform can also be prefabricated and assembled at site. Welding : Welding work is performed by Argon Arc process using Good Characteristic Filler rods on all S. S. Parts. M.S. Parts welding is performed by D. C Arc welding process using suitable electrodes of Advani Oerlikon make. Finish : All weld joints will be finished from inside and outside, S S. Parts is cleaned from inside and outside. Two coates of primer / redoxide will be given on M.S. parts from outside. Testing : Equipments are tested Hydraulically as per design Pressure. Function : Reaction Vessels are used in carrying out a wide variety of chemical reactions including condensation, polymerization, esterification etherifciation, hydrolysis, hydration, reduction, oxidation, hydrogenation etc. at pressures (Up to 30 Kg. / cm2) and at temperatures ranging -20oC to +250oC. Reaction needing simultaneous fractional distillation and azeotropic distillation can also be conducted very efficiently using these chemical reaction vessels. Material of Constructions : Various materials of construction, such as MS, SS304, SS 316, SS 316L, Rubber Lined etc, can be offered as per requirement.

    ...more
    Get Best Price

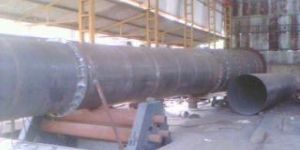

  • Industrial Chimney

    Industrial Chimney

    Request for Price

    Backed by cutting-edge technology, we are engaged in manufacturing, exporting and supplying Industrial Chimney. We manufacture Industrial Chimneys with high grade metal sheet for the eviction of smoke from the furnace, boilers, etc. They are available in different shapes and lengths according to the demand. Features : Simple and easy installationHighly durableAvailable in various heights, diameters and thicknessLess maintenance require

    ...more
    Get Best Price
  • Hydrocyclone

    Hydrocyclone

    Request for Price

    Hydrocyclone is used to separate or sort particles in liquid with different densities of the particles and may be used to separate liquids from solids. Hydrocyclone can also be used to separate liquids of different density. B. M. Industries manufactures, exports, and supplies the best quality Hydrocyclone. Our Hydrocyclones are widely appreciated for their high performance and longer service life. Construction and Working : A Hydrocyclone has a cylindrical section at the top where liquid is being fed, and a base. The angle, and hence length of the conical section, plays a role in determining operating characteristics. It has two exits on the axis: the smaller on the bottom (underflow or reject) and a larger at the top (overflow or accept). The underflow is generally the denser or thicker fraction, while the overflow is the lighter or more fluid fraction. Internally, centrifugal force is countered by the resistance of the liquid, with the effect that larger or denser particles are transported to the wall for eventual exit at the reject side with a limited amount of liquid, while the finest, or less dense particles, remain in the liquid and exit through the overflow side through a tube extending slightly into the body of the cyclone at the center. Forward Hydrocyclone remove particles that are denser than the surrounding fluid, while reverse hydro cyclones remove particles that are less dense than the surrounding fluid. In a reverse Hydro Cyclone the overflow is at the apex and the underflow at the base.

    ...more
    Get Best Price

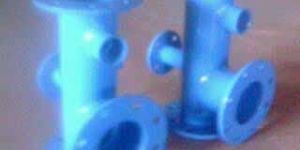

  • Header Assembly

    Header Assembly

    Request for Price

    Header Assembly has wide industrial usage. We manufacture, export and supply premium quality Header Assembly. The Header Assembly consists of two jacks for proper operations. We produce Header Assembly with high-grade raw material as per the international standards. All Our Header Assemblies undergoes strict quality checks before final dispatch. Features : DurableExcellent performanceExclusive finishReasonable price

    ...more
    Get Best Price
  • Fertilizer Tank

    Fertilizer Tank

    Request for Price

    We are a prominent Manufacturer, Exporter and Supplier of Fertilizer Tank. The Fertilizer Tank is used to sprinkle Fertilizers in farm. These tanks are best suitable for micro irrigation systems. Our Fertilizer Tanks are constructed with mild steel, thereby ensure rust resistance. Also, our Fertilizer Tanks are available in different capacities at the economical prices. Features : Turbulent inlet ensures thorough mixing of chemicals and / or fertilizers.Mild steel constructionSeparate valves are provided on the inlet and outlet to control the injection rate.High pressure hose assembly inlet / outlet connection.Coated with more than 70 micron thick deep blue colored epoxy powder from both inside and outside surfacefor protection against corrosion and weather effects.Wide 8â opening for easy pouring of stock solution.Maximum working pressure 10 kg/cm² (142 psi).Drain port to flush the tank.Available in 30, 60, 90, 120 & 160 liter (8, 16, 24, 32 & 42 US gallon) capacity. Applications : Used in fertilizer and chemical injection through drip and sprinkler irrigation system. Note : Operation time is given as guidelines only and actual timing can be changed according to the density of stock solution and other field conditions.Tested under standard test conditions.

    ...more
    Get Best Price
  • ETO Gas Sterilizer

    ETO Gas Sterilizer

    Request for Price

    ETO Gas Sterilizer is used for ethylene oxide sterilizing. It is high on demand in the plastic and pharmaceutical industry across the globe. We are engaged in manufacturing and supplying a wide variety of ETO Gas Sterilizers. We offer both fully automatic and manually operated ETO Gas Sterilizers to meet variegated demands of our clients. Moreover, clients can avail them in various sizes and specifications as well. Construction : ETO Gas Sterilizer uses ethylene oxide as a biocide for sterilizing process to destroy viruses, fungus, bacteria and other unwanted organisms. ETO consists of a closed chamber mostly double jacketed, corrosion resistance, gas resistant of suitable alloy (mainly mild steel). The middle jacket is surrounded with the hot water to raise the temperature of the product. The outer jacket of ethylene oxide sterilizer is insulated with proper insulation material for heat resistant. This ETO gas sterilizer equipment is provided with vacuum pump, pressure gauges, temperature gauges, and nozzle connection for hot & cold water. It consists of one door which is made with central locking arrangement in order to make chamber close tight. Features : Internal cage provided for non-sticking of bags inside the chamber.Compact design to suit all environmental conditions.ETO Sterilizer is also available in Single door and Double door.Radial locking arrangement for seal proof condition.MOC SS and M.S Applications : In food industries (Wheat flour, grains, all types of spices etc.) where various seeds like sesame seeds are sterilized and exported.In hydration plants where (onion powder, onion flakes, garlic powder, garlic flakes, etc. are manufactured and exported)In pharmaceutical products, hospitals, etc.In plywood industries where ply woods are sterilized against white ants and residual bacteria. Note : Sizes As Per Customer Requirement Types of Sterilizer : ETO Gas SterilizerETO Steam Sterilizer ETO Table Top

    ...more
    Get Best Price
  • Ball Mill

    Ball Mill

    Request for Price

    Ball Mill is used to reduce the particles with help of grinding media. We manufacture, export and supply premium quality Ball Mill in India. Manufactured with rubber line, mild steel and stainless steel, our Ball Mill is widely appreciated for its durability and high performance. The Ball Mill is available in different specifications as per the requirements. Construction : Our Ball Mill consists of cylindrical shell made out of mild steel sheet with or without lining of steel or rubber as per the application. The end plates are designed to make sturdy with stiffeners in order to withstand the rotational load of the loaded ball mill. The Ball Mill is driven by pinion gear which drives the ring gear which is fitted on the drum of the ball mill. The pinion gear is coupled to the gear box which is coupled to the motor to ensure trouble free performance. Bolted Flange covers are provided on the square opening of the Ball mill for loading and discharge of the material.

    ...more
    Get Best Price
  • industrial chimne

    industrial chimne

    Request for Price

    Get Best Price
