Visaman Sales Sorthiyawadi, Rajkot, Gujarat

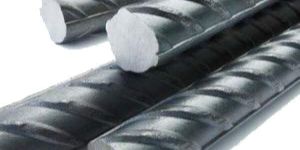

TMT Bar: We sale all type of TMT bar from 8mm to 32 mm diameter from primary and secondary producer.Reinforcement bars are used generally in construction projects.Basically there are 3 Qualities in bars:-1) CTD :- Cold Twisted Deformed Bars2) TOR :- Tor – 403) TMT :- Thermo-Mechanically Treated BarsCTD & TOR-40 :TMT Bars:Representation of TMT bars is done by its diameter.For e.g.: 8mm TMT bar means diameter of that bar is 8mm.Sizes:-Following are the sizes available in Reinforcement bars:Diameter (in mm): 8, 10, 12, 16, 18, 20, 25, 28, 32, 40, 45.

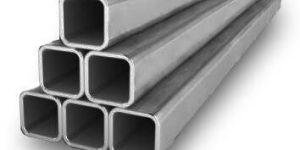

Size: SHS 20Χ20-275-275Thinkness: 1.0 mm to 8.0 mmLenth:3.0 mtr to 12.0 mtr APPLICATION S/U Mechinery Automotive Furniture Storage System Transmission Tower Product Standard Is4923:1997 EN1029-1:2006 ASTM A-500 Tests Performed Visual and Dimensional Inspection Tensile Test Flatting and Flaring Test Impact Test Chemical Analysis Plain End-square Cut Cut Length Surface Protection Black(Self Coloured uncoated) Outside Protective Coating-oil/Varnish Hot Dip Galvanized Pre-Galvanized

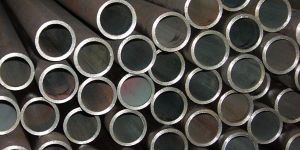

Key Features: Excellent resistance to high pressure and low/high temperature Highly normalized & tempered Sturdy construction High tolerances Smooth inner surface for increased fluid flow

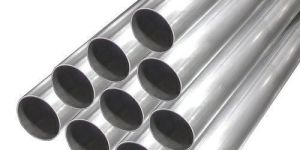

Outside Diameter: 21.3mm-355.6mmThinkness range: 07mm-8.0mmLenth: 3.0 meter to 12.0 meter APPLICATION Liqid Transmission Idlers Mechanical & General Engineering Structural Water and Sewage Water Welles Fire proction Fencing & many more Product Standard ISL1239(Part-1)/2004, BS:1387-1990 DIN 2039,DIN 2440, DIN 2441,DIN 2444 EN10255:2004, EN10240:1998 IS:9295-1983 IS:3601-1984 IS:1161-1998 IS:3589/2001 IS:4270:2001 ASTM A-53 GR A&B SCH 20/40/80 ASTM A-795 ASTM A-135 Tests Performed Hydrostatic Test Eddy Current Test Flattening/Flaring Test/bend Test Bend Test Chemical Analysis Other Tests As Required By the Standard Finishing Operations Plain End Threaded and Coupled Grooved Cut Lengths Surface Protection Black(Self Coloured uncoated) Outside Protective Coating-oil/Varnish Hot Dip Galvanized Pre-Galvanized

Length:- Uniform 12 meters, can also be supplied in 9/12 meters on mutual agreement Tolerance as per:-  IS : 1786 – 2008 Note: Sizes 8,10 and 12 mm are not regularly rolled in Fe 550 Grades Special Features: Low carbon content and made from fully killed steel. Higher yield strength, Ultimate tensile strength and higher percentage elongation when compared tocold twisted bars of same grade. Easy bendability, weldability and excellent ductility ensures economy and safety of use. In-built ability to resist loss of strength at higher temperature. Require less energy for bending and re-bending along with superior reverse bending properties. Can be butt welded or lap-welded. Use of Fe-500 grade results in saving more than 15% in steel consumption when compared to coldtwisted bars. Higher corrosion resistance and seismic resistance compared to CTD. Ideally suited for any type of concrete structure. Packing : Bare, in strapped bundles / piles weighing 7 to 8 metric tonnes approximately.Invoicing : As per actual weight.Quantity & Shipment Quantity & Shipment : On mutually agreed terms.

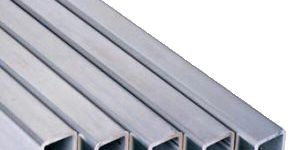

Size: RHS 20Χ15-300Χ250Thinkness: 1.0 mm to 8.0 mmLenth:3.0 mtr to 12.0 mtr APPLICATION S/U Mechinery Automotive Furniture Storage System Transmission Tower Product Standard Is4923:1997 EN1029-1:2006 ASTM A-500 Tests Performed Visual and Dimensional Inspection Tensile Test Flatting and Flaring Test Impact Test Chemical Analysis Plain End-square Cut Cut Length Surface Protection Black(Self Coloured uncoated) Outside Protective Coating-oil/Varnish Hot Dip Galvanized Pre-Galvanized

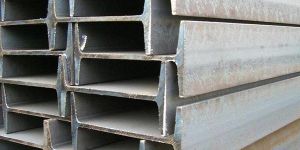

Grades Sectional Properties as per:-For Beams :- DIN :1025 – 1994 / IS :12778 – 1989 / IS :808 – 1989Tolerance as per:-For Beams :- DIN :1025 – 1994 / IS :12779 -1989 / IS :1852 – 1985Grades as per:-For Beams :- IS :2062 :E250 A – 2006 It is represented by dimensions of Web & Flange. For e.g. 150×75 beam means,Width of Web = 150mmWidth of Flange = 75mm

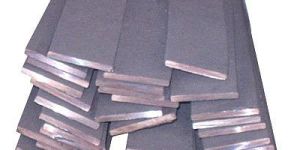

Rolling Tolerances Width:- up to 50 mm: ± 1 mm50 mm to 75 mm: ± 1.5 mm75 mm to 100 mm: ± 2 mm100 mm and above ± 2%and maximum not exceding 6 mm Thickness:-up to 12 mm: ± 0.5 mmover 12 mm: 4% and max not exceeding 1.5 mm Sectional weight:-Up to 3 mm thick: +5/-3%Over 3 mm : ± 5% Length:-For fixed length : ± 100 mm

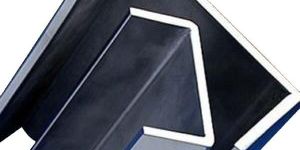

GRADES :- Common Grades: IS 2062/1999Structurals are also available in the following foreign specificationsASTM-A-36, JIS-G-3101-SS400, BS-4360 Grades 40A, 43A, 43B, 43C,50B, 50C, EN-10025,Grades S-275 JO, JR, S-355 JO, JR, DIN-17100 ST 37.2/44.2 Rolling Tolerances:- Web:- up to 200 mm ± 2.5 mm above 200 mm ± 3 mmFlange :-  upto 100 mm ± 2 mmSectional weight:-  ± 2.5 %Length:- For fixed length : ± 100 mm 75 x 40mm to 200 x 75mm (Light Wt. /Med. Wt. /STD .Wt. ) Application : -truck-trailers, -Tippers, -generators frames,-EOT cranes, -ship building, -factory sheds, -conveyors, Cable Trays, boilers, agricultural equipment, Bus body, Mechanised parking system, construction of bridges and many more engineering industries.
