GUBBI ENTERPRISES Ulhasnagar, Thane, Maharashtra

We offer Vicat Needle Apparatus that is widely used in determining the normal consistency and setting time of cement. The test is undertaken by mixing cement with water and then measuring its resistance to penetration of a standard probe at varying intervals of time, until a certain value is reached. This equipment is very rugged and hence can withstand the harsh weather conditions. We offer this apparatus to our clients from construction industry at very competitive rates.

The Vibrating Table is used for compacting concrete cubes and cylinders. Salient FeaturesSpecifications: It is designed to carry a load of 140 kg. The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means of off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 50cm x 50cm. and has stops along its edges to prevent moulds from walking off the table during vibration. A cross arm adjustable on a vertical rod at the center of the table is provided to hold the moulds while operating the table. The variable pitch pulley arrangement permits the frequency to be varied between a maximum of 3600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. A switch is provided for starting the motor, suitable for operation on 440 volts, 3 phase, 50 cycles, A.C.supply.Vibrating Tables of table top size 75cm x 75cm as well as 100cm x 100cm are also available

Backed by sophisticated infrastructure, we hold ability to manufacture and export best quality tile abrasion testing machines. These machines are extensively used for determining the resistance to wear for cement concrete flooring tiles. They are oad the specimen. The abrasion of tiles is measured on a thickness gouge specifically made for this purpose. We can offer these tile abrasion testing machprovided with a rotating disc, adjustable counter for automatically stopping the machine, a bracket to hold specimen and a counter balance lever to lines in standard as well as customized specifications.

Test Sieves are used for sieving of aggregate, sand soil and cement etc. These sieves are manufactured as per various standards like ISS, BSS, ASTM, DIN etc. Sieves are made of Brass frame and G.I. frame of dia. 200mm, 300mm & 450mm. Normally Brass Sieves are manufactured in 200 cm dia and frame is spun brass, joint less. The Sieve cloth used is standard SS or phosphor bronze wire mesh. Lid and Receivermade of brass for 20cm or 8” dia sieves. Specification:· Manufactured as per various standards such as ISS, BSS, ASTM, DIN etc.· Sieves are made of Brass frame and G.I. frame of dia 200 mm, 300 mm & 450 mm· Normally Brass Sieves are manufactured in 200 cm dia and frame is spun brass, joint less· The Sieve cloth used is standard SS or phosphor bronze wire mesh. Lid and Receiver· Made of brass for 20 cm or 8” dia sieves

We are manufacturers and exporters of Slump Cone that finds application in determining the consistency of freshly mixed concrete, where the maximum size of the aggregate does not exceed 38 mm. This equipment consists of one slump cone with handles and foot pieces and ensures hassle free performance at all levels of operations. Technical SpecificationThe slump cone has internal dimensions 20 cm dia at base 10 cm top dia and 30 cm height Foot pieces can be fixed to the clamps on the base plateThe base plate has lifting handle for easy transportationOne graduated steel rod 16 mm dia x 600 mm long, rounded at one end and graduated in mm, is also supplied

Our range of Sieve Shaker Machine is ideally suited for carrying out sieve analysis of different materials in dry conditions. Fabricated out of cast iron, the body of this machine is very robust and apt for functioning in the harsh conditions as well. Further, the base is made of M.S. Sheet, which ensures resistant to corrosion and the top rotating plate is constructed of cast aluminium complete with arrangement for fixing 8"/20 cm or 30 cm dia sieves with lid and receiver.Specification:Sieve Shaker Motorised: ? h.p.Motor Compton for 220/230V A.C. supplyTimer 0-60 minutes is provided in the circuitRotation of sieve stage 12 per minuteSimultaneous tapping 500 per minuteOil bath for machine partsOil level indicator

We are Manufacturer & Supplier of ISI Safety Helmet in Yellow, Green.   Specifications:Aktion Safety helmet Ratchet type for engineers , in Yellow , White , Blue , Green and Orange colors. Rs 100 per pc.

We are one of the most trysted manufacturers and exporters of a precision engineered range of Moisture Measuring Meter that is used for measuring the moisture content in many substances such as wood and concrete. This non destructive type testing equipment is also used in measuring the moisture content of a building material and measure up to a range of 35% of moisture content. Estimating compressive strength of concrete, this is widely used in the construction industry.Types Available:· Wood moisture Meter· Concrete wood moisture meter· Soil Moisture meter· Moisture meter-Hopper type· Moisture meter-Needle type

Laboratory Concrete Mixer (Motorized) Our concrete mixer laboratory type is electrically operated are is designed to remove the burden- some work of hand mixing. We assure that these thoroughly uniform mixed batches are produced by us. In this, the counter balanced drum is easy to tilt 1.1/2 to 2cu.ft.mix and the total drum volume is however 3cu.ft. It is mounted on a sturdy rubber tyre stand and the drum is mounted for end discharge and equipped with end towing pole. Further on, it is equipped with ? h.p. electric motor and is suitable for operation on 220/230 volts A.C. single phase.   Laboratory concrete mixer (Hand Operated) Our concrete mixer is hand operated and is best suitable to mix 1 cuf to 1.1/2 cft material and further on it is mounted on two rubber tyres.

For testing concrete cylinders for compressive strength tests. Specification : The moulds is split vertically into two parts. The mean internal diameter in within +/-0.2mm and height is within +/-1mm. The ends are machined to +/-0.05. The base plate and top plate are machined flat to +/-0.03mm. Mould cylinder, cast iron, 15cm dia x 30cm height. Mould cylinder, cast iron, 16cm dia x 32cm height. Mould cylinder, cast iron, 10cm dia x 20cm height. Mould cylinder, cast iron, 30cm dia x 60cm height

Avail from us a precision engineered range of Concrete Cube Mold that is widely used for cement testing purpose. This equipment, especially designed and fabricated for testing of the cement is ISI Mark (IS:10086) and ensures complete hassle free performance. Our clients can place an order for this equipment with us in their specifications and we promise to make this product available to them at highly competitive prices.Features :Available with base plateCube molds are according to Indian and British Standards

Compression Testing Machine 1000KN or 2000KN (100 Tons or 200 Tons) Capacity (Economy Channel Model) Hand Operated fitted with 15 cm dia load gauge. Designed for testing of Cement, Concrete Moulds of Various sizes 15cm x 15cm x cubes, 10cm x 10cm x cubes, 7.06 cm x 7.06 cm cubes, 15cm x 30cm cylindrical mould, bricks can also be tested by the help of adjustable hand wheel.

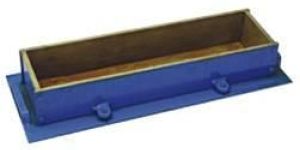

For casting, concrete specimen for flexure tests Specification : Made of Cast Iron / Mild Steel. The mould are made of 4 plates assembled together. Each mould is supplied complete with base plate. Faces are machined flat to ± 0.2mm. And finished in size to 0.2mm.10 CM X 10CM X 50CM15CM X 15CM X 70CM15CM X 15CM X 75CM 10CM X 15CM X 60CM4CM X 4CM X 16CM

We are engaged in manufacturing and export of Auto Level Equipment that is an ideal choice for surveying and engineering level applications hence obtaining correct accuracy levels. FeaturesRobust constructionEnsures complete accuracy for years under severe conditionsAvailable in different modelsProvided with durable Lithium batteryEnsures easy adjusting featuresAvailable in Aluminum telescopic tripod standIncludes hard-shell carrying case with dual latches, plumb bob, Allen wrench, adjusting pin, and instruction manualEnsures accurate levellingPortable
