Excel Electronics Makarpura, Vadodara, Gujarat

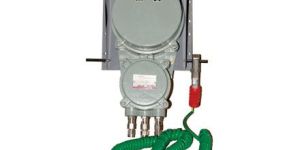

Static electricity is a frequent source of ignition. An electrostatic charge can be generated while handling conductive liquids or powders. Static charge can lead to the electrical charging of conductive objects such as barrels, filling pipes, tanker trucks, FIBCs (Big Bags) etc. Static Sparks can be prevented by discharging to proper earthing the objects. Vehicle Intelligent Earthing confirmation System (Integrated system of ECR-Plus & ECR-2) Name itself indicates that it is an intelligent system for tanker truck application. Here our Earthing Confirmation System confirms connection of earthing to an Object (Tanker Truck) and also checks earthing loop between earth and tanker during loading and unloading of tanker trucks. Earthing confirmation system operates in stages, first, it checks whether the earthing, guarantees a quick and safe dissipation of electrostatic charge to the earth. Then it dissipates the static residual charge from the tanker to earth, then after it checks, identification of tanker to be earth. Now in any given condition, loss of connection of clamps, or loosening of clamps, damage to conductors happens, the earthing confirmation system will stop the process of loading / unloading with complete command over pump for interlocking without any human interference. Salient Features of ECR-Plus : Constant monitoring of earth loop between earth and tanker truck Human error Ruled out by tanker verification Interlocking of pump Intrinsically Safe Relay ATEX CERTIFIED CE CERTIFIED Note : ECR-Plus is also available without tanker identification function (As model ECR-1) for reactor vessels (process equipments) earthing confirmation purpose. Also can be used for Tanker loading/unloading if identification is not required. ECR-Plus system Includes : FLP/WP Enclosure of Aluminium Alloy Red Indicated Lamp – red light glows during earth open condition, vehicle not identified, not proper earthing. Green Indication Lamp – green light glows in healthy condition allowing pump to operate loading/unloading One or Two Nos. Stainless Steel Earthing clamp with / without tungsten carbide teeth Earthing Clamp holder Two change over potential free relay Technical Specification Power Supply : 230VAC OR 110VAC – 10% + 15%, 45-65Hz., (Optional 24 VAC) Inputs : (1) True or Verified Earth at loading / unloading Area (2) Probe from Tanker Range : (Intrinsically Safe) Earth Loop Resistance 0 to 10 adjustable through external display console at factory on demand. Permissible Circuit values Ignition Protection class : IIC (1)G [Ex ia Ga] IIB/IIC, IIC (1)G [Ex ib Ga] IIB/IIC Cable Entries : Four at bottom of enclosure. Relay output Rating : Two change over 250 V/ 5A (Resistive Load) Weight : Approx. 6.5 Kg. (without Clamp) Ambient Temperature Max. 55C Cable type : Two single core or two core single cable of 5 mtr. (Option in straight and spiral) Clamp design : SS 304 crocodile type / tungsten carbide (optional) General FLP Enclosure Certification : Type of Protection : CIMFR / CCOE for Intrinsic Safety (Ex-i) Flame proof (Explosion proof) Ex-d, Area Classification : Zone 1 & 2, Gas Groups : IIA/IIB, T6 IP Protection : IP 65 / IP 66 Apparatus standard : For Ex-d – IS 2148 / 1981 (Re-certification based on IEC 60079 series is under process) Material : Cast Aluminium Alloy LM-6

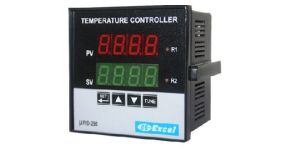

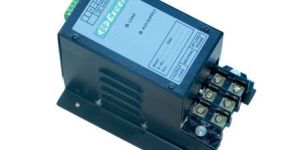

uPID – 296 : Two Line PID temperature Controller uPID – 196 : One Line PID temperature Controller Features & specifications Universal selectable Input :- RTD-PT 100 , Thermocouple K Type (Chromel – Alumel), Thermocouple J Type (Iron-Constantan), Thermocouple R Type (Pt-PtRh 13%), Thermocouple S Type (Pt-PtRh 10%), Analog – 4 to 20mA DC Range : RTD-PT 100 (0.1 *C) – -99.9 to 400.0 *C, RTD-PT 100 (1 *C) – -99 to 400 *C, Thermocouple K Type – 0000 to 1200 *C, Thermocouple J Type – 0000 to 750 *C, Thermocouple R Type – 0000 to 1750 *C, Thermocouple S Type – 0000 to 1750 *C, Analog – -999 to 9999 Resolution: RTD-PT 100 – 1 *C or 0.1 *C, Thermocouple K Type – 1 *C, Thermocouple J Type – 1 *C, Thermocouple R Type – 1 *C, Thermocouple S Type – 1 *C, Analog – Selectable Accuracy: Better than +/- 0.5% of Full Scale Compensation: Automatic Cold Junction Compensation One point calibration for RTD-PT100, One point calibration for all Thermocouples, Two point calibration for 4 to 20mA DC Input sensor selection through front keyboard Control Type : On-Off, PID Control Logic : Heating or Cooling PID Parameter : Auto Tuning or Manual Tuning, Proportional Band, Integral Time, Derivative Time Relay Output : 2 nos. of Relay Output (OPTIONAL), PID action for first Relay only Analog Output : Retransmission or Control 4 to 20mA Output Selectable Four Keys on the front panel for setting of Relay – Set Point, Control Logic, Hysterisis in Temperature, Delay in Time, PID Tuning – Auto or Manual, PID Parameter – Proportional Band, Integral Time, Derivative Time, Input Sensor Selection Size 96 mm X 96 mm X 65 mm

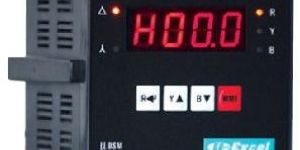

LED seven segment Display Annunciation indicates the type of fault Providing 2.5, 5  & 10C curve for overload With Extra protection class CT ( 20, 35, 55 mm ID ) Modbus RTU protocol RS-485* Reset inhibit Function

Power Supply : 230 V AC

Phase : 1 Phase, 3 Phase

Size : On request

Display Type : LED Seven Segment, 4 Digit
