Supertech Conductors (Gujrat) Private Limited GIDC, Valsad, Gujarat

Our company is a pioneer name in manufacturing MICA segments. The entire range of these MICA segments are made as per customer drawings and specifications. Our segments are suitable for Hitachi, TAO, BX. Traction Motors. Further its application lies in:  Industrial D.C Motor  Traction Motor

We are one of the most recognized name in manufacturing profiles and ground rods which are manufactured as per customer's drawing and specifications. Its major application lies in electrification and earthing. Other than these, we have produced many different surfaces of profile bus bar (I Beam, Angle, Channel for trolleys), ground rods, ground copper plates, and lightning rods.

Our company is widely known in the industry for our qualitative range of copper strips. These copper strips are available in measurements of 0.8 mm thickness to 10 mm thickness and 5 mm width to 100 mm width. Its major application lies in Lugs, Copper Flexible, C.T. Coil, Switch Gear Components and Earthing.

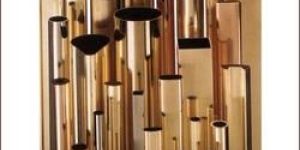

Electrical and General Engineering Industries. Manufacturing Range: Circumscribing circle diameter: * For Extruded Product: 4.125" Max* For Drawn Product: 4" Max Cross Sectional - 1/2 sq. Inch minimum.  Element Thickness: * Extruded: 4mm Min.* Drawn: 3mm Min.  Length:* Extruded: 50ft Max weight limit upto 55Kgs* Drawn: 10ft Max. weight limit upto 55Kgs  Tolerance:* Extruded: +0.30" Min. on any dimension * Drawn: +0.005 Min. on any dimension  Temper: * Any standard desire temper.  Material: * We can supply section in the following copper and copper based alloys. Copper : Electrolytic Copper (ETP)--- DHP Copper--- DPA Copper--- DLP CopperCopper based alloy :---Brass 63/37---Brass 70/30   Shapes: Profiled Tubes and Rods in Reeded, Oval, Rectangle, Polygon, Square and Twisted shape.

Based on our streamlined manufacturing facilities, we manufacture qualitative copper rods. These copper rods are available in a range 3 mm to 80 mm Dia. All our rods are extensively used for diverse applications. Its major application lies in:  General engineering purpose  Earthing Rods  Forging components

We are a reliable name in manufacturing copper high conductivity bars which are available in a range 5 mm thickness to 40 mm thickness and 5 mm width to 300 mm width. It major application lies in:  Industrial Bus bar  Transformer industries  Switch Gear Industries  Control Panel

We are trusted name in manufacturing commutators which are manufactured as per client's drawings. These copper commutators are extensively used in various applications such as traction motor. Our copper conductors are available in various specifications. Following are the specifications pertaining to its measurement, dimensions and applications:  pp- 175 355 290 15 100 175 35 Traction Motor for EMU-133 AY/AZ  pp- 186 480 425 24 220 186 125 Traction Motor GE 752 for diesel LOCOS  pp- 216 509 420 23 195 216 160 Traction Motor WCM/4 LOCO  pp- 230 455 325 17.5 122 230 50 Traction Motor EMU 253 BX  pp- 232 440 325 16 11 232 50 Traction Motor GE 761 for diesel LOCOS  pp- 232 527 450 21 188 232 125 Traction Motor WCM/1 &5 LOCO  pp- 276 500 390 17 163 276 100 Traction Motor TAO 659  pp- 312 534 424 20 148 312 90 Traction Motor MG 710  pp- 348 475 397 16 162 348 100 Traction Motor WCM/2 LOCO  pp- 368 494 438 16 136.5 368 90 Traction Motor WCM/3 LOCO  pp- 432 752 673 26 184 432 225 Traction Motor EF/1 LOCO

Our copper commutator sections are available in measurement of 6 mm width to 200 mm in various thickness. These copper commutator sections are manufactured as per custom requirements. Its major application lies in switch gear components
