Water cum Fire Tube IBR Steam Boiler
This design can burn a variety of fuels like Coal, Lignite, Rice Husk, Wood, Bagasse, Groundnut shells, and several other fuels thus providing you with lowest energy costs depending upon the fuel availability in your area Product Features : » This is a unique design membrane water wall type boiler combining the advantages of water tube & smoke tube designs. » The radiation zone of the furnace is covered on three sides by water tubes forming the first pass and the conventional smoke tube shell has tubes lined up forming the second and third pass of flue gases. » Thus the water wall furnace recovers the radiation heat of the furnace and the smoke tube shell provides large water & steam holding capacities to give maximum advantage. Advantages 1. Flexibility of fuels with choice of agro-waste fuels.2. Combines the advantage of water tube and smoke tube designs.3. High thermal efficiency and low operating costs.4. Dependable quality of components like valves, pumps, safeties & instruments.5. Can be converted to liquid / gaseous fuels as well.6. Heat recovery unit may be offered for increased efficiency.7. Easy access for cleaning and inspection.
Type : Horizontal 3 pass design of Membrane Wall-cum-Smoke Tube Type
Capacity : 1000 kg/h to 2000 kg/h ( F & A 100° C )
Fuel : Fuel: Coal, Lignite, Wood, Rice husk, Petcoke, Briquette, Bagasse etc.
...more

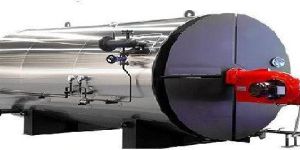

thermopac boilers
Modular Construction ensures quick & simple maintenance formalitie Assembly design ensures perfect four passes of flue gase All inner surfaces of unit easily accessible for cleaning & repairs. All heat transfer parts made of heavy duty seamless Boiler quality steel tubes giving long life, safe working & wide operating Pressure range.
...more
OIL FIRED PACKAGE TYPE STEAM BOILER
We are a well known experienced manufacturer of Oil Fired Steam Boiler. Our offered products are equipped with large heating areas and large content of co2 burners, which helps in maintaining clean combustion. We use most advanced technologies and high grade raw materials to deliver premium quality product. In addition, these products are available in competitive prices and customized sizes. Features: » Fully automatic» 88% thermal efficiency» Smooth operation» Completely safe and no explosion hazard» Low maintenance Technical Features: » High thermal efficiency of 90% ± 2 on NCV of fuel without Heat Recovery Unit » High steam dryness fraction increases usable heat » Fully wet back construction ensuring maximum heat absorption by water » Furnace with high radiant heating surface maintaining safe furnace wall temperatures much below the permissible limits » Large furnace volume ensuring complete combustion » High heat transfer areas giving longer boiler life » High steam space & water space providing ability to quickly respond to fluctuating load » Optimum outlet flue gas temperatures » Combustion air pre heater / feed water pre heater available as optional heat recovery units » Continuous modulating, fully automatic, pressure jet type burners » Robust & reliable flame monitoring system » Easy maintenance » Robust & reliable fuel pre heater (required in case of burning heavy oils) which is of special steam cum electric design with concentric coils in thermic fluid bath avoiding direct contact of fuel oil with electrical heating elementPowder coated, well lit control panel with systematic wiring layout with tag nos. etc. for easy trouble shooting as well as better life in industrial environment » Prompt & reliable after sale services with “customer first” attitude Applications: Our oil fired boiler has applications in various types of industries like chemical, pharmaceuticals, food processing, laundry, hotels, hospitals, dairy, edible oil, textile etc. where steam is required for indirect & direct process heating purpose.
Fuel : LDO / FO / Gas / Dual Fuel (Oil cum Gas)
...more

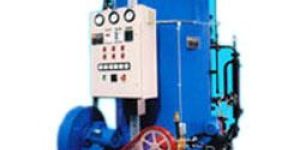

Non Ibr Steam Boiler
These compact sized devices are available with us in various technical specification, range and models. Our devices are acclaimed for their high productivity and reliability. we also offer these devices at affordable rates. Outside the purview of Indian Boiler Regulations (IBR), so no annual IBR Inspection formalities required & certified boiler attendant is not required to operate the boiler, Feed water pre heater is supplied as a heat recovery unit which recovers maximum possible waste heat from outgoing flue gas increasing the overall efficiency of the boiler. Powder coated, well lit control panel with systematic wiring layout with tag nos. etc. for easy trouble shooting as well as better life in industrial environment.
...more
Non Ibr Boiler
We are well-known Non-IBR Steam Boiler manufacturer in India . We offer fuel and energy efficient boiler. Our Boiler delivers high steam output, which is characterized by high steam pressure and temperature. These compact sized devices are available with us in various technical specification, range and models. Our devices are acclaimed for their high productivity and reliability. we also offer these devices at affordable rates.Outside the purview of Indian Boiler Regulations (IBR), so no annual IBR Inspection formalities required & certified boiler attendant is not required to operate the boiler, Large furnace volume, high radiant heat transfer area & high convective heat transfer area ensuring long life of boiler.
...more
Industrial Steam Boilers
industrial steam Boilers . These products are sturdily constructed and offer trouble-free performance with accurate results. High end technologies and modern machines are used while manufacturing these products. We are offering these products at affordable rates.Small Industrial Boiler Design, Manufacturing & Inspection is as per Indian Boiler Regulation Act.Very easy for cleaning from Water Steam side & also from Smoke tubes side.
Capacity : 200kgs / hr. to 500kgs. / hr
...more
Industrial Autoclave
We are well-known industrial autoclave manufacturer. With the help of well equipped infrastructure and team of experienced workers, we have been capable to serve our clients by offering high quality industrial autoclaves, which are absolutely in tune with their requirements. Use of premium grade material and state-of-the-art technology provide our products an incomparable identity. Our range of robustly constructed industrial autoclave is widely used in medical, pharmaceutical and agriculture industry.
...more

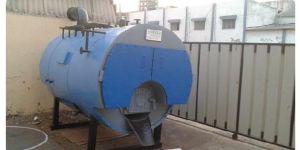

IBR Steam Boiler
Solid fuel fired with fully wet back design IBR Steam Boiler are Offered in Coal, Wood. These boiler are 3 pass horizontal shell type integral furnace, flue tube, solid fuel fired high Efficient boiler. This boiler is fully wetback, packaged boiler, conforming to the latest revisions of Indian Boiler Regulations. (IBR-1950). These boilers are offered in various capacities of up to 2 TPH and working pressure of up to 10.54Kgs/cm2 Salient Features:• Maximum possible absorption of radiant heat • Avoidance of flame impeachment on the rear of the furnace. • Prevention of clinker formation. • Enhanced life of furnace. • Low cost heating, trouble-free operations & long-lasting • Available with fixed grate and rocking grate furnace • Available in shell & smock tube types • Works on natural proper water circulation • Provided with ID fan for maintaining to draught • Safety valve, steam stop valve, water level gauge glass & control • Switches mounted on the boiler • Multi-fuel option coal/lignite/wood/brickets.
Capacity : 600 to 2000 kg/h F & A100º C
...more

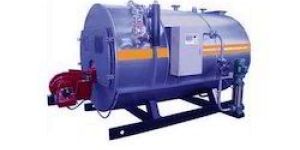

Fire Tube Boiler
This design can burn a variety of fuels like Coal, Lignite, Rice Husk, Wood, Bagasse, Groundnut shells, and several other fuels thus providing you with lowest energy costs depending upon the fuel availability in your area. This is a unique design membrane water wall type boiler combining the advantages of water tube & smoke tube designs. The radiation zone of the furnace is covered on three sides by water tubes forming the first pass and the conventional smoke tube shell has tubes lined up forming the second and third pass of flue gases. Thus the water wall furnace recovers the radiation heat of the furnace and the smoke tube shell provides large water & steam holding capacities to give maximum advantage.
...more

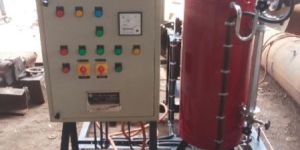

electrode boiler
We are leading manufacturer and supplier of small capacity electric fired Non-IBR boiler. Major advantage from these boilers are following : No Pollution Environment-Friendly.Efficiency as high as 95%, No chimney, No Storage of fuel, No messy handling, Stops generating steam automatically when there is no water – Safe Design. Clean operation, Compact, Quick response to heat demand Which makes Electrode Steam boiler as first choice for every prestigious projects. We are well known among electric steam boiler manufacturers . These boilers are offered in various capacities of up to 100 Kgshr – 300 Kgshr and working pressure of up to 15 Kgscm2.
...more
