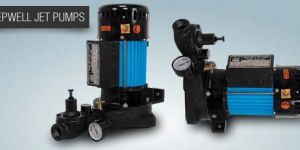

Deep Well Jet Pumps
Pump Body : Fe 200 Cast Iron
Motor Body : MS Sheet Metal
Impeller : Cast Iron (Anti Corrosive Coating)
Shaft : SS 410 / EN 8 (Optional)
Motor : Single phase 230V – 50 Hz CSR, Ventilated motor with Thermal Overload Protection
Insulation : Class B
Bearing : 6203/4 ZZ Nisiki
Stamping : CRCA - LC Steel / CRNO (M47)
Winding : Enamelled copper wire winding
Deep Well Pump
The expansive infrastructure and environment accredited with ISO 9001 quality certification, latest engineering softwares, high-tech machinery, futuristic pumping technology and high caliber workforce facilitate the production of flawless and efficient products on par with international standards under the brand name of "Tormac". The well equipped R & D wing stays alive to the changing global trends gta 5 hack and comes out with viable solutions for innovative product development and upgradation.

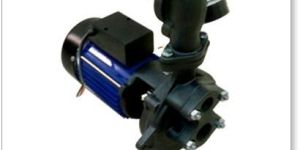

Deep Well Jet Pumps
Specification Flow Rate: 2500 LPH Head Range: Up to 60 mtrs Construction Characteristics: Motor Body: Fe 200 Cast Iron / Extruded Aluminium Pump Body: Fe 200 Cast Iron Impeller: Cast Iron ā Powder coated / ERP coat Shaft: SS 410 / EN 8 Motor: Single phase 230 Vā50 Hz CSR, TEFC motor with Thermal Overload Protection Insulation: Class B Bearing: 6203 ZZ / 6204 ZZ Stamping: M47 / CRCA - LC Winding: Enamelled copper wire winding Salient Features Imported motor protector High self priming suction. Wide voltage design 180 V-240 V. Permanent Split capacitor (CSR). Double shielded bearings (ZZ). Non corrosive brass forged impeller. High quality aluminium extruded body. Applications Water lifting for bunglows, hotels and industries. Agricultual Irrigation. Gardening. Industrial clean water pumping. Water circulation. Water lifting from bore wells. Home, Offices and small farms. High raise buildings. Car washing / Service centres. Pressure boosting. Industries.
Deep Well Jet Pumps
The company is well-reckoned for offering Deep Well Jet Pumps in Tamil Nadu (India). Our Deep Well Jet Pumps are specifically designed to achieve high discharge at high/low heads. Besides many significant features of our Jet Pumps; durability and reliability are the key attributes. The Well Jet Pumps are suitable for industrial, mini agricultural and domestic use. They can accomplish high delivery rates under continuous as well as heavy duties. They have the ability to lift water from 100mm (4’’) bore wells. One can obtain our Pumps at reasonable rates. Salient Features : Continuous discharge at high heads Gun metal impeller & jet assembly Cast iron pumps portion with suction & delivery flange connections Stainless steel motor shaft High quality extruded aluminum motor body Ceramic / graphite seal combination
Cast Iron Deep Well Hand Pump
