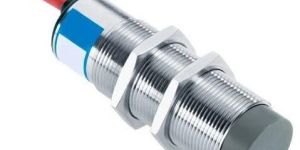

Inductive Proximity Switches Dealers in Pune

• Brand Name: SMARTsaa
• Accuracy: 0.5%
• Switch Type: Inductive
• Material: Stainless Steel
• Sensing Distance: 5 - 12 mm
• Input Voltage: 10-30 V DC, 230 V AC
• Frequency: 50 - 60 Hz
• Working Temperature: 0 to 70 degree Celsius
• Protection grade: IP67
• Model: CLT
• Application: Industrial

Proximity Switches are solid state switching devices based on Eddy Current Loss Principle. An alternating electromagnetic Field is developed at the sensing face of the proximity switch. When any metallic object enters this field the eddy current increase. Inductive proximity switches are the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment.As a pioneer and market leader, Akshay Systems offers innovative, high quality inductive switches to meet the needs of the automation and process control markets. Our experience, flexibility and customer focus continues to allow us to offer custom designed solutions for the most unique and demanding applications.

It senses only metallic objects; Useful for medium counting speed; Short sensing gaps. These switches are available from 4 mm diameter (M4) to 140 mm diameter (M140) with sensing distance from 0.5 mm to 100 mm. These switches are most reliable option for applications in Machine tools, Foundries, Rolling mills, Automobile, Textile, Pharmaceutical, and Material Handling Systems.

• Diameter: M50
• Flush Switching Distance: 18mm
•  Non Flush Switching Distance: 20mm
• Housing Material: Nickel plated brass
• Max Load Current: 250mA
• Supply Voltage: 10-30 Volt DC
• Switching Frequency: 100Hz
• Response Time: 1ms/1ms
• Protecting category: IP67
• Operating Temperature: -25ºC- +70ºC
• Short Circuit Protection: Yes
• Connecting Type: 3mtrs,2core pvc cable

Inductive Proximity Detectors - AEROSPACE     Today inductive proximity switches/sensors manufactured by CROUZET can be found on the Major programs such as:   Airbus family: A319, A320, A321, A330, A340 Boeing 717 ATR 42/72 Falcon 50, 900, 900EX, 2000 Bombardier Challenger, Global Express, CRJ700 NH90 FOKKER 70

We are offering pnp npn inductive proximity switch. protocontrol offers variety of proximity switches & sensors for automation. More than 3500 varieties of switches are offered under one roof. These include pnp or npn type,tubular threaded switches from m5 to m 80, square rectangular, slot types. The supply voltage available is ac, dc and ac-dc universal. Special namur switches are certified for use in hazardous area. Models with quick disconnect plug are offered for ease of wiring. Switches can directly be connected to load like plc. inductive proximity switch: is used for position sensing of metallic objects. Suitable for part sensing, job counting, position sensing. They are also used for speed sensing, direction and rotation sensing of any moving or oscillating machines. dc switches are divied into two catagories according to load connection 1. Load connected between supply wire and output wire (npn) 2. Load connected between ground wire and output wire (pnp)

• Material: Stainless Steel
• Shape: Cylinderical
• Brand Name: Schneider
• Current Rating (Amps): 200 mA
• Power/Voltage (V): 20 to 132 Vac
• Repeat accuray: 0.02 mm
• Use: End-of-stroke sensing of pneumatic and hydraulic cylinders

It senses only metallic objects; Useful for medium counting speed; Short sensing gaps. These switches are available from 4 mm diameter (M4) to 140 mm diameter (M140) with sensing distance from 0.5 mm to 100 mm. These switches are most reliable option for applications in Machine tools, Foundries, Rolling mills, Automobile, Textile, Pharmaceutical, and Material Handling Systems.

•  : Object Material Correction Factor M.S. 1 S.S. 0.8 Brass 0.5 Auminum 0.45 Cu 0.4
• Object Material: Correction Factor
• M.S.: 1
• S.S.: 0.8
• Brass: 0.5
• Auminum: 0.45
• Cu: 0.4

Operating PrincipleThe LC Oscillator circuit generates the electromagnetic field over the active face, energy is drawn from oscillator resulting damping of the oscillator. This change is detected by electronic circuit and is converted into an effective output signal.   ApplicationFor position sensing in Automation.• Automobile• Food• Pharmaceuticals. • Steel• Cement • Engineering Industries   Sensing DistanceThe sensing distance is the distance between the target and sensing face at which the switch operates. The sensing distance is usually specified considering M.S. as sensing objects.   Correction Factor For Inductive Proximity Switch
