Fabric Folding Machine Dealers in Thane (4 products available)

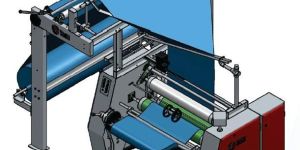

! Suitable for all kinds of fabric ! Variable speed from 0-30mtrs/min. ! Counter meter for length measurement ! Selvedge guider for uniform plaiting. ! Tensionless handling of fabric through positive drive. ! Independent variable feed drive for tensionless feed also fitted with auto loop level positioning mechanism ! Maximum working width up to 380 cms ! Pile height 35 cms ! Adjustable fold length 75 – 110 cms ! Adjustable table lowering through special electro-mechanical controls depending upon the fabric thickness ! Table up down movement through electrical controls.

We are capable of delivering the orders on time and at any desired Thane(India) as we are supported by up-to-the-minute facilities. With a well-organized set up, we serve our buyers from Thane(India) to every nook and corner.   Standard Features End detector Uniform tension controls Edge guider at input Full foreard & reverse Electronic length counter meter Auto sevedge on doubling the fabric  Variable roll compactness   Optionals : Auto cross cutting           Specifications : Machine : Fabric Folding Make : Yash Model : Foldmatic Premier Industrial Field : Woven/Non-woven/Technical Textiles Working Width : 1800 / 2200 / 3400 /3800 mm Machine Speed : 5 - 50 mtrs./min Roll Diameter : Book Fold – 40 mtrs. / Roll dia – 500 mm Input Options : Single or Multiple Output Options : Single or Multiple Panel : IP55 Input Supply : 440V AC. 3 Phase + Neutral & Earth Wire, 50 Hz. # Can Be Client Specific Certification : CE Marking

• Color: Gray + Red
• Voltage: 440V AC. 3 phase + neutral & Earth wire, 50 Hz.
• After-Sales Service Provided: Overseas service center available
• Brand Name: Foldmatic - DFRM / Premier
• Condition: New
• Warranty: 12 months from the date of despatch
• Power(W): KW
• Port: Nhava Sheva Port - Near Mumbai
• Input Options: Single or Multiple
• Output Options: Single or Multiple
• Supply Ability: 100 Set/Sets per Month
• Packaging Details: LCL - Wooden box FCL - Metal Pallet + Stretch Wrapping
• Weight: 1000kg
• Panel: IP55
• Working Width: 1800 / 2200 / 3400 / 3800 mm

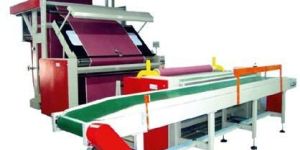

The most advanced, State of art Fabric Double Fold Machine Model Check Master Finish is a pride of "Gayatri " & is comparable Tensionless Fabric Inspection Machine to most high and technology machine. This Model covers full range of possibilities and is suitable from most delicate to heavy fabric quality promising high accuracy to fabric double fold machine handing equipment and lenght measurement. Check Master Finish is equipped with PLC Control which has been devloped to considerably reduce labour, improve productivity and operator efficiency. A dream for all quality textile machine manufacturer supplier and exporter of tensionless fabric inspection machine in Mumbai India and all over the world. Fabric Double Fold Machine Suitable for all kind of fabrics Variables speed 5- 50 Meters / Min Full Forward & Reverse run Top and Bottom Illumination Mechanical Counter Meter Auto tension control Accurate Fabric Edge Control Adjustable angle of Inspection table Scroll Roll and Bow pipe to control crease Fabric Double Fold Rolling Machine Auto Stop at Feed Electronic Counter Meter Hood on Inspection Table Foot Switch Control Paper Tube Storage Rack Wide Measuring Scale Auto Cutting, Doffing and Weighning Selvedge Shifting Device for Thick Selvedge Tensionless Fabric Inspection Machine Roll Compactness Software for Data Logger
