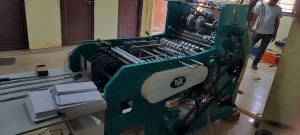

JE-50 Envelope Making Machine
Power : 7kw
Maximum. Size (single Up) : 304*457MM (12/18 inches)
Minimum Size : 152*127MM (6/5 inches)
Control Device : Mitsubishi 2 HP
Paper Thickness : 55 to 200 GSM
Machine Dimension : 2800*1320*1590mm
Machine Weight : 2300 Kg
Speed : 9000 Pcs/hour
Vaccum Pump : Customized machine by Calabro Pumps 3 phase
Motor : Customized Motor Locally By Hemal Electrical
Miniature Circuit Breaker : Two MCB given one is 6 amp single Phase and 32 amp 3 phase
Gum : Fevicol Pidilife Cpw Your Company have to Arrange.
Mechanical & Electrical Drawing : We Don’t Provide Drawings.
Ac Motor & AC Drive : Mitsubishi Company Ac Motor, Ac Drive & Contractor We Used in all Machines.
Bearing : FAG/NCB/TOSHIBA we used in all machines.
Tool Box : All kind of spanners, Allen Key Set, Screw Driver and Cutting Plier would be provided by us.
Payment Terms : 40% Advance for Booking 60% Before Machine Dispatch.
Delivery : 55 Working Days After Order Confirmation
Envelope Window Pasting Machine
We are engaged in offering our clients Fully Automatic Envelope Window Pasting Machine. These are fabricated under the supervision of experts, who ensure that these are at par with the highest st&ards of quality. The machines offered by us are integrated with a 1HP direct current motor, with thyraster control that enables the users to get desired result. Our machines come with the following specifications.
envelope making machines
Envelope making machines It is of highest st&ard of quality & ensures the machine speed of 150 blanks min. We offer this range in varied specifications & sizes to meet the diversified needs of our clients.
Automatic Envelope Making Machine
850,000 Per Piece
Capacity : 10000 Sheet Per Hour
Phase : Three Phase
Material : Mild Steel
Brand/Make : Swara R4
Automation Grade : Automatic
Machine Weight : 900 to 1500 Kg
Power Source : Electric
Brand : Swara
Window Envelope Pasting Machine
