SAVITRI ENGINEERING INDUSTRIES Katra Wazir Khan, Agra, Uttar Pradesh

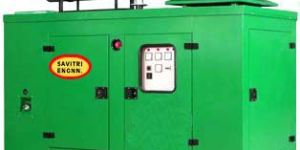

Silent Genset Single and Double Cylinder Model. K.VA K.W Phase Power Factor Cooling Engine BHP SEI- 500S 5.0 5.0 Single 1.0 waterAir Cool 7.5 SEI- 600S 6.0 6.0 Single 1.0 waterAir Cool 10.0 SEI-750S 7.5 6.0 Single 1.0 waterAir Cool 12.0 SEI- 950S 9.5 9.5 single 1.0 Water Cooled 14.0 SEI- 1000S 10.0 10.0 Single 1.0 Water Cooled 15.0 SEI- 950S 9.5 9.5 single 1.0 Water Cooled 14.0 SEI- 1000S 10.0 10.0 Single 1.0 Water Cooled 15.0

Gland type Centrifugal Water Pump Model Size mm RPM Head (Meters) Discharge L P S Engine Rating SEI-65 80 x 65 1500 15 15 5 SEI-8 80 x 80 1500 15 16 5 SEI-80 100x80 1500 12 17 6.5 SEI-10 100x100 1500 12 17 8

ENGINE Cooling Water No. of Cyl. One Fuel H.S. Diesel Speed 1500 RPM SFC 1 gmsHP-Hr A. C. GENERATOR Voltage 230415 V Phase SingleThree Frequency 50 Hz Regulation ± 5 % Max. Insulation F Class Mounting Foot

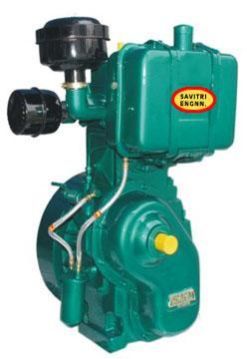

ENGINE Rating 3.5 to 14.0 HP Cooling Water Cooled No. of cyl. One Fuel High speed Diesel Type Vertical ,4-stroke, compression ignition Injection Direct by multi-hole nozzel RPM 1500-1800 Sp. Fuel Con. 169 to 172 gramshp-hr Fuel tank 5 to10 liters Rotation Clockwise looking at the flywheel Starting Handle start with cranking

A. C. GENERATOR Voltage 230415 V Phase SingleThree Frequency 5060 Hz Regulation ± 5 % Max. Insulation F Class Mounting Foot RPM 15001800 CENTER HEIGHT 2.2 KVA 140 MM 3.5 TO 10 kW 150 MM 12 TO 16 kW 200 MM
