AC Motors Dealers in Odhav, Ahmedabad

Electronic Start-Stop Controls: Fault Indication Electronic overload protection - with high level accuracy calibration and inverse time current characteristics. Inbuilt current sensing single phasing protects motor against single phasing upto motor terminal. Unbalanced current circuit provides protection against unbalanced voltages supply. Low/high voltage cut-off and indicators against sudden and extrime low/high voltage with hysteres gaps.

These Motors are Specially Designed for operation with Variable Frequency Drives at lower RPM.The Windings are such that Every Parameter is taken care at lower RPM of Motor.As such, our Standard Motor Are suitable upto 50% of Rated Frequency.

With the outstanding storage facility, we are capable to meet urgent and massive requirements of the customers. Also, we keep it updated to meet industry standards. We are flexible in making deliveries in the committed time span owing to the well-organized and maintained transportation system.   Model : HDP-LLC   Facility: Fully Microcontroller based technology, Auto-Manual facility availabale, Electronic Start Stop facility, Led indication for tank level, 7 segment display for displaying volt and ampere, Over load protection, Dry run protection, Cyclic timer facility(optional), Auto starting torque No man power required, Avoid overflow & dry run, Save water and energy, High accuracy & long life durability, Stainless still sensor, Powder coated metal body,   Application : Suitable for 1 Phase sub mersible motor.   Range: Amp. Range -  2-20amp. Dry run Range -  0-20amp. High voltage protection above -  290V Low voltage protection below-140V

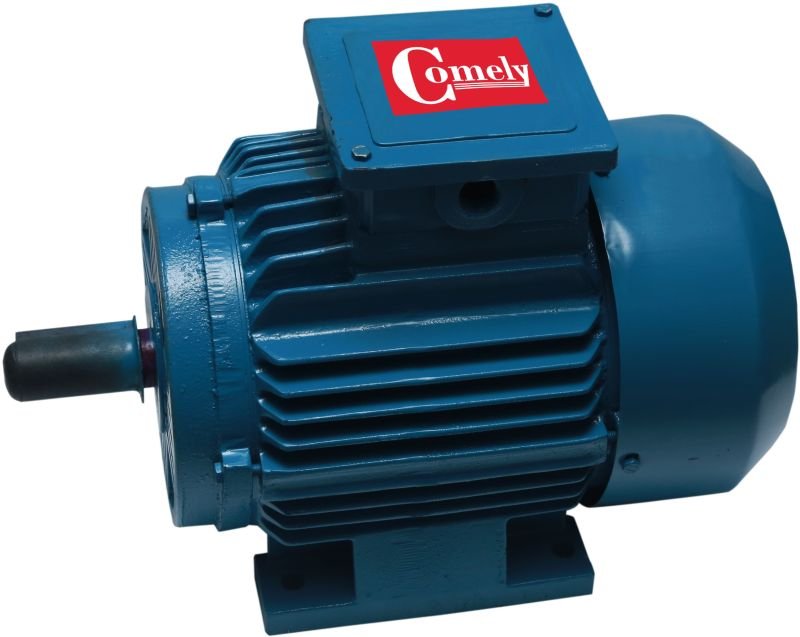

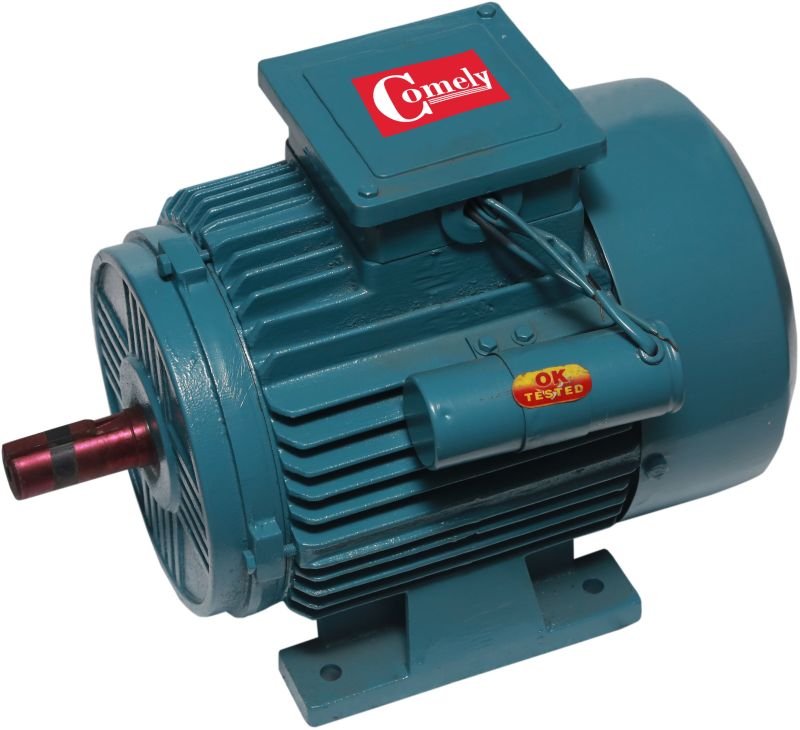

Our comprehensive range of AC Induction Motors is offered at market leading prices. These AC Induction Motors are the most commonly used AC motors in industrial applications because of the simplicity, rugged construction, and relatively low manufacturing costs. Avail Induction Motors in different specifications as per the requirement.

The AC Electric Motor, offered by us, can operate in both motoring and braking modes to generate electrical energy from mechanical energy. We are a well-known AC Electric Motor Manufacturer, Exporter and Supplier in India. Technical Specifications Range : 0.125 hp to 120 hp Frame size : 56 to 280 in 2, 4, 6, 8, 10, 12 pole design Standards : conformance: IS 325 Dimension : 1231 and 2223 Cooling& ventilation : IS 6362 Degree of protection :  IS 4691. Ip-54ip-55 (optional) Noise : IS 12065 Voltage : 415v (+_) 6% Frequency : 50 Hz (+_) 3% Duty : s1, s2, up to s8   Class of insulation : B,F Class avail on request Enclose : T.E.F.C. Ambient temp. : 40oc

We are offering ac motor. Ac induction motor is a technique to generate alternating current. We provide three phase motor and single phase motors. We manufacture and export higher quality three phase ac motors to our clients at normal price. These are light in weight and works very fast without any trouble. Specification: terminal box located at right hand side of the drive end side and sealed against ingress of moisture. Capacity range from 0.125 hp to 120 hp frame size is 56 to 280 in 2, 4, 6, 8, 10, 12 pole design. Voltage: 415 v +- 6% frequency: 50 hz +- 3% duty: s1, s2 up to s8 class of insulation: f class as per the requirement of the clients enclose: t.e.f.c.

Offering best quality all kind of electric motors such are induction motors,single phase,three phase motors from 0.5 hp to 20 h.p. A.c. Induction motors available with us are being largely used in various types of applications like pumps, compressors, fans, blowers, lathe machines, plastic & textile machinery, cement plants, flour mills and paper mills etc.

Range 0.10 H.P. to 125 H.P. frame 63 to 280L in 2, 4, 6, 8,10,12 Pole. Standard Performance Conforms to Is: 325 and dimension according to IS 1231 & 2223. Standard Performance Conforms to Is: 325 and dimension according to IS 1231 & 2223. Frame Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminium body up to 100 L frame. Ratings

Three Phase Induction Motors, Electric Motors, Single Phase Electric Motor

Three Phase Electric Motors, Single Phase Electric Motor, Water Pump

An Induction Motor is an Ac electric motor in which the electric current in the rotor needed toproduce torque is obtained byelectromagnetic inductin from the magnatic field of the sator winding. Application of induction motor Singal Phase Washing machine Refrigerators Blenders juice mixers. etc Three  Phase Pumps Compressors paper molls Textils mills leth machine etc Low maintenance Low maintenance NOTE   All Dimension are in m. m. 63 to Frame are without Eye Bolt. Terminal box Position fir 63 to 132 Frame will be top side. insulation class 'e' RANGE OF MOTOR Foot Mounted Motor : 3 Phase 0.25 H.P. to 10 H.P. Foot Mounted Motor : 1 phase 0.25 H.P. to 3 H.P. Flange Mounted Motor : 3phase 0.25 H,P. to 10 H.P. Flange Mounted Motor : 1 phase 0.25H.P. to 3 H.P. VOLTAG & FREQUENCY The Motor are Designed For a Rated Voltage of 415 v For 3 Phase&230 v For 1 Phase and Frequency of 50 HZ.The Motors Give The Rated Output For a Fluctuation Of (a)  10% in Voltage and (b) 5% In Frequency of (c) any Combination of (a) and (b).

Mounting Type Foot (B3) Flange (B5) Foot with Flange (B35) Applications Dual speed motor are use in Many application which multiple speeds are required. Pharmaceuticals, Crane, hoist, lift, construction, Chemical industries, Food equipment, Ceramic industries Machine tools for different application. We can also provide dual speed gear motor, dual brake motor. Duty Our dual speed Motor is suitable for Continues duty (S1) Short time duty (S2) Intermittent periodic duty (S3) Intermittent duty with Starting (S4) Features High Torque Noise Free High performance Durable Smooth finishing Cost effective Precision design

We are offering ac electric motor.

We are offering ac dc break motor. "mmiracal" make ac - dc break motor
