AIRSON SCALE MANUFACTURING COMPANY Naroda, Ahmedabad, Gujarat

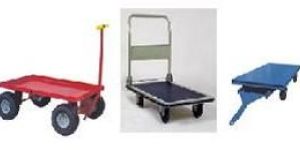

Easy operating system with turntable device handle (pulling system) Also available with wooden / MS/SS sheet platform with HDP / Rubber / Fiber / Pneumatic castor wheels.

Available Type :- Fix & Movable type castors 5 with nylone / HDP / rubber / Fiber / Solid Cast Iron (metal) quality. Available Sizes :- From 2 Inch dia to 20 Inch dia Available with pressed type sheet metal and heavy duty M.S.plate fabricated castor unit.

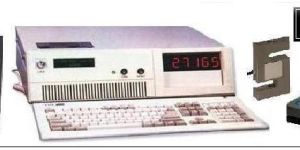

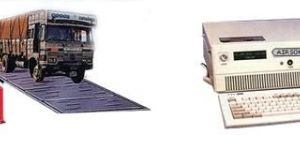

CONVERSION OF MECHANICAL WEIGHBRIDGE TO MODERN ELECTRONIC WEIGHING SYSTEM WITH ELECTRONIC CONVERSION KIT & PC BASED WEIGH SYSTEM IS POSSIBLE IN BOTH THE MODELS.Inserting a single "S" TYPE Loadcell on connecting rod of transfer Lever.

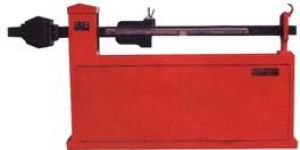

Steel Yard Indicator   AIRSON SPOT ON ACCURACY HEAVY DUTY NON-SKID PLATFORM EASY TO OPERATE SIMPLE MAINTENANCE HIGHER PERFORMANCE AND LONG LIFE 3,5 & 7 LEVER SYSTEM AIRSON STANDS FOR DURABILITY AND PERFECT PERFORMANCE.

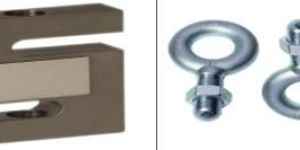

FEATURES 20 Kgs.. to 20000 Kgs.. Capacities available. High Alloy Tool Steel construction for resistance against shock and overload. Complete Environmental Protection -IP67 class. Standardized output (3.0 ± 0.25%) available on request. APPLICATIONS Applications Conversion of Mechanical Scale to Electronic. Tank, Hopper & Bag Weighing. Force Measurement Tension & or Compression Dynamometer. Hanging & Crane Scale Industrial Automation DESCRIPTION Ultra Precision Strain Gauge based 'S'-beam Load Cell is Versatile, compact and rugged. It is used for tension measurements, tensile testing, weighing, industrial automation and research applications. It is universal Load Cell Suitable for both-tension and compression modes. STANDARD CAPACITY 20, 30, 50, 75, 100, 150, 200, 250,300, 500, 750 - Kgs. 1,1.5,2, 2.5,3, 5, 7.5, 10, 15, 20-Ton.

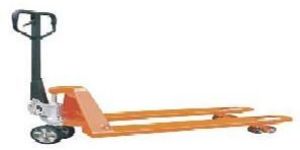

Fork Length : 900 mm to 3000 mm

Fork Width : 400 mm to 1000 mm

The Electronic Static Weigh-bridge is made up of a framework of girders adequately reinforced with transverse beams and suitable non-slip top deck with Pit less & Pit type Structure. The entire steel framework is mounted on strain gauge double ended shear beam / Compression Type Load Cells (4, 6, & 8 No's. Load Cells), depending on length of the platform. The shear stress produced by the load is detected by a strain gauge, full bridge circuit and converted into an analog electrical signal. Signal from each loadcell is fed to Junction Box. Output from Junction Box is fed to microprocessor based weighbridge Microprocessor based weighbridge Intelligent Terminal. The processing electronics of terminal digitizers the signal from the Junction-box using an ADC, based on time proven quad slope integration technique and weight is registered on LED display.

The alphanumeric digital AIRSON 2006 is robust in nature to withstand harsh environment conditions. It can operate successfully over a wide temperature range and also in humid weather. The micro-controller based state of art technology dual slope type a to d conversion(ADC), power supply incorporated with EMI-RFI filter & spike suppressor and in built opto isolation of signals on base of S.M.P.S. and i/o's makes it versatile product.

CONVERSION OF MECHANICAL WEIGHBRIDGE TO MODERN ELECTRONIC WEIGHING SYSTEM WITH ELECTRONIC CONVERSION KIT & PC BASED WEIGH SYSTEM IS POSSIBLE IN BOTH THE MODELS. Inserting a single "S" TYPE Loadcell on connecting rod of transfer Lever.

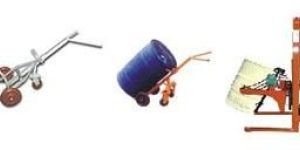

Available for plastic / M.S.drum handling and lifting, shifting, tilting, emptying system. Carrying Capacity 40 kgs. to 400 kgs. Available with Spray paint as well as powder coating system.

The Electronic Static Weigh-bridge is made up of a framework of girders adequately reinforced with transverse beams and suitable non-slip top deck with Pit less & Pit type Structure. The entire steel framework is mounted on strain gauge double ended shear beam Compression Type Load Cells (4, 6, & 8 No's. Load Cells), depending on length of the platform. The shear stress produced by the load is detected by a strain gauge, full bridge circuit and converted into an analog electrical signal. Signal from each loadcell is fed to Junction Box. Output from Junction Box is fed to microprocessor based weighbridge Microprocessor based weighbridge Intelligent Terminal. The processing electronics of terminal digitizers the signal from the Junction-box using an ADC, based on time proven quad slope integration technique and weight is registered on LED display.
