Ambar Steel Industries Sardar Patel Ring Road, Ahmedabad, Gujarat

We have manufacture Round Pipe To Flat pipe Roll as per customer Design

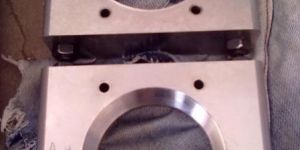

This product is Plastic Mould precision turned parts which had we made in house.

We have Manufacture Pilger High Quality material H-13 Bohlar Make either German make We have Manufacture China mandrel LG-15 To LG-75 and German KPW-25 To KPW 75 ,We have our facility for CNC Pilger Grinding manchin we have also in house heat treatment process.

Brand Name : Black Smith

Material : H13 ,H11,D2

Driven Type : Manufacturing

Shape : Parabolic & Tapper type

Rated Power : 30kw

Speciality : Pilger Mill Tools

Usage/Application : Rolling

Country of Origin : 30 KVA

Dimension (LxWxH) : Dia 200 to Dia 520

Boring Bar Size : Dia 200 to Dia 520

Bed Size : 1050x500x500mm

Number Of Flower : 4th Axies milling machine

Machine Weight : 2300 KG

Rated Current : 415 Watt

Phase : 3 phase

Country of Origin : India

Spindle Speed : 10000

LED Indicator : Yes

Machine Structure : Rigid casting

Load Speed : 100

Spindle Motor : 11 kW

Maximum Turning Length : 1200mm

X-Axis Stroke : 300

X-Axis Rapid : 3500

Z-Axis Stroke : 520

Z-Axis Rapid : 3500

No. of Spindles : 1

Controlling Mode : Siemens 828d

Ambar Steel Industries is the leading Indian supplier of pilger mills Tools, to meet the specific demands of out tube manufacturing customers. Ambar Steel Industries provides custom designed solutions for tube reduction emphasizing cold pilger mills. Pilger mill production can deliver high yields at lower cost compared to drawing processing. Area reductions of greater than 70% are achievable in one reduction with pilger processing of tubes depending on the alloy. This process can also produce tighter tolerances and better surface finish on both outer and inner surfaces. AMABR STEEL INDUSTRIES also provides equipment upgrades of existing pilger mills to increase efficiency and productivity. By replacing old, antiquated, mechanical gearboxes with 21st century technology, and introducing automated feed & turn systems, down time of existing mills can be reduced substantially. With the 18 years of experience of Rajesh Thakor & Teem built into Ambar Steel Industries, we can help improve your tube production return on your INVESTMENTS. We pride ourselves in offering solid engineering solutions to your tube manufacturing process with a commitment to customer satisfaction.

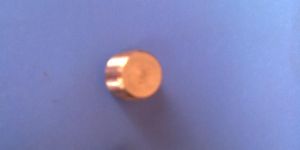

We are offering fastener (npt tread plug). Threaded pipes can provide an effective seal for pipes transporting liquids, gases, steam, and hydraulic fluid. These threads are now used in materials other than steel and brass, including ptfe,[2] pvc, nylon, bronze, and cast iron. The taper on npt threads allows them to form a seal when torqued as the flanks of the threads compress against each other, as opposed to parallelstraight thread fittings or compression fittings in which the threads merely hold the pieces together and do not provide the seal. As the thread body is tapered (0.75 inft or 62.5 mmm) a larger diameter keeps compressing into a smaller diameter and finally forms a seal (no clearance remains between the crests and roots of the threads because of the taper). This means that npt fittings should be burr-free and lubricated using a lubricating material like lubricating paste or tape. The use of tape also helps to limit corrosion on the threads, which otherwise can make future disassembly nearly impossible. Commonly used sizes are 1⁄8, 1⁄4, 3⁄8, 1⁄2, 3⁄4, 1, 1 1⁄4, 1 1⁄2, and 2 inch, appearing on pipes and fittings by most u.s. Suppliers. Sizes smaller than 1⁄8 inch are occasionally used for compressed air, while sizes larger than 2 inches are uncommon, due to the use of alternative methods of joining that are used with these larger size.

We have wide range of precision machinery parts ,specify we have deal in ss grade parts. We have Exporter and manufacturer of brass cnc turned parts, brass cnc parts, brass turning part, brass cnc turned components, brass cnc turned fasteners, brass auto parts, brass cable cc coupler, brass hardware fastener, brass switch.

Size : 40-50cm

Number Of Flower : Cnc Turned Components

Material : Aluminium, Brass, Mild Steel, Steel

Diameter : 75-100mm

Thickness : 60-80mm

Application : Machinery Use

Feature : Fine Finished

Technics : Molding

Finishing : Non Coated

Components Type : Adaptor, Bush, Coupling, Elbow, Pipe, Tee, Union

Brand Name : TVS componet

CNC Machining or Not : yes

Material Capabilities : 200 ton

Micro Machining or Not : yes

We are offering cnc mandrel grinding machine for special ss seamless tube manufacture company. ambar 1000 : cnc cylindrical grinding machine technical specifications model : ambar 1000 general center height mm 200 admit between centers mm 1000 max. Grinding length mm 1000 max. Weight of job between centers kg 70 table (z axis) rapid feed mmmin 5000 min. Incremental feed mm 0.001 feed motor torque nm 11 with absolute encoders max. Swivel of table deg -2 +5 ball screw (diameter x pitch) mm 50 x 10 grinding wheel head wheel size (dxwxb) mm 450x40x127 wheel speed rpm 1800 wheel surface speed msec 45 grinding wheel configuration straight infeed slide (x axis) infeed stroke mm 200 rapid feed rate mmmin 5000 min. Incremental infeed mm 0.001 feed motor torque nm 6 with absolute encoders ball screw (diameter x pitch) mm 32 x 5 work head type non rotating, dead centre mode only speed range (stepless) rpm 20-250 spindle nose taper mt 4 tail stock center mt 4 quill travel mm 25 cnc system siemens 802d sl motor power wheel head hp 7.5 work head hp 1 coolant pump hp 0.15

Number Of Flower : CNC

Condition : NEW
