1.Direct gear-motor drive with transmission through synchronous, helical spur gear. 2.Robust and rugged design to suit hardest site condition. 3.Inner mixer wall is bolted with extremely high wear resistance austenitic Ni-Hard liners. 4.Mixer arms and paddles, which are made from high-chrome alloy-steel and special caststeel ,are bolted to allow for easy replacement of these wear parts. 5.Mixer discharge gate with wear resistance liners is a rotary type and pneumaticallyoperated by two cylinders. 6.Capable to produce homogenous mix within a short mixing time, minimizing oxidation of bitumen. 7.Non-contact infrared temperature measurement at mixer outlet.

Brand Name : Atlas

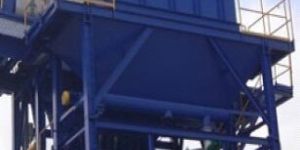

1.Directly below the filter unit cw dosing screw conveyor to the filler weigher. 2.Caged ladder access and flat form for level indicator and screw conveyor. 3.Level indicator to monitor the filler content. 4.Excess filler discharge flap and piping.

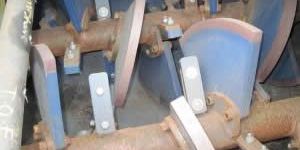

1. Pug Mill mixing unit so designed to mix material with exact quantity of water content to prepare a homogeneous mixture, also designed robust quality of wear resistant paddle arms for long life. It is fitted with AC motor. 2. Load-Out Conveyor with Hydraulic Gob Hopper & Power-Pack 3.Stationary 10,000 liter Capacity water Tank fitted with 3 HP water pump.

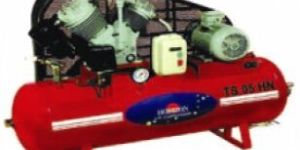

1.Single stage, air cooled, heavy duty with air receiver. 2.Pneumatic pipeline with pressure regulator, strainers, shut-off valves. 3.Pipes are pre-installed in the module.

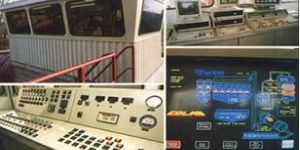

1.manual- or automatic-controlled monitoring system for every batch. 2.scada controls are provided for a fully automatic operation 3.auto adjustment control of cold feeders based on calibrated ton-per-hour. 4.full graphical user friendly operator interface display using 19 lcd monitor. 5.windows-based operating environment allows users to use other application or shut down the pc during plants auto operation. 6.auto control system using independent plc system to ensure reliable real time control. 7.complete manual system backup and override over the auto control using push buttons. 8.up to 200 recipe & customer input memory.

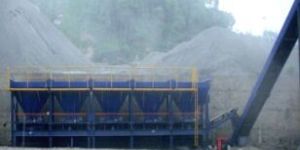

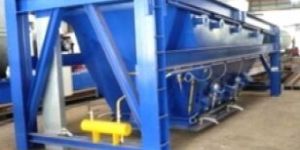

1.Each compartment is equipped with mechanical overflow chute and sampling pods. 2.Mineral temperature sensors are located inside the sand compartment. 3.Oversize material will flow out via overflow chute to a collection point. 4.Each compartment is equipped with a pneumatically actuated two-stage discharge gates controlled by the computer system. 5.Each compartment has a maximum level indicator that is wired remotely to the control room to warn operator when bins are full.

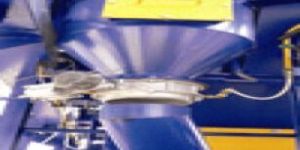

1.Designed to weigh up to 3 different sources. 2.Sealed with neoprene, which is heat resistant in the temperature range of -40 to 150 C. 3.Butterfly valves cw high torque pneumatic actuator, solenoid valves & micro switches

1.Drum is fitted with single piece, hot-formed ring without welded joint (drum tyre) on each end, mounted to the drum shell with spring plates. 2.Each drum tyre is seated and rolled on two Trunnion rollers. 3.Feeding end of the inclined drum is further guided by 2 guide rollers to limit the axial movement. 4.Special shovel flights are installed to the internal surface along the drum length to transport and form efficient drying curtain to minimize fuel consumption. 5.Special vacuum drum pressure device is fitted to control rotary actuator at the exhaust fan to regulate the air flow.

1.Container with tinted glass windows at all sides. 2.Insulated, dust proof and air-conditioned. 3.Pre-wire electrical power and control panels along with console. 4.Depending on plant configuration, the power requirement may change. 5.All plant controls, PLC, switch gear and control gear are housed within the power and control panels. 6.All motors are rated IP55, class F insulation.

1.Endless belt feeder. 2.Shaft-mounted gear motor for minimum maintenance. 3.Individual-frequency control with variable feeding of material monitored and controlled remotely from control cabin. 4.Speed vibrator motor is operated by no-flow switch to ensure continuous material flow for the sand bin. 5.Working platform along hoppers.

At the bottom of bins, adjustable gates are provided to regulate the flow of aggregate with four auxiliary conveyors. Gathering conveyor is equipped with scraper and driven by A.C. Motor. Aggregate from the Gathering conveyor is fed in to the drum by a slinger conveyor through vibrating screen.

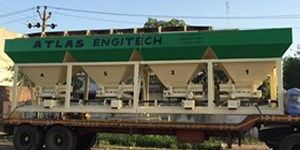

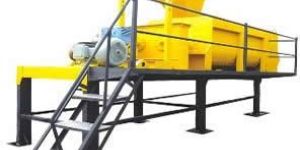

Stationary cold aggregate feeder. Four-bin cold aggregate unit includes Gathering conveyor with 600 mm wide driven by 5 HP Electric Motor. Belt feeders under each bin are driven by 2 HP variable speeds drive and fitted with adjustable quadrant gates. (Capacity of each bin is approximately 10 MT)

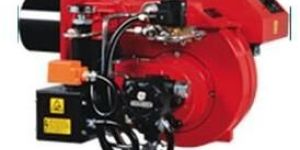

1.Fuel piping system, transfer pump and high pressure pump are included. 2.Automatic controls for the burner are included to regulate the capacity based on the temperature monitor by a sensor at the drum exhaust gas outlet. 3.Fully automatic, electrical ignition by propane gas. 4.Flame-failure indication that is detected by photo-cell. 5.Auto start-up of burner system for maximum safety. 6.Fuel Pump and Accessories include; Fuel pump (placed next to the Fuel tank and at ground level) Piping to main burner is inclusive of valve and strainer. Pressure-holding valve ensures the line pressure of fuel reach the high pressure pump of burner.

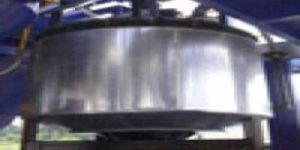

1.Designed to weigh up to 3 different sources. 2.Bitumen is circulated from storage tank through 2-way valve, actuated by compressed air. 3.Weigher tank is insulated with Rockwool slabs and heated at the base by thermal oil. 4.Weigher is provided with overfilling protection. 5.Mechanical dial thermometer indicates the bitumen temperature in the tank. 6.Gravity discharge to bitumen spray pipe.

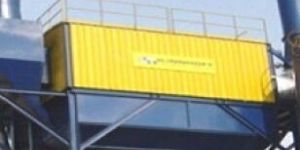

1.No compressed air is required. 2.Low-reverse air cleaning principle using pressure difference between the vacuum pressure of the exhaust gases and the reverse-air pressure. 3.High corrosion resistant steel is insulated at the top with 50mm Rockwool slab and cladding. 4.Filter bag cages in corrosion-resistant aluminum. 5.Radial vane damper with electrical servo-motor actuated cw remote operation and automatic drum suction regulator. 6.Exhaust fan is mounted on filter outlet. 7.Sand separator unit at the inlet to screen off the coarse filler to protect the filter bags.

Fully Insulated Bitumen Storage & Heating Tanks are available with various capacity models. Pumping unit is fitted on this Tank to send the Heated Bitumen in the Thermo drum unit. Sufficient thickness of Insulation & Advanced Oil Burner saves the valuble Fuel for Heating of the Bitumen.

Modern Drum Mix technology is used to produce the highest quality hot Asphalt mixture. Coating action in the drum mix produces uniform high quality hot mix with equipment that has few wearing parts and require less maintenance.

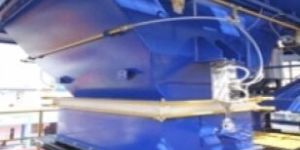

1.Designed to weigh up to 4 different aggregates. 2.Weigher is fitted with proper shock proof device to prevent the transmission of vibrations to the load cells. 3.Discharge of the weigher is through two discharge gates that operated pneumatically.
