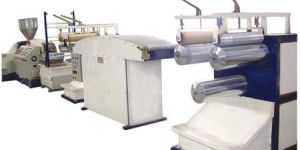

PP sutli plant is designed to produce PP sutli (string) used for loose packing, tieing of bags etc.Extruder have T die for High production and better performance.Two sets of streatching roller for step less adjustment of streatching ratio.
PP sutli plant is designed to produce PP sutli (string) used for loose packing, tieing of bags etc.Extruder have T die for High production and better performance.Two sets of streatching roller for step less adjustment of streatching ratio.
Auto cheese winder are provided with of coil as per requirement.
PP sutli plant is designed to produce PP sutli (string) used for loose packing, tieing of bags etc.
PLANT MODEL BISP50 BISP65
Screw size (mm) 50 65
LD Ratio 26:1 26:1
'T' Die Width 280 460
Max. Production (KgHr.) 30 45
Extruder have T die for High production and better performance.
Two sets of streatching roller for step less adjustment of streatching ratio.
Auto cheese winder are provided with of coil as per requirement.
PP sutli plant is designed to produce PP sutli (string) used for loose packing, tieing of bags etc.
PLANT MODEL BISP50 BISP65
Screw size (mm) 50 65
LD Ratio 26:1 26:1
'T' Die Width 280 460
Max. Production (KgHr.) 30 45
Extruder have T die for High production and better performance.
Two sets of streatching roller for step less adjustment of streatching ratio.
Production 50 - 120 kg hr.
Max. speed for each line : 120 Meter min.
Strap size : 6, 8, 9, 12, 15, 19 mm.
Screw and Barrel are Nitrogen treated and stress relieved.
Helical gear box with inbuilt thrust bearing are used for higher efficiency.
PID Temperature controller provide accurate temperature control for proper melting in extruder.
Quench bath is made from stainless steel to prevent corrosion & designed so air gap between die nozzle and water level is adjustable.
Two take OFF units are made from Heavy duty Structure and SS Roller with Hard Chrome Plating for Rust free Performance. Pressure Rollers are Operated Pneumatically or Manually.
Easy change of Die for Various widths of Strapping Band
Embossing roller are made from nitroy alloy steel & heat treated for hardness and Embossing depth is adjustable.
Annelling Unit with Hot Air Oven for Straightening the Straps. Chilling Water Bath with set of SS Roller for Stiffening Performance.
Winder is designed to wind strap on different core and driven by torque motor with torque controller.
Extremely convenient change for core with Pneumatic system.
Production 50 - 120 kg hr.
Max. speed for each line : 120 Meter min.
Strap size : 6, 8, 9, 12, 15, 19 mm.
Screw and Barrel are Nitrogen treated and stress relieved.
Helical gear box with inbuilt thrust bearing are used for higher efficiency.
PID Temperature controller provide accurate temperature control for proper melting in extruder.
Quench bath is made from stainless steel to prevent corrosion & designed so air gap between die nozzle and water level is adjustable.
Two take OFF units are made from Heavy duty Structure and SS Roller with Hard Chrome Plating for Rust free Performance. Pressure Rollers are Operated Pneumatically or Manually.
Easy change of Die for Various widths of Strapping Band
Embossing roller are made from nitroy alloy steel & heat treated for hardness and Embossing depth is adjustable.
Annelling Unit with Hot Air Oven for Straightening the Straps. Chilling Water Bath with set of SS Roller for Stiffening Performance.
Winder is designed to wind strap on different core and driven by torque motor with torque controller.
Extremely convenient change for core with Pneumatic system.
PP Multifilament machine is unique design of BI to produce Multifilament yarn using Polypropylene.The screw and barrel are made from Nitroy alloy steel with Nitrogen treated and stress relieved.High performance Gear pump provide smooth and powerful drive, it ideals for producing extremely uniform yarn and consistent product quality.Auto tune PID temperature controller used for accurate control of temperature in extruder.
PP Multifilament machine is unique design of BI to produce Multifilament yarn using Polypropylene.The screw and barrel are made from Nitroy alloy steel with Nitrogen treated and stress relieved.High performance Gear pump provide smooth and powerful drive, it ideals for producing extremely uniform yarn and consistent product quality.Auto tune PID temperature controller used for accurate control of temperature in extruder.
