Bottle Capping Machine Dealers in Odhav, Ahmedabad

• Output Speed: 30 to 150 Products/Minute
• Product Size: 15 mm Ø to 90 mm
• Sealing Head: 1/ 4 / 6 / 8 Head
• Power Supply: 25 KVA
• Power Supply: 3 Phase + Neutral + Earthing /415 V /50Hz

The innovation-driven range of Automatic Bottle Cap Sealing Machine comprises the main structure, product transmission belt with adjustable side guide, in-feed screw, star plates, sealing head, mechanical Vibratory Bowl, cap discharge chute, product’s height adjustment screw, centralized lubrication system, sensors, safety acrylic cover, motor, electrical panel, PLC & HMI,   Salient Features Robust vibration free design Synchronized PLC controlled system Less maintenance Efficient Durable   Application Cap sealing   Industry Pharmaceutical Chemical Lubricant Cosmetic FMCG Food processing Beverages

We are betrothed in manufacturing and supplying Automatic Bottle Rinsing Filling and Capping Machine that proffers quick and excellent performance in capping of bottles. This machine is accurately manufactured under the guidance of our experts in comply with industry norms. To prove high quality this machine, various tests are carried out on adverse conditions by our quality controllers. Furthermore, this is made available in varied technical specifications at affordable prices. Product details :  Brand : NPM  Capacity: 24 TO 60 BOTTLE PER HOUR  Power Consumption 7 hp  Voltage 220 V AC Electric Features :  Brand: NPM  High quality  Bottle Capacity: 200 ml to 2 Liter.

• Brand Name: BHALANI
• Condition: New
• Model: BCSM100
• Voltage (Volt): 440
• Automation Grade: Automatic
• Cap Size (Millimetre): UP TO 100 MM
• Frequency (Hertz): 50 / 60
• Motor Power (Horse Power): 1 HP
• Capping Speed (Bottles/Minute): UP TO 50
• Number Of Heads: UP TO 4
• Phase Type: 3 PHASE

• Country of Origin: India
• Weight: 100-500kg
• Automatic Grade: Automatic, Semi Automatic
• Driven Type: Electric, Mechanical
• Warrenty: 1 Year
• Type: Bottle Capping Machine
• Condition: New
• Power: 1-3kw
• Brand Name: Aanal Industries
• Application: Cap Sealing On Bottles
• Voltage: 220V
• Warranty: 1Year
• Material: SS 304

• Brand Name: PARTH
• Application: Industrial
• Clamping Force: 120 TON
• Screw Diameter: 35/40 mm
• Frequency: 50 hz
• Pump Motor: VDP
• Ejector Stroke: 125 mm
• Injection Weight: 154/200 gm
• Screw Stroke: 180 mm
• Machine Weight: 4600 kg
• Screw Ld Ratio: 22/20
• Space Between Tie Bar: 425 x 425 Mm
• Swept Volume: Silent
• Production Capacity: 20000 pieces in 5 hours
• Output Product: Bottle Cap
• Raw Material: Plastic
• Power Source: Electric

Rotary Bottle Rinsing Filling Capping Machine For Pet Bottle MDSE 01 series is also suitable for extruding a variety of tube similar to the drinking straw, and such of sheet in small size can be used with wide range of applications. For Example :- Lollipop sticks, coffee stirring stick, ball- pen refill, cotton swab stick, brake pipe and some pipe use for the industry. The screw and barrel of extruder are made of 38CR Mold high-quality alloy and have had a nitrogen treatment for a long service life.

• Application: Capping Machine
• Driven Type: Electric
• Voltage: 380 V
• Power: 2.2 kW
• Automation Grade: Semi-Automatic
• Material: Stainless Steel

Innovations are crucial in the packaging industry to increase efficiency, maximize throughput while at the same time reduce operational costs. Harsiddh offers a modern automatic bottle screw capping machines with the latest cutting edge technology in packaging and automation. The equipment caps bottled products in pharmaceutical, chemical, agrochemical, food and beverages as well as liquor. The equipment is specially fabricated using stainless steel-SS to ensure that machines frame is sturdy, corrosion free and able to give a long maintenance free operation. In addition, parts in contact with food or pharmaceutical products are made of SS to guarantee aseptic packaging. The machine is designed and equipped with Orientation type Cap Feeder for continues feeding of Cap for online operation on any liquid or powder filling line. It allows bottles of different sizes, length and shape to be capped using a wide range of cap sizes. The closing torque or force can be adjusted to ensure a tight seal. The in feed and out feed system is specially designed to allow for online process such that bottles from filling machine are synchronously transferred to the capping section. The machine advance, control systems has sensors to implement “no bottle – no cap”, “no cap – machine stop” and machine stop when bottles jam to prevent breakage. Our machines are CE certified. Cap sealer machine is suitable for application in Pharmaceutical, Food, Pesticides, Chemical, Beverages, Liquor and other packaging industries having lower and higher production requirement with automatic online operation.   Salient Features On-line operation. No Bottle – No Cap System. No Cap – Machine Stop System. Machine construction in Stainless Steel Finish. Hopper can be completely dismantle for easy cleaning . Various safety features including Clutch system to avoid Bottle Breakage or Jamming. Variable frequency drive for easy speed adjustment. Single Drive synchronizing operation of Conveyor and Star Wheel. Minimum Change over time. Compact GMP model.

• Weight: 1200-2500 kg
• Warranty: 1 year
• Brand Name: Laxmi
• Power: 800-1200 W
• Country of Origin: Made in India
• Packaging Type: Bottle
• Automation Grade: Automatic
• Power Consumption: 2 HP
• Material: Stainless Steel

Functions of 5 Gallon Filling Machine:  1. High safety operation: automatic break protection for power leakage and short circuit; 2. Under-pressure protection: when the pressure of incoming air is ≦0.5MPa, the filling equipment will automatically stop; 3. Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the 5 gallon filling machine will stop working automatically. Remarks:                              More functions for our 5 gallon filling machines like hot tank heating washing, bottle external washing, bottle cap washing and human-computer interface control etc. could be provided upon request.

• Phase: Single Phase
• Model: SBCS-60R

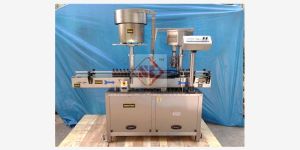

• Machine Name: Automatic Single Head ROPP Caps Sealing Machines
• Option: With Bowl or With Cap Elevator
• Production Speed Per Hour: 1800 to 3000 Bottles per Hour (Speed Depends up on the size of caps & bottles).
• Capping Unit: Roll Over Pilfer Proof capper designed to thread and seal aluminum cap
• Caps Feeding: Vibratory Bowl Feeder
• Machine Motion: Rotary Motion -Index Based
• Suitable for Products: PET / Glass/Aluminum/ HDPE Bottle
• Application: To Tight & Seal the Caps on Bottles
• Up-Down Movement: Mechanical (Cam System)
• Vibrator Pillar Mounting: On main Platform
• Speed Synchronization of Star Wheel & Capping Head: Variable Frequency Drive
• Working Height: 860 mm (+50 mm)
• Conveyor Length: 6 Feet Depending upon the product
• Machine Weight: Approx 300 Kgs
• Machine Platform: Approx 1210mm (L) x 810mm (W)
• Machine Dimension: Approx 1830mm (L) x 1220mm (W) x 2440mm (H)
• Change Parts: Required in case of change in Cap Size & Bottle Size
• Machine main frame: Square Pipe, Stainless Steel 304
• Machine Coverings: Complete in Stainless Steel 304
• Product Contact Parts: Stainless Steel 304
• Non Contact Parts: Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
• Conveyor Slat: Stainless Steel 304 Slat with Nylon Strips on Side
• Conveyor Shafts: Mild Steel with Hard Chrome or Zinc Plating
• Conveyor Sprockets: Mild Steel or Nylon
• Bearings: SKF / Nachi / Timken
• Plating(Wherever Applicable): ENP / Zinc / Hard Chrome / Blackening
• Capping Unit: Stainless Steel .304
• Bowl: Stainless Steel 304
• Vibratory Bowl Feeder: Mild Steel Cladded in Stainless Steel 304
• Vibrator Stand: Mild Steel with ENP Plating
• Shute: Stainless Steel 304
• Support Rod on Existing point of indexing Starwheel: Stainless Steel 304
• Star Wheel with Back Guide: 12 mm thick UHMW / Nylon
• Guide Brackets: Spectra make – Plastic
• Guide Size: 100mm / 150mm
• Guide Rod: Stainless Steel 304 (10mm Round Bar)
• Slat Chain Pitch: 3.5” Stainless Steel 304 (3mm thickness)
• Capping Head Pillar: Mild Steel with ENP / Hard Chrome
• Capping Head Motor Make: 1 H.P Bonfiglioli
• Capping Head Gear Box Make: Bonfiglioli Ratio: 20:1
• Capping Head VFD Make: 1 H.P Delta
• Sensor Make: Sick / Leuze / Panasonic
• Proxy: Autonix / Pulset
• Electrical Wiring: Ferrule Numbering on all the wires with Proper Markings
• Electrical Components: ABB / Delta /Spectra
• Wires & Cables: Labb
• Control Panel: Relay Card (Push Button Type )
• Power: 1 H.P / 230 V.AC

• Warranty: More than 1 year
• Brand Name: Aarvi engineering
• Country of Origin: Made in India
• Packaging Type: Bottle
• Automation Grade: Automatic
• Model Name/Number: AEAFL-164
• Power Consumption: 1-Phase 230 V
• Capacity: 2000-4000 BPH
• Filling Head: 2 to 8 Head

We are reliable Manufacturer and Supplier Automatic Bottle Capping Machine in Gujarat, India. Our Automatic Machine is suitable for all sizes of screw caps sealed on bottles, like perfume bottle sealing, metal cap sealing, liquor bottle sealing and much more. Easy to operate, sturdy construction and fast operations are some of the features of our Bottle Capping Machine. We offer our Automatic Capping Machine at reasonable prices.

The Automatic Bottle Screw Capping Machine is suitable for Round Bottles. Specially Machine construction in Stainless Steel finish including machine M.S. frame structure with Stainless Steel Cladding/Enclosures. The Machine is equipped with Orientation type Cap Feeder for continues feeding of Cap for online operation on any liquid or powder filling line. Machine suitable for various sizes of Bottles as well as Screw Cap with the help of change parts. Capping Machine is suitable for application in Pharmaceutical, Food, Pesticides, Chemical, Beverages, Liquor and other packaging industries having lower and higher production requirement with automatic online operation.

• Type: Capping Machine
• Power: 1 H.P.
• Application: Beverage, Chemical, Food, Medical
• Weight: 250Kgs
• Voltage: 440 volts
• Automatic Grade: Automatic
• Brand Name: Adinath
• Port: Mumbai
• Packaging Type: Bottles
• Supply Ability: 5 Unit/Units per Month
• Place of Origin: Gujarat, India
• Packaging Material: Glass, Plastic
• After-sales Service Provided: Engineers available to service machinery overseas

Automatic Rotary Bottle Capping Machine is suitable for the capping of round or other shape of Glass, Plastic, PET, LDPE, HDPE Bottles. Adinath offers various models of Capping Machine range from 60 bottles per minute to 180 bottles per minute. Our Six Head Bottle Screw Capping Machine is suitable for production up to 180 bottles per minute, our Four Head Bottle Screw Capping Machine is suitable for production up to 120 bottles per minute and our Single Head Bottle Screw Capping Machine is suitable for production up to 60 bottles per minute. Automatic Bottle Capping Machine is widely uses in Pharmaceutical, Food, Pesticide, Cosmetic & allied industries.     Salient Features     Compact GMP model.   “No Bottle - No Cap” system.   “Container Overturn - Machine Stop” mechanism.   Inbuilt pulse counter.   Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.   Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.   Single motor synchronizes Conveyor, star wheel and Platform Turret and speed can be varied by VFD.   Star Wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming or overloading.   Quick and very easy change over and setting from one size of Container to another by a Single Ratchet.   Digital counter for counting production output.   Process Operation     The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.

• Brand Name: Shree Bhagwati Machtech (India) Pvt. Ltd.
• Weight: As Per Model
• Certification: ISO Certified Company
• Voltage: 1.0 HP / 415 Volts / 50 Hz
• Type: Capping Machine
• Driven Type: Electric
• Automatic Grade: Automatic
• Model Number: SBCS-50
• Packaging Details: As per customer's requirements.
• Packaging Material: Glass, Metal, Paper, Plastic, Wood
• Dimension(L*W*H): As Per Model
• Customization: Yes
• Supply Ability: NA
• Place of Origin: Gujarat, India
• Port: India
• After-sales Service Provided: Engineers available to service machinery overseas

• Operation Mode: Automatic
• Structure: Horizontal
• Clamping Way: Hydraulic
• Plastic Type: PP

• Voltage: 220V
• Brand Name: Nikita
• Body Material: MS
• Machine Weight: 300-400kg
• Frequency: 50-60Hz

• 1 head to 20 head capping system or more: Output speed up to max400bpm or more

We offer different types of capping machines in order to be used for different capping applications such as food & beverages, pharmaceutical, pesticides, distilleries, cosmetic, toiletries, personal care, chemicals, oil etc. we have a broad selection of both semi-autoautomatic capping machine in which various capping systems such as servo based, pick n place, snappress fit, screw, ROPP, Aluminum flip-top, rubber stopper, inner plug etc. Depending on cap type. Thecapping machine can operated from a touch screen and is capable of storing over multiple recipes

• Infeed Conveyor: 4 ft
• Outfeed Conveyor : 12 ft
• Filling Tank: 150 Ltr With auto level system
• Dimension (lxbxh)   : 1650x1650x2150 mm (Without conveyor)
• Machine Weight: 1200 kg. (Approx.) with shrink tunnel
• Main Motor: 1 HP 1PHASE
• Conveyor Motor: 1/4 HP 3PHASE
• Shrink Tunnel Blower’s Motor: 1/4 HP 3PHASE
• Outfeed Conveyor Motor: 1/2 HP 3PHASE
• Filling & Washing Motor : ½ HP 1 PHASE
• Total  Electric Load: 7.0 KW (MAX.)
• FILLING RANGE: 500 ml to 2 Ltr.
• Output: 24-28 B.P.M ( 1 LITER)

Bottle Filling Machines

• Automatic Capping Machine: 240000

Brand Shiv Engneering Model SEASCM-60 Capacity 1000 to 2200 Bottles/Hour Our automatic screw capping machine is a fully automatic line screw capping machine which is integrated with cap vibrator for cap orientation, vibrator hopper, chute and Capping station. This automatic screw capping machine is widely used in different manufacturing lines for packaging and capping of bottles. The caps are tightened through magnetic clutch operated capping head at very high speed and then the capped bottles made their way out through Exit conveyor. The speed of this machine can be adjusted through the Speed POT ehich is provided on switch box. This automatic screw capping machine has SS 304 body and 12feet long and 150mm wide conveyor. S.S. Elegantly Matt Finished Body Motorised head movement Built in front control panel Low noise level, low power consumptions No change parts require Adjustable bottle height for easy and quick setting SS cladding or SS 304 body finish to ensure long life and Protection against corrosion The unit is & versatile

Bottle Labeling Machine, Fully Automatic Rotary Cup Filling Machine

• Type: Rotary Capping Machines
• Weight: 200kg to 300kg
• Voltage: 220V
• Condition: New
• Rated Power: 3-5kw
• Automatic Grade: Automatic
• Driven Type: Electric
• Warrenty: 1year
• Certification: CE Certified
• Country of Origin: India
• Brand Name: SSM
