Capping Machine Dealers in Ctm, Ahmedabad

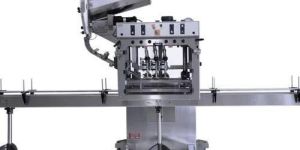

Guru Techno Industries machinery is highly suitable for mineral drinking water packaging solutions like rinsing, filling and capping machine . This machinery is highly used for filling and packaging   plastic bottles & containers with food and beverages like drinking water packing, juice, milk, yogurt and many more. This machinery includes all stations and performs every individual phases of , rinsing, filling and capping at one spot. As these machines are multi-functioning hence helps in saving time and money. Rinsing, filling and capping machine  are highly in demand  in the industry for their capability to efficiently handle the requirements of filling liquids in both low as well as high viscosities through  .We even offer custom build rinsing, filling and capping machine as per the customer requirements.  This rinsing, filling and capping machine is designed using quality raw material and very safe and user friendly to operate. A highly qualified team of experts builds this rinsing, filling and capping machine for all types of liquids and beverages. Our staff has long term experience and understands technology. Guru Techno Industries offers the customers all around the most efficient and flexible machinery for all their specific needs. You can even check below video to understand detail functioning of this machine.  If you have any kind of query, please feel free to contact us. We will be happy to assist you.   Features Neck Holding on Transfers. No Bottle No Rinse No Fill No Cap. Pick And Place for Cap Feeding. Ultra Violet Light on Chute. Drive is on chain of gears ( Not Indexing Cam ) hence low on Maintenance. Safety Clutch on Machine. No Electronics involved in any function. Hence user friendly. Drive Motor ( Compton make ) Gear Box ( Radicon make ) All Liquid contact parts are of SS 316. SS frame work and door will be of acrylic. Air blower 3 mt with blower + filter. SS conveyor 3 ft on the out feed of the conveyor.

We dominance ability in manufacturing Cap Sealing Machine to our appreciate customers, worldwide. Our scope of cap sealing machines is the fastest & sufficient action of sealing the containers with foil membranes. The machine is manufactured with precisely mentioned procedure well-known for its extreme quality. This cap sealing machines are furnished with feather touch push button station. We tender Automatic Cap sealing machines & ROPP cap sealing machine to our admired clients at industrial prominent costs. We gave all details of quality inquiry of these machines. Automatic Cap Sealing Machine the container following the sealing head, all along this bottle significantly pick-up cap from distribution of feeding bowl, sealing head perform perfect Operation of threading & sealing. Salient Features : S.S. Slat Conveyor Automatic cap tender Resourceful & compact unit Built in advance control panel

The automatic screw cap sealing machine is precision built on sturdy welded ms frame completely enclosed in stainless steel sheet and doors are providing to facilitate the servicing of machine.

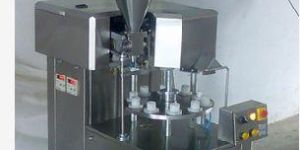

The Automatic Cap Sealing Machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine.   Operation : The feed container moving on conveyor belt are fed into star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head. Where the sealing head is performing perfect operation of threading & sealing.     Salient Features : No container No cap arrangement. SS elegantly matt finished body. Single motor synchronizes conveyor, star wheel, & platform turret. Adjustable height of conveyor belt, to align with other machine of the line. Sealing pressure can be varied to suit different gauges and size of caps. Low noise level, low power consumptions. Self-lubricating UHMW-PE guide profile for low friction wears surface, smooth and noiseless conveying. SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against   corrosion. Synchronized A/C drives to synchronize, Conveyor, Star wheel and Platform turret & capping bowl. Adjustable bottle height gauge for easy and quick setting.

Automatic Injectable Powder Filling with Rubber Stoppering is a compact model used for filling Stoppering of Dry Powder Injectable in to vials. The incoming dry container sterilized are fed through the Un-scrambler and suitably guided on the moving delrin flat conveyor belt at the required speed of the correct placement below powder wheel. The sterilized powder is stored in powder hopper is agitated by pair of mechanical agitators for maintaining consistency and uniform bulk density. The powder wheel having eight ports rotates at the pre determined speed below the powder hopper with practically no clearance. Powder wheel consist of Piston in each port and behind the powder wheel vacuum plate is provided there is no clearance between powder wheel and vacuum plate due to back spring pressure. Precise volume of powder is sucked in to the port of powder wheel during vacuum according to the piston length different fill size can be achieved. The excess powder is doctored off by a doctor blade. Doctor blades can be adjusted from outside also without removing powder hopper. When powder wheel indexes further and remain in the port due to the vacuum till it reaches just vertically above the container. The time dose of Compressed air (Nitrogen Gas), sterilized low pressure air sequentially flushes out powder from the port of powder wheel in to the container one by one. The filled container is immediately separated on the conveyor by vial separator and moves further for Stoppering operation. (Different grooves separator can be used which depends on the container diameter or multiple dosing systems). The sterilized, siliconised, rubber stoppers stored in the vibrator bowl moves to vibratory bowl and stacked vertically in the rubber stopper chute. The container is hold firmly between pair or timing belt to pickup rubber stopper from exit end of the chute. Further the container is passed between two pressing roller for tight fit fixing of rubber stopper.

SALIENT FEATURES No container no cap arrangement. Single motor synchronizes conveyor, star wheel & platform turret. Adjustable height of conveyor belt. Sealing pressure can be varied to suit different gauges and size of caps. Specially designed hopper is provided to increase storage capacity of bowl. Low noise level, low power consumption. Star wheel is equipped with safety clutch for automatic stoppage of machine in case of jamming / overloading. TECHNICAL SPECIFICATIONS Output / Hour : Up to 6000 Vials. Cap Diameter : 13 mm to 33 mm (with the help of change parts) Container Size : (A) 15 mm to 100 mm diameter (B) 50 mm to 210 mm (H) option for other bottle height available. Machine Dimension in mm : 2135 (L) x 925 (W) x 2350 (H) Change Parts Required : (A) Container :- Star wheel, Back Guide, Feed Worm. (B) Cap :- Plunger, Delivery Chute, Vibratory Bowl.

Completely stainless steel Construction. Capable of vacuum capping of the bottles with lug or twist-off caps as well as of those not necessarily to be vacuumed. Decreases the air pressure inside a bottle by high-speed steam injection, tightens the bottle cap and then vacuums the bottle by flushing cold water Specially designed Vibrator unit to keep the uni direction of cap. Machine clutch in case of any jamming of bottle during the machine operation.

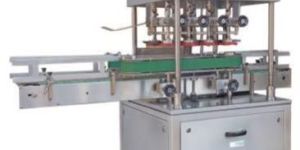

We are offering jar capping machine. Jar capping machine is manufactured using high grade components. Jar capping machine that we provide in the market is of superior quality that distinguishes it from other variants in the market. It is fully automatic. These machines are fabricated using advanced and innovative technologies. machine : cptlsc- 60 output:30 to 60 bpm bottle dia:40 to 80mm (upto 150mm in special case) cap dia:25mm to 50mm (upto 100mm dia in special case) power require:2 hp, 230 volt, dimension:1000 (l) x 800(w) x 1500(h)mm net weight:550 kg. Approx gross weight:650 kg. Approx plc operation & acrylic cabinet available on demand

The precision engineered Vial Filling & Stoppering Machine manufactured by us is designed to successfully meet the operational requirements of various industries. Further, these can be availed with the a. C. Frequency drive for speed control and are acknowledged for features like no vials and no filling systems. These are offered at a fair price range

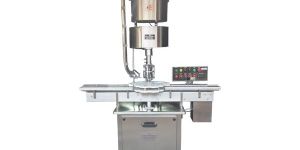

The filled bottles moving on conveyor belt and fed into an in feed star wheel by in-feed worm. While moving in feed star wheel, bottles pick up caps one by one from delivery chute. The descending rotary sealing heads hold bottle’s neck with desired pressure. The sealing is done in a programmed roll-on manner, accurate positioned of the caps is done mechanically by means of a rotating unscramble, to direct the caps correctly into the chute, when the chute is filled up the rotating unscramble drive is disengaged, hence, there is no chance to damage of caps. The sealing roller takes place due to rotating sealing head and transfer movement of sealing & threading rollers due to sealing cam. The sealed bottles are discharged by exist star wheel on conveyors.Parts coming in contact with the Container or the Aluminum cap or exposed to atmosphere are made out of stainless steel for long life.

Plastic Packaging has become an essential to the world and the global trend has emerged to produce Hi-Tech & sophisticated plastic packaging. PET (Poly Ethylene Terephthalate) has recorded the fastest growth rate in the Plastics Market and this is evident from the revolution witnessed in the fields of mineral water, beverages, edible oil, detergents etc. where plastic bottles made from PET. Today, the food and beverages industry is increasingly using PET to replace glass and other materials. Ferromatik Milacron India offers OMEGA Bubble Top PET Preform Injection Moulding Machine especially to manufacture 20 Ltr Bubble Top PET Preforms.

Automatic Multi Head Cap Sealing Machine: ROPP/ Screw Application & Process : Automatic Rotary Multi Head Cap Sealing Machine works with Nos. of rotary head to cap sealing. It is used to cap sealing of bottle in pharmaceuticals, food, dairy, agro chemicals and Beverages industries. Automatic rotary multi head cap sealing Machine is versatile, self-supported on stainless steel structures. The machine is precision built with rotary head with drives for sealing. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body. Main drive of the machine, conveyor drive & cap-feeding bowl consist of motor with synchronized variable Drive and No container No Sealing system arrangement. Containers are feeds from filling machine or unscrambler and moves on SS Slat conveyor and star wheel bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of threading & sealing and move container further process for inspection, labeling or packing. Salient Features : Designed as per cGMP - Current Good Manufacturing Practices compliance Machine structure is made from AISI 304 with matt finish. Adjustable height of conveyor belt, to align with other machine of the line. Sealing pressure can be adjusted for different size of caps and gauges. Universal coupling for quick and easy setting of In-feed worm No container no cap system. Low noise level, low power consumptions. Self-lubricating UHMW- PE guide profile for low friction wears surface, smooth and noiseless conveying. Adjustable bottle height gauge for easy and quick setting. Outside cap feeder system as per cGMP norms. Minimum and maximum level of cap in chute to be maintain through sensor hence to avoid damage & rubbing of cap. Inching system provide for setting of sealing operation.
