Carbon Rotofluid Pvt. Ltd. Odhav, Ahmedabad, Gujarat

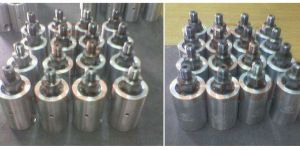

The housing & the rest of metallic components are made with Stainless Steel. The elastomers are made with VITON, NITRILE, PTFE, HYPALON, SILICON as per required. The springs are located out of the fluid flow toavoied pressure drops and turbulence causing noise and vibrations.Standard sealing with CARBON graphite to tungsten carbide seal.

Size : 3/8″ BSP to 2″ BSP

Number Of Flower : 501

Size : Customized

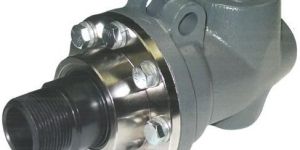

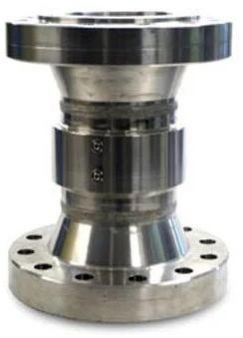

We are a chief Swivel Joints Manufacturer, Exporter & Supplier. The Swivel Joints are used to conveniently handle fracturing fluids, high flow rates, and radical temperatures. Moreover, the Swivel Joints have been precision-engineered using high-grade carbon material, to suit diverse industrial applications. In addition, the Swivel Joints are also used to transmit fluid media between two relatively movable points and comply with international quality norms. Features : Robust constructionWide ranging industrial applicationHigh efficiencyFine quality raw material Size : 1 NB TO 21# NB

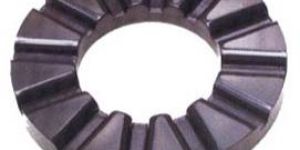

Graphite and CARBON - Graphite rings with superior self lubricating properties and low wear. These are used in submersible pumps for lifting water from deep water bored wells. Pump parts in CARBON material with higher hardness will enhance abrasion resistance. CARBON rubbing components are widely used in high temperature applications where the presence of liquid lubricants is unaccepatance. Chemical inertness, temperature resistance, lightweight, dimensional stability, impermeability to gases and I iquids, and self-lubricating properties make mechanical grades suitable for some of the most demanding applications. These rings are mould to size or machined to close tolerances.

Our Mechanical Seals can be operated at temperatures ranging from 100ºC to 350ºC. For application in such high temperatures special material grades are used. The primary seal face is of high grade CARBON. The bellows are made from neoprene vition and rubbers. the stationery face is of ceramic, satellite, tungsten carbide or silicon carbide depending on the service condition. Also we undertake to supply as per your specification sample or drawing.

Features : �Carbon� Brand multiport rotary union suitbale for high pressure with speed configurationsMultiport rotary union is available in minimum 1 port and maximum 11 portPort Avaiblale at 90 deg. / 180 deg. or specifyMaterial Constructions : Carbon steel housing with hardend rotor.optional: brass, ss, and aluminum housingSizes : ¼� to 1� bsp portFluid Media : air, water, hydraulic oil, steam

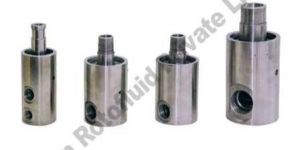

The "carbon™" brand 101 series rotary union incorporate state of the art sealing technology for the use in water and other applications. This product is primarily used in the rubber, plastic, printing & steel industries. The housing made with g.m. brass, the rest of metalic components are made with s.s. These unions are suitable for many applications to different microlapped sealing assemblies are available.

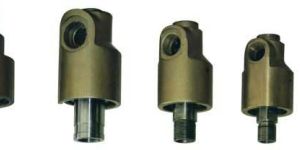

Operating Data : For size 1/4" Port (20,000 RPM) : Max Hydraulic Pressure 1500 PSIMax. Speed 20,000 RPM MaxFlow Rate 4.3 GPM For size 3/8" Port (15,000 RPM) : Max. Hydraulic Pressure 1000 PSIMax. Speed 15,000 RPMMax. Flow Rate 12 GPMMax. Temp. 160o F Features : Self supported rotary UnionMonoflow designCompact carbide mechanical sealIn-built with ABEC7 highly precision angular contact bearingsTreated steel rotorAluminum alloy housing & end elbow duly hard anodized directly interchangeable with any brand of OEM self supported rotary unions

Made From : High Grade Carbon Perfect For : Supplying fluid to high speed, multi spindles on automotive transfer lines. Available In : Two �a� & �b� models Caters to : Air, Gas, Hydraulic Oil & High Abrasive Chemical Industries to work under high pressure Specifications : With a variable size of 3/8" BSP to 2" BSP these are designed with radial or axial R. HFemale thread as per ISO 228 or NPT standards Features : Housing & other metallic components are made of SSElastomers are made with Viton, Nitrile, ptfe, Hypalon, Silicon etc. as per requirementThe springs are located out of the fluid flow Toavoied Pressure Drops and Turbulence, causing noise and vibrations Model A : Standard sealing with carbon graphite to tungsten carbide seal Model B : Tungsten carbide to tungsten carbideSilicone carbide to silicone carbide sealTungsten carbide to ceramic seal Temperature (max) : Air & water : 90ocHyd. Oil & Gas : 120oc Pressure (max) : Air, Gas & Water : 35 barHyd. Application : 100 bar Speed (max) : Size : 1/4" - 3/4" - 3000 RPMSize : 1" - 2" - 500 RPM

Ideal For : Water Based Applications Made From : High quality Brass & SS Materials Caters To : Rubber, Plastic, Printing & Steel Industries Available In : Two �a� & �b� models, and both are ideal for Water, Steam & Thermic Fluid for High Speed Machines Specifications : The Elastomers are made of Viton, Nitrile, Ptfe, Hypalon, and Silicon, which are further enabled with different microlapped sealing assembliesThreaded rotors size ranges from 3/8" BSP to 4" BSP, and satisfy ISO 228 / NPT / Metric quality standards Model A : Standard sealing with CARBON graphite to tungsten carbide seal for filtered liquid, thermic fluid and steam Model B : Tungsten Carbide or SIC / SIC seals for applications with hard water or abrasive fluids Temperature (max) : Water : 95o CThermic Fluid : 120oCSteam : 150oC Pressure (max) : Water : 15 BARThermic Fluid : 10 BARSteam : 8 BAR Speed (max) : Size : 1/2" - 3/4" - 3500 RPMSize : 1" - 2" - 1000 RPM

The step swivel joint features an exclusive “stepped” ball race arrangement. As shown in the illustration above, this design adds considerable wall thickness under the male ball races to dramatically increase erosion allowance in this critical area witout increasing swivel joint size or weight. Additionally the step design provides significantly higher bending and axial load capacities for improved strength and safety.

Size : 1 NB TO 21# NB.

Condition : New

Size : 1" BSP to 4" BSP

Brand Name : Carbon Rotofluid

Material : Stainless Steel

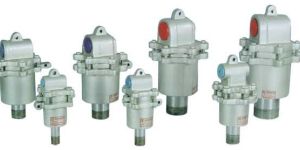

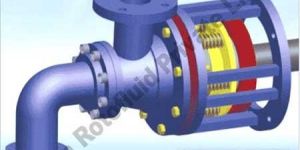

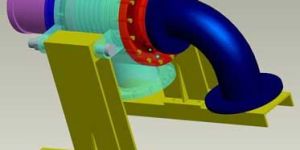

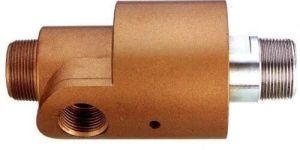

This is a special type Rotary Pressure Joint, which is ideal for applications where inlet and outer pipe must rotate with the roll on paper machine dryers with rotary siphons, double shell dryers, rotary steam tube dryers and other similar machines. We supply �CARBON� Brand �901� Series Rotary Joints along with the support stand (At Extra Cost). This support stand helps avoid misalignment and ensures easy installation to your rotary dryers or rolls. Advantages of �Carbon� Brand 901 Series Rotary Joints. : Since there is a bearing less rotary joint, they help save costsThe seal rings are made of a special Resin impregnated carbon, requiring no lubrication of any sort. Seal rings are resistant to fraction, even at high pressuresThe Special design for rotating inner pipe has a seal between inlet and outletMaintenance free - No lubrication requiredSupport Stand (at extra cost) for prevention of housing rotation as well as hose connections and inner pipe must not interfere with this axial displacement since the rotary joint will otherwise not operate properly

Features: Made out of high graded carbon materialsExclusively made to supply fluid to high speedComprises multi spindles on automotive transfer linesOffered in two models �a� & �b� Primarily utilized in air, gas, hydraulic oil & high abrasive chemical industries to work under high pressureHaving variable size between 3/8" BSP to 2" BSPRotary Joints made with radial or axial R. H. Female thread as per ISO 228 or NPT standardsOnly high grade Stainless Steel is used for the manufacturing of housing & other metallic componentsEmpowered with Viton, Nitrile, ptfe, Hypalon, and Silicon made elastomers, as per requirementThe springs are located out of the fluid flow toavoied pressure drops and turbulence causing noise and vibrations Model a : Standard sealing with carbon graphite to tungsten carbide seal Model b : Tungsten carbide to tungsten carbideSilicone carbide to silicone carbide sealTungsten carbide to ceramic seal Temperature (max) : Air & Water : 90ocHyd. Oil & Gas : 120oc Pressure (max) : Air, Gas & Water : 35 barHyd. Application : 100 bar Speed (max) : Size : 1/4" - 3/4" - 3000 RPMSize 1" - 2" - 500 RPM

The product is exclusively designed for continuous casting machines. Available in different types, the product offers duo flow & mono flow systems with siphon pipe or center tubes. This product is also available in varied shapes, sizes, designs and dimensional specifications and also per individual requirements. Advantages : Bearing less design combines rigidity and low function for long, trouble-free serviceBrass housing & brass hose connector and stainless steel rotor to provide the ultimate protection against rust and corrosionCarbon rotating unions have balanced mechanical seals with seal faces that are micro-lapped to flatness of better than 2 to 4 light bands which provide the ultimate wear resistance in harsh and abrasive environmentsExtra long impregnated bearing to assure easy rotation

Rotary joints Joint Life is extended. Corrosion resistant special carbon seal ring for better life. CARBON seal ring use in diff. grade as per application. Sleeves often reusable reducing repair cost. The hard oxide layer make the sleeve corrosion resistant. Wear of the sleever is minimized in the seal and bearings areas.

Size : 1/2" BSP to 4" BSP.

Brand Name : Carbon Material Used : High Quality Carbon Used For : High speed rotary machines Features : Easy to install, operate and removeRenders trouble free service under high temperature & pressure Specifications : Along with custom made, the product is made with 2� sizeMaximum speed of 1000RPM and can withstand temperature of 200 ° C and a maximum pressure of 15 BARSuitable for pressure on the Seal Ring to keep it securely seated against the seal face plate

Carbon Rotofluid Pvt. Ltd.TrustSeal offers the most comprehensive range of PTFE Products which are available in various sizes, widths & dimensional specifications. Our product range comprises of several PTFE bellows, molded rods, spherical bellows, molded sheets and special components. We also offer thick walled PTFE Tubes & Nozzles for mechanical industries and Bearings, Diapharnis, Guide rollers and Components. The entire range is available at market leading prices and timely delivered to our valued clients. The PTFE Products can also be customized as per client�s specific requirements. Applications : Food IndustryPharmaceutical IndustryBeverages IndustriesMechanical Industry

Brand Name : Carbon

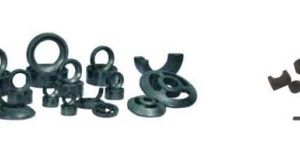

APPLICATION: ALL KIND OF MECHANICAL SHAFT SEALS ROTARY STEAM JOINTS COMPRESSORS MATERIAL USED: CARBON METAL IMPREGNATION TO SUIT TEMP. UPTO 350° TO 400° C. CARBON RESIN IMPREGNAMED (SINMHERED PROCESS) TO SUIT TEMPERATURE UPTO 350° TO 400° CLS. CARBON WITHOUT IMPREGNATED (SINTHERED PROCESS) TO SUIT TEMPERATURE UPTO 550° CLS. ENDOGENOUS CARBON (PRESS TO MOULD) TO SUIT TEMPERATURE UPTO 180° CLS. CARBON Guide & Seal Ring Sets: Guide & Seal Ring Sets (Spares) of different types of Rotary joints or as per your specification drawings. Material : CARBON Graphite CARBON Filled PTFE Resin Impregnated Antimony Impregnated

Material : CARBON STEERL

Size : 3 Inch, 1/2 Inch,3/4 Inch

Application : Hydraulic Pipe

Brand Name : Carbon Rotofluid

Precision at performance, Rotary Joints - Precesion Multi Port Rotary Joints, Rotary Unions - Suitable for any Application, Swivel Joints : Stepped ball race arrangement, PTFE Products - Wide Range of PTFE Products, Carbon & Graphite Products.
