CARE Process Instruments Vatva, Ahmedabad, Gujarat

Free flowing powders and granules. Suitable for side as well as Top mounting Temperature up-to 80'C. Process Pressure max.15 bar. Compact size. Low Power Consumption. No calibration required.

Free flowing powders and grainules(size max. 10mm). Suitable for side as well as top mounting. Temperature up-to 250'C. Process Pressure max. 15bar. Compact size.

All liquids from free-flow to viscosity up-to 10,000cP. Suitable for side as well as top mounting. Flow/No-Flow detection in pipe-lines. Temperature up-to 150'C. Process Pressure max. 15 bar.

All free flowing liquids, solids, powders and grains. Suitable for top mounting. Temperature up-to max. 200'C. Process Pressure up-to max. 20 bar. Suitable for corrosive liquids. No Potentiometers- Hassle free calibration.

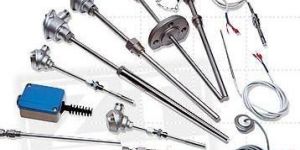

We make available high-end Thermocouples to the clients. Our Thermocouples have become the demand of the industrial sector as temperature sensors. Our Thermocouples can detect wide range of temperatures with perfection. We make available Thermocouples in different types depending upon the number of wires. Brand Name Care Specifications Resistance Temperature Detector (RTD) type (PT-10, PT-50, PT-100, PT-200, PT-1000 & CU-53) to measure temperature from -400oC to 600oCAvailable with class-A, B & SPSimplex type in 2 wire, 3 wire. Duplex type in 4 wire, 6 wire systemThermocouple type (cromel alumel or Cr.Al or Ni.cr-Ni) for temperature up to 1000 degree C/1200 degree C maximumAll sensors available in metallic protection sheath & Thermowell made of SS 304, SS 316, SS310, HRS 446, inconel 600/800 with insulation by ceramic beads and hand-filled mgoThermocouple type (copper-constantant) for temperature up to 400 degree CMI (Mineral insulated) protection sheath in SS 316, SS 310, inconel 600 are used in special applicationTolerance thin film or wire wound ceramic coated bulbThermocouple type (iron-constantant or Fe-K) for temperature up to 800 degree CWe also provide head mounted transmitters, explosion & flame proof head and various adjustable or fixed connections with sensors

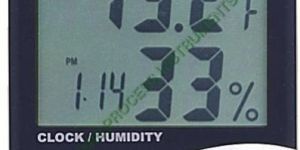

We provide dependable process instrumentation in the form of high-end Thermo Hygrometer. Our Thermo Hygrometer is suitable for measuring relative air humidity and temperature with perfection. Our Thermo Hygrometer has a digital display, which ensures sharp and clear display of the readings. These precision engineered Thermo Hygrometers find applications in different areas because they offer accurate results. Brand Name HTC Features Memory of MAX/MIN measuring value oC / oF Unit SelectableALARM FunctionClock & CALENDAR Function (month & Date)12-Hour / 24-Hour Displaying System selectableDesk –top Placing or Wall HangingDisplay Temp, Humidity & Time simultaneously Specifications Temperature range : -50c to +70oC (-58 ~ +122oF)Relative Humidity : 10%-99%Accuracy±1.0oC (1.8 oF)± 5% ( 40%~80%)Resolution0.1oC (0.1oF)1% RHMin/Max Memory for Temperature & HumidityClock FunctionC/F selectableFoldable Stand & Wall mountableBattery : AAA x 1pcsPower : 1.5 (AAA) x 1

Suitable for all sticky/non-sticky liquids and solids. Suitable for side as well as top mounting. Temperature up-to 400'C. Process Pressure max. 15bar. Compact size. Low Power Consumption.

Highest accuracy at 0.8%rh and 0.2'C Outstanding long term stability 20000 data point memory with date and time stamps Programmable recording intervals Psychrometric calculations of dew and frost point values available FDA 21 CFR part 11/GAMP 4 compliant

Our Pneumatic Calibration Pump acts as a reliable pressure source. With the use of our Pneumatic Calibration Pump, pressure can be generated at a very low cost. It has facility for digital display of the measurement of the pressure generated. Our Pneumatic Calibration Pump consumes very low electricity and remains in use for a long time. These features make our Pneumatic Calibration Pump the first choice of the clients. Brand Name SIKA Attributes Long usable lifeVery high pressure can be generatedOffers excellent calibrationEasy to operate

Measures relative humidity, temperature and dew/frost point Eletronics operating range -40...60'C : 10...60'C with LCD ....100%rh Automatic sensor test and drift compensation Saves up to 2000 measurement pairs Mains or low voltage power supply

Probe interchangeable in just a few seconds. Measures relative humidity, temperature and dew/frost point. Calculates all psychrometric values Range of application -40....60'C : -10...60'C with LCD 0.... 100% rh Automatic sensor test and drift

Nominal size: 40,50,63,80,150,250 Range: 0.. vacuum to 700kg/cm2 and above on request Thread connection: 1/8",1/4", 3/8",1/2" BSP & NPT, M-10,M-12,M-20........... Wetted parts: Brass, SS 304 and other materials on request

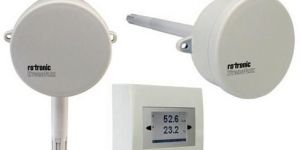

The clients can avail from us high-end Humidity Transmitter. Our Humidity Transmitter is manufactured using advanced technology and has all the desirable features. With the use of our Humidity Transmitter accurate temperature measurement is guaranteed. These Humidity Transmitters are easy to install and remains in use for years. Brand Name Rotonics Available In 2/3/4 Wire Specifications Range : 0 to 100% (-40 to 60 Deg. C) & Also available in High temperature rangeOutput Signal : 0-1 V,0-5V,0-10V,0(4)-20 mA

* Measures relative humidity, temperature and dew/frost point * Range of application -40...60'c: -10...60'c with LCD 0... 100%rh Automatic sensor test drift compensation * Save up to 2000 measurement pairs * Accuracy: +-2% rh/ +- 0.3k

Humidity measurement in industrial process in ATEX rated (EX) zones, compatible with HygroFlex HTS transmitter. Intrinsically safe probe ATEX 100. Power supply via HygroFlex Transmitter (15VDC) or from 2 wire 4...20mA loop (RH or 'C only) Measures relative humidity and temperature Eletronics operating range -40...40'C . Temperature measurements range -50....200'C (at probe)

We offer excellent quality Flow Switch of SIKA brand to the clients. These Flow Switches are highly reliable and safe in use. Our tested Flow Switches are used for purposes like maintaining the minimum flow rate and starting a technical procedure at the beginning of the flow. Our Flow Switch is perfect for maintaining the flow of water to lubricating oils and thus prevents the machines from getting dried. Brand Name Sika Demanded For Instant responseHigh repeatabilityLow pressure dropBoth liquids and gasesAdjustable switching pointSwitching function dependent on flow rate alone, not on temperature or pressure

Our Digital Thermo Pressure Gauge is effective in measuring air pressure. The Digital Thermo Pressure Gauge has many advanced features which make it reliable and easy to operate. Brand Name Akvalo Specifications Nominal Size (mm) : 63, 80,100 Scale Range Pressure : 0 to 4.2 kg/cm2 to 0 to 21 kg/cm2 Temperature : 0 to 160oC Accuracy (FSD) : 1%T hread Connection : 1/4", 3/8", 1/2 ", BSP & NPT and M-20 Mounting of Gauge : Bottom, Back Case and Bezel : Drawn steel, SS 304 Pressure Elements : Bourdon & Bi-metal Diaphragm : Nil Wetted Parts : Brass, SS 304 & SS 316 Application Hot Water Boilers & Water Heaters

Our Digital Pressure Test Gauge is effective in measuring air pressure. The Digital Pressure Test Gauge has many advanced features which make it reliable and easy to operate. Brand Name TIS Specifications Pressure Ranges : 1,15,30,100,300,500,1K, 2K, 3K, 5K and 10K psi Pressure Accuracy : +/- 0.05% F.S. Vaccuum Accuracy : +/- 0.25 F.S (15 to 500 psi range)

Our Digital Differential Pressure Gauge is effective in measuring air pressure. The Digital Differential Pressure Gauge has many advanced features which make it reliable and easy to operate. Brand Name SENSOCON Specifications Maximum Pressure : Ranges w.c. = 2 PSI, Ranges w.c. = 10 PSI Media compatibility : Air and compatible non combustible, non corrosive gasses Accuracy* : 0-1.00%; 1-0.50% Temperature Ranges Compensated : -10o to 140oF (-23o to 60oC) Operating : -10o to 140oF (-23o to 60oC) Thermal Effect* : +/- 0.012% FSoF Output Signal : 4-20 mA (option) Power Supply : Universal 16-265 VAC or VDC Housing Material : Glass Filled Nylon Enclosure Rating : Designed to meet NEMA 4X face; with optional cover the entire product is weatherproof Electrical Connections : Screw terminals.

We are widely appreciated for offering high quality Digital Data Logger with many advantageous features. Our Digital Data Logger offers reliable service for all types of applications. Our Digital Data Logger is highly useful in data transmission and processing. We manufacture Digital Data Loggers as per the industrial norms which offer easy programming and mounting. Specialties Easy to fitLong usable lifeSharp and clear display High memory capacity MicroLog Solution Models MicroLog EC600 : Temperature plus external sensorMicroLog EC650 : Temperature, relative humidity plus external sensorMicroLogPRO EC700 : Temperature plus external sensorsMicroLogPRO EC750 : Temperature & humidity plus external sensors Built-in Sensors MicroLog Temperature Range : -30 to 50oCResolution : 0.5oCAccuracy : 0.6oC MicroLog Humidity Range : 0 to 100 %Resolution : 0.5 %Accuracy : ± 3 % MicroLogPRO Temperature Range : -40 to 80oCResolution :0.2oC (-40 to -20oC)0.1oC (-21 to 50oC)0.2oC (51 to 80oC)Accuracy (all ranges) : ±2 %Software calibration is possible MicroLogPRO Humidity Range : 0 to 100 %Resolution : 0.1 %Accuracy : 2 %Software calibration is possible Output MicroLog Display : 2 digit 7-segment LCDMicroLogPRO Display : 4 digit 7-segment LCD with decimal point Communication MicroLog IRDA - interface to portable HP printerPC with 19200 kbpsRS-232 communication to the PC with 19,200 kbps with MicroLog and MicroLogPROUSB 1.1 (MicroLogPRO) Memory MicroLog : 16,000 samplesMicroLogPRO :1 sensor - 52,000 samples2 sensors - 26,000 samples3 sensors - 16,000 samples Power Supply Internal lithium battery : 3.6V TL5902Battery life : Approximately 2 years (depending on sampling rate) Sampling Rate User defined : From 1 every 10 seconds to 1 every two hours Dimensions Thickness : 22.9mmDiameter : 72mmWeight : 55gr Standards Water and dust proof IP65 standard compliance, for EC600 and EC700 modelsCE and FCC standard complianceFDA Title 21 CFR Part 11 Compliance MicroLab Software Runs on Windows® 95/98/2000/XP/VistaFast data download from the MicroLogGraphic visualization of the MicroLog dataData displayed in graphs and tablesData Export to EXCELGraphic analysis tools such as Markers, ZoomData Map allowing the users to easily see many MicroLog data loggers in one screenMicroLog SETUP windows, for setting up the MicroLog sample rate, sensors and alarm levelMicroLog sensor calibrationDisplay of MicroLog battery LevelShowing daily reports of a fleet of data loggersVisual alarm levels on the graph and table Minimum PC requirements Windows® 95 or laterPentium 300 Mhz or higher32 MB RAM6 MB avilable disk spaceCD ROM drive for software installationAvailable communication port

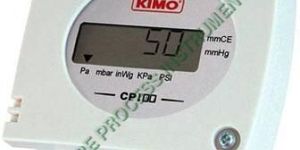

Our Differential Pressure Transmitter is appreciated for offering accurate pressure measurement. Differential Pressure Transmitter, offered by us, is also easy to mount supported by the turn system with wall-mounted plate. Brand Name KIMO Specifications Measuring ranges from 0/+100 Pa to -1000/+2000 mbar (according to model, see Configuration Configurable intermediary and central zero ranges0-10 V or 4-20 mA output Active sensor, power supply 24 Vac/Vdc (3-4 wires) or 4-20 m A output Passive loop, power supply 18 to 30 Vdc (2 wires)ABS IP 65 housing, with or without display Quick and easy mounting with the turn system with wall-mount plate.
