Devi Krupa Ahmedabad, Gujarat

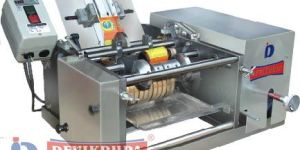

Machine is used for paste label on round pet bottle, glass bottle, jar. Machine is paste label with help of wet cold glue. Labels feed one by one from feed hopper with feed rubber and retard rubber adjustment. Feed rubber passes label between feed roll and pinch roll. The labe feed in label guide to gum cylinder and paste on bottle.

Technical specification printing area 50 mm. X 65 mm. Printing speed 25 36 48 stroke per min. Composing material metal & rubber stereo drive motor 1 phase.0.25 h.p, 1440 r.p.m. Overall dimensions (l) 650mm x (w) 475mm x (h) 275 mm weight @ 48 kg. Dimension after pkg. (l) 30" x (w) 24" x (h) 15" wt after packing @ 65 kg. Extra facilities * side & back stopper is provided for margin setting for large labels cartonspouches, extension platform support with side stoppers provided.

Machine is used for printing batch no, mfg date:, exp. Date: rate and other matter on preprinted label with different suitable speed. Machine is printing batch number with help of rubber stereo and ink. Labels feed one by one from feed hopper with feed rubber and retard rubber adjustment. Feed rubber passes label between feed roll and pinch roll then into timing chain. The chain lugs run label in label guide to printing block, where stereo paste on printing block is print batch number with help of ink from ink roller.

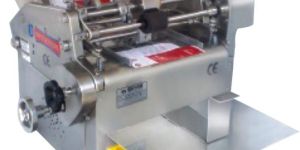

Machine is used for printing batch no, mfg date: , exp. Date:, rate and other matter on preprinted labels cartons or pouches with different suitable speed. Machine is printing batch number with help of rubber stereo and ink. Labels cartons or pouches are feed one by one from feed hopper with feed rubber and retard rubber adjustment. Feed rubber passes it between feed roll and pinch roll then into timing chain. The chain lugs run it in alluminium guide to printing block, where stereo paste on printing block is print batch number with help of ink from ink roller.

Driven Type : Electric

Condition : New

Automatic Grade : Fully Automatic

Application : Label Printing

Certification : ISO 9001:2008

Number Of Flower : Label Printing Machine

Availability : 100-500kg

Country of Origin : India

Warrenty : 1 Year

Machine is used for printing batch no, mfg date: , exp. Date:, rate and other matter on preprinted labels cartons or pouches with different suitable speed. Machine is printing batch number with help of rubber stereo and ink. Labels cartons or pouches are feed one by one from feed hopper with feed rubber and retard rubber adjustment. Feed rubber passes it between feed roll and pinch roll then into timing chain. The chain lugs run it in alluminium guide to printing block, where stereo paste on printing block is print batch number with help of ink from ink roller.

Machine is used for printing batch no, mfg date: exp. Date: rate and other matter on preprinted cartons with different suitable speed. Machine is printing batch number with help of rubber stereo and ink. Pusher press carton one by one to feed roll and pinch roll then chain lugs pass carton to printing block, where stereo paste on printing block is print batch number with help of ink form ink roller.

Technical specification printing area 50 mm. X 65 mm. Output 10 to 15 labelscartonspouchesmin. Manually. Composing material metal & rubber stereo overall dimensions 375 x 175 x 200 mm weight @ 7.5 kg. Extra facilities side & back stopper is provided for margin setting for large labels cartonspouches, extension platform support with side stoppers provided.
