Direct Shear Apparatus Dealers in Ahmedabad

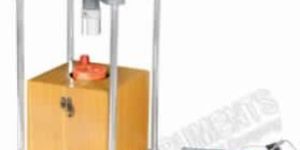

Direct Shear Apparatus, Hand Operated for Rocks (AIM 221) Ref Stds : ASTM D 5607-95   The equipment is used for Direct Shear Laboratory Test in Rock Samples. The test measures peak & residual Direct Shear Strength as a function of stress normal to thesheared plane. The equipment can be used for testing Core, Lump specimens.   Application Direct Shear Industry Civil Infrastructure Dams & Tunnels Geophysical/ Seismology Testing Geotechnical (soil/ rock) Testing Irrigation Mining Real Estate Roads, Highways & Bridges Education Architecture Building Technology Civil Department Geotechnical Science Colleges Traffic & Transportation Railways Roads, Highways & Bridges

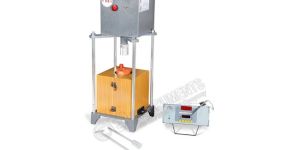

Similar to Mechanical Model but with Electronic Outfit in place of Proving Ring and Dial Gauge Outfit consists of 3 Channel Digital Indicator - 1 No.

The apparatus comprises of the following - Loading Unit : Supplied with loading yoke with direct and lever for applying load. Normal stress capacity 8Kg/Sq.cm. Load is applied either directly or through a counter balanced detachable lever. Provision is made for the load to be applied either through a steel ball recessed in the loading pad or direct through a boss on the pre calibrated loading. yoke. The loading unit is provided with V strips and roller strips for frictionless movement of shear box housing.Consists of loading unit, shear box assembly for 60 mm x 60 mm x 25 mm complete with two halves of loading pad, one base plate. All made of gunmetal with two porous stones. Share box housing of gunmetal, specimen Cutter of steel with set of weight to give normal stress of 3 kg/cm2. through lever as follows. OPTIONAL ACCESSORIES : Dial Gauge 0.01 mm x 25 mm travel High sensitivity proving ring 200 kg. fitted with 0.002 mm dial guage with our calibration certificate in a case. Shear box complete with two plain gripper plates, two perforated gripper plates, two porous stones, one top loading pad, one base plate and U-bracket. 60x60x25mm.Made of Gunmetal Spare Housing.

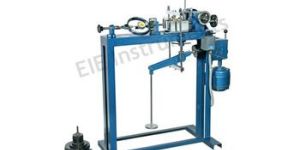

The Direct Shear test is carried out with an apparatus consisting of a square or circular box divided into two halves. The specimen, contained in the box, is subjected to a constant normal load while an increasing horizontal force is applied to one of the sections of the shear box. This force causes a shear failure along the junction between the box sections. The shear force and the normal load are measured directly. The rate of strain is adjusted by the speed of the horizontal force applied. The loading unit has V-strips on which the shear box housing rests. The precalibrated load yoke with direct and lever system for applying normal load of 8 kg/cm2 capacity, fixtures, for proving ring brackets, for holding consolidation and strain dial gauges and lead screw for application of shear stress
