Dynamic Autolooms India Pvt Ltd Kathwada, Ahmedabad, Gujarat

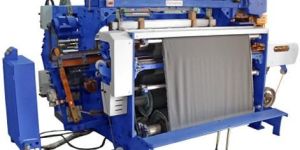

Model,VELVETO WEAVING MACHINE,Machine Type,High Speed Shuttle Loom 1 X 1,Picking Type,Under Pick Motion,Loom Width,60” (Inches),Working Width,2” less than loom width,Reed,Fast

In-built Electromagnetic Brake System with Main Motor helps to save electricity as motor stops instantly at loom stoppage. Less Number of Bobbin Changes, Enhances Productivity: Big size of Shuttle (35mm X 45mm X 16.5 inch) results in to less number of Pirn change.

Model VELVETO WEAVING MACHINE Machine Type High Speed Shuttle Loom 1 X 1 Picking Type Under Pick Motion Loom Width 60” (Inches) Working Width 2” less than loom width Reed Fast Shuttle Box 1 X 1 Shedding Motion Cam Tappet, Dobby, Jacquard Weft Control Electronic Weft Detector Let-Off Single or Double (Ground & Top) Let Off with an independent Motor, Electronically controlled through independent Load Cell & Micro-Controller. Pile Motion Pile Motion with an independent Motor, Electronically controlled by Micro-Controller. Take Up Take Up with an independent Motor, Electronically controlled by Micro-Controller. Cloth Roll Dia. 320 mm on Loom Pile Cutting Motion Linear Guide Motion

Microprocessor based control panel Electro-magnetic brake motor Push Button system: i.e. STARTSTOPONE PICK INCHING REVERSE Pick counting Predetermined stop RPM indictor Beam over tension stop

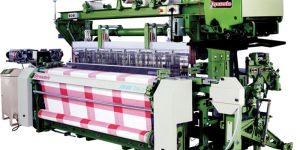

Model,SHIVA DR II PLUS,Machine Type,Heavy Duty Flexible Rapier Loom,Loom Width,170, 190, 230, 280, 330 CM,Working ,50 MM less than loom width,Width Reduction,Up to 400 MM (300 MM for 170 CM loom)

There is huge “Power Saving” as Machine can stop in case of any loom stoppages,Relief from frequent settings of clutch & brake mechanism,Maintenance free mechanism leads to more productivity.

Mounting mechanism of Whip Roller and Load-cell are specifically designed to get proper response of Warp Sheet Tension.Continuous unwinding of Beam.Keep identified Warp Sheet Beam Tension and record it for the future reference.Almost Constant Tension on Warp Sheet right from full to empty Beam.Weaving of Even Fabric from first meter to last meter.Lower & Upper Warp Sheet Tension’s safety feature reduces multiple warp breakages.Few number of Parts thus less Maintenance.

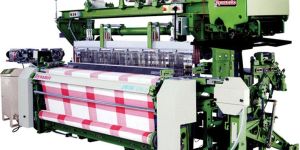

Weft Colors 2, 4, 6, 8 operated by Microcontroller (Optional) Synchronized with Electronic Dobby or Electronic Jacquard Warp Control Electrical 6 Rows Infrared (Optional) Shedding Motion Cam Motion (Plain, Twill, Sateen, Matt Weave) Electronic Dobby Electronic Jacquard Take up 7 Wheel with an independent motor, Electronically controlled by Microcontroller Weft Density 10 to 128 Picks per Inch Up to 250 Picks per Inch (Optional), Variable Density up to 5 (Optional) Cramming (Optional) Fringing (Optional)

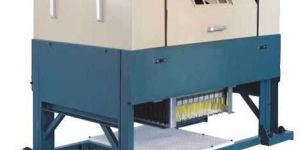

Type Electronic Jacquard HEJ11 Applicable Shuttle Looms, Rapier Looms, Projectile Looms & Air Jet Looms Format 14082688307253766144 7680921610240 Hooks Electronic Controls Controlled by independent controller synchronized with the weaving machine

Warp Control Electrical 6 Rows Infrared (Optional) Weft Control Piezo Electronic Sensor Shedding Motion Cam Motion (Plain, Twill, Sateen, Matt Weave) Electronic Dobby Electronic Jacquard Let-off With an independent motor, Electronically controlled by Microcontroller Take-up With an independent motor, Electronically controlled by Microcontroller Weft Density 18 to 150 Picks per Inch Up to 250 Picks per Inch (Optional) Variable Density up to 5 (Optional) Cramming (Optional) Fringing (Optional) Cloth Roll Up to 400 MM Dia
