Dynamic Looms Manufactuirng Company Amraiwadi, Ahmedabad, Gujarat

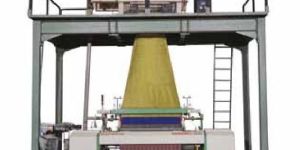

We are offering magic jacquard dynamic loom. Model magic e7 & magic jacquard machine type high speed rapier loom loom width 170, 190, 230, 260, 280 cm working width 50 mm less than loom width width reduction up to 400 mm (300 mm for 170 cm loom) weft insertion rate 425 to 575 mpm weft colors 2, 4, 6, 8 operated by microcontroller (optional) synchronized with electronic dobby or electronic jacquard warp control electrical 6 rows infrared (optional) weft control piezo electronic sensor shedding motion cam motion (plain, twill, sateen, matt weave) electronic dobby electronic jacquard

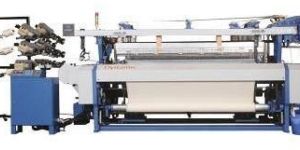

We offer Magic E7. Model MAGIC E7 & MAGIC JACQUARD Machine Type High Speed Rapier Loom Loom Width 170, 190, 230, 260, 280 CM Working Width 50 MM less than loom width Width Reduction Up to 400 MM (300 MM for 170 CM loom) Weft Insertion Rate 425 to 575 MPM Weft Colors 2, 4, 6, 8 operated by Microcontroller (Optional) Synchronized with Electronic Dobby or Electronic Jacquard Warp Control Electrical 6 Rows Infrared (Optional) Weft Control Piezo Electronic Sensor Shedding Motion Cam Motion (Plain, Twill, Sateen, Matt Weave) Electronic Dobby Electronic Jacquard

Country of Origin : India

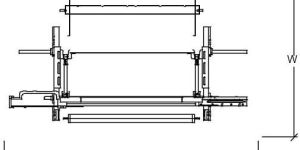

We offer Ganesha Pick N Pick. MACHINE CONTROL (OPTIONAL) Microprocessor based control panel Electro-magnetic brake motor Push Button system: i.e. STARTSTOPONE PICK INCHING REVERSE Pick counting Predetermined stop RPM indictor Beam over tension stop

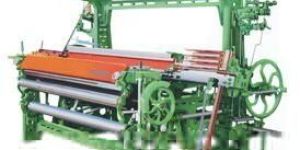

We are offering ganesha dynamic looms. Model ganesha machine type semi automatic drop box shuttle looms picking under pick motion loom width 45”, 52”, 56”, 60”, 64”, 68”, 72”, 80” working width: 2” less than loom width reed: fast shuttle box 4×4, pick n pick shedding motion tappet, dobby, jacquard weft control weft fork system or electronic infra-red filler system (optional) warp control electrical or mechanical warp stop (optional) let-off semi positive attached separate beam type electronics

We are offering electronic jacquard. Type electronic jacquard hej80 applicable: shuttle looms, rapier looms, projectile looms & air jet looms format 640 hooks electronic controls: controlled by independent controller synchronized with the weaving machine

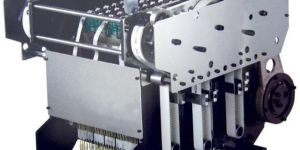

We are offering electronic jacquard hej-11. Technical specifications type electronic jacquard hej11 applicable shuttle looms, rapier looms, projectile looms & air jet looms format 1408 hooks electronic controls controlled by independent controller synchronized with the weaving machine
