Dynamic Technology Odhav, Ahmedabad, Gujarat

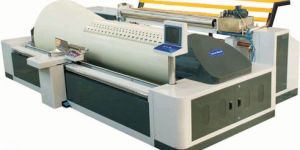

Fixed cone, Metallic drum, dynamically balanced. Drum Circumferences standard 2.5mtr. / 3.0 mtr. Triple Servo System (All Drives and Servo motors are Panasonic - Japan) for Stepless system for movement of warping table and synchronous speed of drum and table by ball screw. Second Servo for withdrawal of evener roller and reed as per the built up yarn Third Servo for machine traverse during warping & beaming. Evener warp sheet is maintained by the pneumatic press roller across width of the yarn Liquid wax or oil device 3 roller system circulation system with tank Static eliminator on traverse table Safety device with optical sensing for instant stopping For more Accuracy of warp table, we provide Line Guides Printer for various data information Linear Guides to ensure the accurate traverse of warp table. Uniform beam tension automatically maintained & displayed on screen from start/finish of beam as per set value by load cell & proportional control valve. Vibration free steel fabricated structure Quick positioning of new cones by turning package frame to 180 degree with locking facility by foot pedal. Tensioner assembly & cone package are perfectly aligned in line Distance between cone & tension mounting frame adjustable easily by hand wheel operations. Yarn tension controlled row wise manual. Re-creeling is possible during warping operations Refer for stop motion shown separately.

Photoelectric Sensor, Indication Of Broken Thread Of Respective Row Displayed By Led Both Side Front & Rear Side Led Indicator. Easy Of Operation Due To Pcb Easily Removed. Quick Action In Case Of Thread Break Yarn Breakage Levers For Fine And Coarser Yarn. Individual Locking Of Each Lever In Case Not In Use Individual Row Can Be Skipped For Opertion Or Not In Operation. Frame Structure From Alluminium Material. Sensitivity Range Of Sensor Is Variable From 100 Mm To 1000mm Single Row Indication Incase Any Yarn Break In Stop Motion Dust Proof Open Type. So It Is Easy To Clean. Hole Type Ceramic Both Side Of Stop Motion For Avoid Ballooning Of Yarn. More Then 400 Unit Install All Over India In Verison Machine Powder Coated Structure. Easy To Replace Liver.   SPECIFICATION Different Dimension Available: Pitch: 150 mm to 350 mm   Deck: 6 to 16   Ends: 384 to 1500   Lever to lever center: 14.6 mm   Operating Voltage: 12 Vdc Output Type: Relay No/nc Contact. Sensor Type: Photo Electric Sensor         Both Side Ceramic Streep Alluminium Angel Support For More Than 32 Hole Strip   APPLICATION stop motion Photoelectric Sensor, Indication Of Broken Thread Of Respective Row Displayed By Led Both Side Front & Rear Side Led Indicator. Easy Of Operation Due To Pcb Easily Removed. Quick Action In Case Of Thread Break Yarn Breakage Levers For Fine And Coarser Yarn. Individual Locking Of Each Lever In Case Not In Use Individual Row Can Be Skipped For Opertion Or Not In Operation. Frame Structure From Alluminium Material. Sensitivity Range Of Sensor Is Variable From 100 Mm To 1000mm Single Row Indication Incase Any Yarn Break In Stop Motion Dust Proof Open Type. So It Is Easy To Clean. Hole Type Ceramic Both Side Of Stop Motion For Avoid Ballooning Of Yarn. More Then 400 Unit Install All Over India In Verison Machine Powder Coated Structure. Easy To Replace Liver. Different Dimension Available: Pitch: 150 mm to 350 mm   Deck: 6 to 16   Ends: 384 to 1500   Lever to lever center: 14.6 mm   Operating Voltage: 12 Vdc Output Type: Relay No/nc Contact. Sensor Type: Photo Electric Sensor Both Side Ceramic Streep Alluminium Angel Support For More Than 32 Hole Strip For Sectional Warping Machine. For Direct Warping Machine.

We Have Done Successfully The Automation Of The Sectional Warping Machine & Direct Warping Machine.We Offer Below Exclusive Functions To Increase Production & Quality Of Beam. Actual length Step less servo system Home position Reposition Warping linear speed control Beaming linear speed control Yarn break stop, store, and save Beam data store Lease hole position Online truble sutting Hardware failere indicator Status of plc input & output sow on hmi Usb data storage Auto tension control in beaming Printout facility Motor & drive fault status sow Miss operating trouble suiting Beam advance stop to avoide accident Power failure stop
