Electric Hydraulic Pumps Dealers in Ahmedabad

• Power: Electric Motor Driven
• Country of Origin: Made in India
• Pump Type: Reciprocating
• Model Name/Number: HFF Series
• Brand: "Hi-Test"
• Usage/Application: Hydro Testing Pump
• Power Source: AC Powered
• Automation Grade: Automatic
• Discharge: 100-130 LPH

Hydraulic test pumps are low-maintenance solution for high-pressure applications such as hydro testing, car washes, and jetting application. This pump is excellent for testing leakage and integrity from boilers,pressure vessels, Metal casting Parts, Gas Cylinder, Pipes & Tubes Parts.These hydraulic test pumps are supply with different metals like brass, Forged stainless steel 304, stainless steel316, duplex steel, nickel bronze, aluminium bronze etc. APPLICATION › BOILERS, PRESSURE VESSELS, C.I. MAINS, CASTING PARTS › GAS CYLINDER, PIPES & TUBES PARTS › SUBJECT TO HYDRO TEST PRESSURE » SPECIAL FEATURES › ELECTRIC MOTORIZED DRIVEN SYSTEM › TOTALLY ENCLOSED DRIVE MECHANISM. › HEAVY DUTY PRECISION GEAR BOX › LARGE AIR CHAMBER › SELF OILING SYSTEM QUICK ACTING RELIEF VALVE. › TOTALLY DEPENDABLE, RELIABLE AND EFFICIENT PERFORMANCE. » STANDARD ACCESSORIES › PRESSURE RELEASE COCK MADE FROM BRASS METAL › DISCHARGE PRESSURE HOSE WITH ATTACHMENT OF ½'' BSP LENGTH 2 MTRS. › STAINLESS STEEL GLYCERIN FILLED PRESSURE GAUGE WITH 4 " INCH DIAL › SUCTION & DISCHARGE VALVE (NRV)MADE FORM STAINLESS STEEL MATERIAL › PRESSURE SET VALVE MADE FROM STAINLESS STEEL › PUMP AIR CHAMBER MADE FROM MILD STEEL › PUMP STAND MADE FROM MILD STEEL 3'' X 1 ½'' C CHANNEL » PERFORMANCE RANG › TEST PRESSURE UP TO 705 KG/CM2 (10,000 PSI) › WATER FLOW CAPACITY UP TO 150 LPH › MOTOR HP UP TO 5 Our hydraulic pressure test pump and other equipment are efficient, compact and cost effective and is available in diverse combination of pressure and flow.Hydraulic pressure test pumps at Ambica Machine Tools usually range from 1 lpm to about 770 lpm or more with pressure of about 2800 bar. Our hydraulic testing pumps are specifically designed to test pressure vessels, plumbing lines, sprinkler systems, and water meters, fitted in both commercial as well as residential buildings.. We are a flagship hydraulic test pump supplier and provide variety of customized pressure test pumps with a different combination of pressure and flow to suit different needs of various industries.

• Motor Horsepower: 3 HP
• Pump Rpm: 1440 RPM
• Suction Size: 3/8 Pipe with 1/2 inch BSP Connection
• Motor Voltage: 220-240 V

• Voltage: 240 V
• Country of Origin: Made in India
• Model Name/Number: AGP-47
• Brand: Apple
• Power Source: Electric
• Automation Grade: Automatic
• Motor Horsepower: 2 HP
• Motor Speed: 2000 RPM

• Type: Hydro Testing Equipment
• Warranty: 1 Year

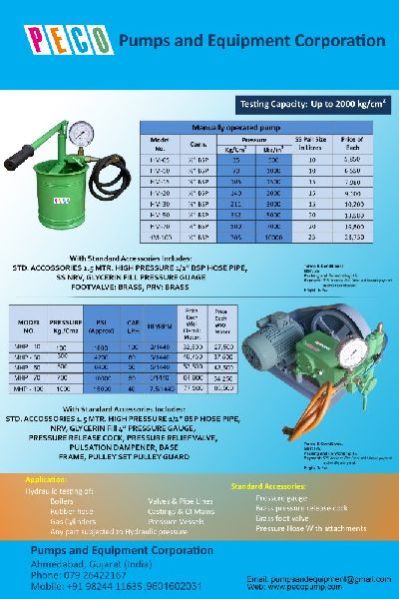

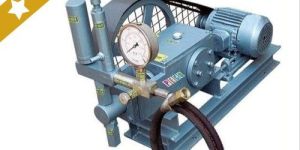

• Brand Name: PECO
• Pressure: 350 Kg
• Power: 5HP / 1140RPM
• Name: Model No. Plunger Dia MM Pressure Kg./Cm2 PSI (Approx) CAP. LPH HP/RPM Stroke SPM PECO-20 19 70 1000 150 1/1440 350 PECO-20 A 19 140 2000 150 2/1440 350 PECO-25 19 211 3000 110 3/1440 350 PECO-35 19 3

Technical Specifications: 1.5 Mtr. High Pre. Hose Pipe, NRV, 4” Gly. Fill Pre. Gauge, Pre. Release Cock, Pre. Relief Valve, Air Chamber, 3 PH Motor & Pump stand & Pully Guard.

Air Operated Hydraulic Pump, forklift hydraulic pump
