Filtcare Technology Naranpura, Ahmedabad, Gujarat

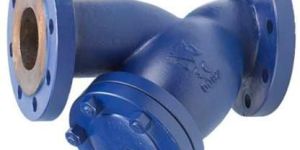

  Y-Strainer are used in applications where the amount of suspended solids to be removed are less and where frequent cleaning is not required. They are most often installed in gaseous services such as steam, air, nitrogen, natural gas, etc.  The compact, cylindrical shape of the Y-strainer is very strong and can readily accommodate the high pressures that are common in this type of service.  A Y-strainer can be installed either in a horizontal or vertical position. Our Strainers are furnished with high quality stainless steel screens that are carefully fabricated to fit the strainer body perfectly.  This, coupled with the precision machined screen seat on the body of the strainer, protects against any bypass. FEATURES Low pressure drop Reusable and cleanable Easy Back washing Compact Design Suitable for Liquid, Gas or steam. TECHNICAL  SPECIFICATIONS MOCs: - SS 304, SS 304 L, SS 316, SS 316 L, Carbon Steel Filter Elements: - Wrap Round and Pleated type, Monel screens also available. End Connection types: - Flanged, Threaded and Socket Welded APPLICATIONS Process Industries Power Plants Textile Refineries Chemicals Paper an Pulp Oil and Gas

Wound Filter Cartridges are made up of polypropylene fibers and are designed to meet the most demanding filtration duties. They are manufactured using a high speed, continuous wind process which creates a superior one-piece filter with hundreds of diamond-shaped tunnels that create depth filtration from the outer to the inner core. These cartridges are appreciated due to its high dirt holding capacity and its construction which allows facing various applications. Fluid flows from outside to inside through filter media and the particulates are held securely in the filter matrix.FEATURES Available in all micron rating from 1 to 100 micron. High dirt holding capacity Can handle wide range of fluids Excellent flow and low pressure drop Good fitment as it fits all the standard Housings. SPECIFICATIONS Material: - Polypropylene Core: - Polypropylene, Stainless Steel Micron Rating: - 1,5,10,20,25,50,100 micron Outside Diameter: - 65 mm Inside Diameter: - 28 mm Length: - 10”, 20”, 30”, 40” Long Maximum Operating Temperature: - 110 Deg C Configurations:- Double Open Type (DOE Type) Code 7S (226 O Ring Design/Bayonet) Code 7F (226 O Ring/Flat) Code 3S (222 O Ring/Bayonet) Code 3F (222 O Ring/Flat)   APPLICATIONS Pre filter for ultra pure water Filter for mineral water, wines and fruit juice,etc Filtration for Acids Portable liquids Animal and vegetable oils Paints and Coatings

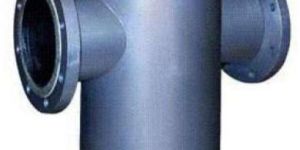

Basket Filters are used for a variety of fluids and applications where the suspended particles are to be retained of any size. Basket Filter elements are reusable and cleanable. Basket Filters are of wrap round type and pleated type. Filter Housings consists of filter element supported with positive sealing arrangement to prevent bypassing. In Basket Filters; unfiltered fluid passes through the element and the suspended solids are retained inside the filter element. Basket filters are normally supplied with spring arrangement at the top of the filter element.

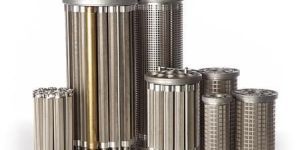

stainless steel cartridges are used in applications of high temperature and where there is lack of compatibility of synthetic fiber media. Stainless steel cartridges are offered in  ss 304, ss 316, ss 316 l,materials . These cartridges are in cylindrical form in pleated form, wrap form and sintered form. Stainless steel cartridges can be washed and reused.features reusable as it can be backwashed low pressure drop high differential pressure withstanding capacity longer lifetime high temperature resistance no media migration specifications sizes : 10”,20”,30”40” long inner diameter : 25mm , 28 mm ,48 mm outer diameter : 64 mm micron rating : 0.5 , 1 , 5, 10, 25, 50 , 75 , 100 configuration double open type (doe type) code 7s (226 o ring design/bayonet) code 7f (226 o ring/flat) code 3s (222 o ring/bayonet) code 3f (222 o ring/flat)   types of filters stainless steel sintered metal type stainless steel random fiber / sintered metal fiber type stainless steel wire mesh type sintered metal powder type     applications high temperature application fluids gas filtration r.o prefiltration application oil filtration hot-gas filtration

Spun Bonded Cartridge filters are manufactured through a process that thermally bonds pure Polypropylene microfibers with lower density at the outside surface and progressively higher density toward the center. The fluid to be filtered passes through the filter matrix and retains the particles inside the matrix which provides high efficiency and longer filters life. Spun Bonded Cartridges can be used either as a pre-filter or final filter for industrial, chemical process, pharmaceutical, foodbeverage, cosmetics, water and other applications.

spun bonded cartridge filters are manufactured through a process that thermally bonds pure polypropylene microfibers with lower density at the outside surface and progressively higher density toward the center. The fluid to be filtered passes through the filter matrix and retains the particles inside the matrix which provides high efficiency and longer filters life.spun bonded cartridges can be used either as a pre-filter or final filter for industrial, chemical process, pharmaceutical, food/beverage, cosmetics, water and other applications.features high flow rate with low pressure drop high dirt holding capacity long service life high strength and pressure resistance. reduced fiber migration broad chemical compatibility no chemical additives to contaminate filtrate. specifications sizes : 10”,20”,30”40” long inner diameter : 25mm , 28 mm ,48 mm outer diameter : 64 mm (2.5”) , 114mm (4.5”) , 6” , 8” micron rating :  1 , 5, 10, 25, 50 , 75 , 100 configuration double open type (doe type) code 7s (226 o ring design/bayonet) code 7f (226 o ring/flat) code 3s (222 o ring/bayonet) code 3f (222 o ring/flat)   applications drinking water treatment food and beverage electronic industrial water treatment chemicals and solvents platings

RBCM cartridges are made up of cellulose fibers which forms an extremely rigid structure. This construction allows the filter to withstand extremes of viscosity and temperature without collapse or rupture. FEATURES AND BENEFITS Rigid Structure prevents unloading at high temperature. Wide range of micron availability from 1 – 100 micron. Wide range of chemical compatibility Long Service Life TECHNICAL SPECIFICATIONS Available Sizes: - 10”, 20”, 30”, 40” Long Outside Diameter: - 63 mm Inside Diameter: - 28 mm Filtration Rating: - 1, 5, 10, 25 micron     APPLICATIONS Fuel Oil Grease Paints Inks Alcohol Membrane Protection Resin Trap

      PVC Cartridge Filter Housings have a very simple design with high filtering quality.PVC Cartridge Filters are normally used in acidic applications because of its material compatibility. They are normally used as polishing filter in almost all process industries. The PVC Cartridge Filter Housing system provides an economical alternative to stainless steel. It is made of durable, corrosion resistant PVC and suitable for low pressure applications.  TECHNICAL SPECIFICATIONS:- Material of Construction: - PVC Inlet and outlet: - 1.5” BSP Closure type: - Union closure and Nut-Bolt type No. of Cartridges: - 05 Nos. and 09 Nos. Pressure withstanding capacity: - 60 psi (Maximum); Continuous: - 45 psi APPLICATIONS Acidic Applications Water Treatment Paints Inks Chemicals Food and Beverages

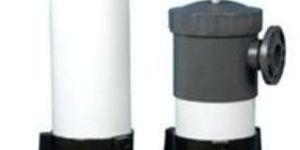

PVC Bag Filter Housings are the best option and an alternative for Stainless steel housings. They are designed for high flow rate and high dirt holding capacity.PVC Housings are useful for filtering highly viscous fluids. TECHNICAL SPECIFICATIONS Material of Construction: - PVC Inlet and outlet: - 2” ANSI Flange Closure type: - Union closure and Nut-Bolt type Pressure withstanding capacity: - 60 psi (Maximum); Continuous: - 45 psi APPLICATIONS Oil Applications Paints Inks Sugar Syrup Polymers Chemicals Pharmaceuticals Lacquers

Polytetrafluoroethylene (PTFE) is a versatile polymer used in a broad range of medical, industrial, and high technology applications. PTFE Filter cartridges are used for filtration applications of liquid, air and Gas streams. They are considered bio safe for pharmaceutical products. PTFE Filter Cartridges has an advantage of high filtration area which offers low pressure drop and long service life. These can be steam sterilized directly or reverse as per standard operating data.FEATURES AND BENEFITS Chemically Inert High Filtration Area Low Pressure Drop Compatible with ultrasonic/thermal welding and inset molding High tensile strength Strong Resistance to acid and alkali High Temperature Resistance      SPECIFICATIONS Sizes : 10”,20”,30”40” Long Inner Diameter : 25mm , 28 mm ,48 mm Outer Diameter : 64 mm (2.5”) , 114mm (4.5”) , 6” , 8” Micron Rating : 0.05 , 0.1 , 0.2, 0.45, 1 micron Configuration Double Open Type (DOE Type) Code 7S (226 O Ring Design/Bayonet) Code 7F (226 O Ring/Flat) Code 3S (222 O Ring/Bayonet) Code 3F (222 O Ring/Flat)   Construction Membrane: - Polytetra Fluoro Ethylene Core: - Polypropylene O-Rings/Gasket: - Silicone / Viton / TEV / EPDM Maximum working Temperature:- 90 Deg C   APPLICATIONS Sterilization Vent Filter Acid Applications Gas Purification

Polypropylene filter Housings are generally used in corrosive/saline liquid processing.Most of the water and waste water treatment plants and continues process industries. It is highly economical in price, light weight, durable and compact design.Considering the varied needs and applications of the end users, our products are customized to fulfill the application criteria. Polypropylene Filter Housings at Filtcare Technology, Leading Manufacturer, Supplier, Exporter, Wholesaler, Retailer, Traders of Polypropylene Filter Housings from Ahmedabad, Gujarat, India.   FEATURES AND BENEFITS Compact Construction Filtration Rating upto 200 micron Easy to handle and maintain Can accommodate Cartridges and Bags

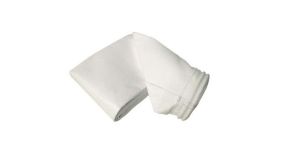

Filter bags are the most widely used media for filtration. They are made from various Medias like Polypropylene, Polyester, nylon, Nomex and Teflon. Various types of media used are needle felt, mono filament and multifilament. Filter Bags are available in a wide range from 1 – 200 micron rating. Filtration takes place from inside to outside and these filter bags have a high dirt holding capacity. Removal of filter bag is also quite easy; one can open the top lid of the housing and can change the filter bag and the bag can be disposed off

Pocket filters are produced from synthetic layered material and are covered with supporting layer of spun bonded media to avoid any type of particles or fiber migration. Pocket filters maintain their good properties even under high pressure and in an extremely dusty environment. Pocket filters are found in air-conditioning and ventilation devices from offices to heavy industry. They are used everywhere where there are high demands on efficiency and dust holding capacity at low pressure loss. They are known for their long lifespan which significantly contributes to the prolongation of intervals between the exchanges of these pocket filters. Pocket Filter at Filtcare Technology, Leading Manufacturer, Supplier, Exporter, Wholesaler, Retailer, Traders of Pocket Filter from Ahmedabad, Gujarat, India.   FEATURES AND BENEFITS Reduction of operating cost and maintenance Low Pressure Drop High Dirt Holding capacity Easy to install Light Weight   TECHNICAL SPECIFICATIONS Length of Pockets:- 360 mm, 600 mm No. of Pockets:- 4,6,8 Standard Frame Sizes:- 590 x 590 mm; 610 x 610 mm Filtration Rating:- 1,5,25 micron MOC of frame:- GI MOC of Pockets:-Synthetic/Hiloft   Application Gas Turbine Applications Pharmaeucticals Food & Beverages Fertilizer

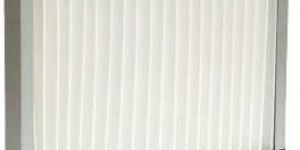

Panel Filters are made up of Galvanised Iron Frame with synthetic/spun bonded media in a pleated form to retain particles upto 1 micron. Basically, these filters work with negative pressure. Filter thread is sealed by sealant into the filter frame made of MDF board (pressed wooden fibres), equipped with a protective layer. On request, the frame can be made of the following materials -zinc-plated steel metal sheet, stainless steel metal sheet or aluminium metal sheet. Hepa Filters are high efficiency filters for filtration rating upto 0.3 micron. Panel Filter, Hepa Filter at Filtcare Technology, Leading Manufacturer, Supplier, Exporter, Wholesaler, Retailer, Traders of Panel / Hepa Filter from Ahmedabad, Gujarat, India.   FEATURES AND BENEFITS High Mechanical Stability High flexibility in use Easy to install Low pressure drop   TECHNICAL SPECIFICATIONS Sizes:- Standard & Customized Type:- Box and Flange type Frame MOC:- SS 304 & Aluminium Filtration Rating:- 1 to 50 micron MOC of filter media:- PP, Polyester, Synthetic Non-Woven, HDPE Mesh, SS Mesh, Nylon Mesh   APPLICATION Chemical Industry Pharmaceutical Industry Food Processing Microbiology Nuclear Technology

Oil adsorbing filter cartridges are designed for removal of dispersed oil from water. These cartridges are used in various process industries and water treatment systems. The oil adsorbing filter cartridge is made up of cellulose. This media will absorb the oil particles from water. Its oil-absorbent filter medium holds up to 20 times its weight in oil. These filters also provide pre-treatment to protect expensive membrane and trace-contaminant adsorbent systems.FEATURES AND BENEFITS Provides higher flow rate Efficient removal of oils from water Low pressure drop Easy in handling and operation Gets Fixed into existing cartridge units CONSTRUCTIONOil Absorbing Filter Cartridge is made from modified cellulose-based filter media to chemically bond with hydrocarbons and other pollutants.TECHNICAL SPECIFICATIONS Standard Sizes: - 10”, 20”, 30”, 40” Long Filtration Rating: - 5, 10, 20 micron Outside Diameter: - 63 mm Inside Diameter: - 28 mm Configuration: - Double Open End (DOE) type   APPLICATIONS Water Treatment Ballage and bilge water clean up Surge clean up Gas and oil cleaning Industrial Processes

High energy cost and demand worldwide have increased the focus on energy efficiency in many industries and market sectors. Specifically, the Power Generation sector is driven by the need for affordable electricity Gas turbine Air Intake Filter Elements are most suited for all latest high performance gas turbines which are often subjected to extreme dusty, stormy and humid conditions. They are manufactured from Impregnated cellulose or synthetic blend filter media in all sizes and shapes for replacement market and also offers economical, high-quality spare cartridges.   Gas Turbine Air Intake Filters are used to improve the energy efficiency.GT Air Intake Filters are normally made up of a mixture of cellulose and polyester and sometimes 100% polyester media. Pleated area offers high filtration area, efficiency and easy clean ability. GT Air Intake Filters at Filtcare Technology, Leading Manufacturer, Supplier, Exporter, Wholesaler, Retailer, Traders of GT Air Intake Filters from Ahmedabad, Gujarat, India.   FEATURES AND BENEFITS Washable & cleanable Offers high filtration area High air to cloth ratio Pleated cartridges for pulse-jet systems Expanded metal retainers on both sides Variety of media choices TECHNICAL SPECIFICATIONS Configuration:- Cylindrical & Conical Media:- Mixture of Cellulose & Polyester Media Cylindrical Element Sizes: - 325 x 660 mm Long Conical Element Sizes:- 445 x 660 mm Long End Caps MOC:- Galvanized Steel   APPLICATIONS Gas Based Power Plants all types of Critical Air Intake applications

We manufacture and supply a wide range of Filter Cage. These are manufactured by high grade of raw material in order to increase the durability of the cage. These are made in galvanized steel, mild steel and stainless steel and are available in different types as flange type, u type, groove type etc. We provide a wide range of configurations to best fulfil your needs.   Cage constructions typically consist of 10, 12 or 20 vertical wires. For areas where moisture or acid corrosion present we can provide a range of materials. Top load cages are available with a T-flange, ring top or several styles of rolled flange tops. Cage diameters range from 4" to 6 1/8".   Wire thickness ranges are; 9 gauge, 10 gauges and 11 gauge. Bottom load cages are constructed with a split collar or split ring top. For more efficient cleaning, Ventura is available for all diameter cages. Ventures are available in 3" to 6" lengths. Filter Bag Cages are the support system for filter bags in a bag house. Its quality in aesthetics, finish and dimensional accuracy plays a vital role in defining the life of the filter bags. Filter Cage at Filtcare Technology, Leading Manufacturer, Supplier, Exporter, Wholesaler, Retailer, Traders of Filter Cage from Ahmedabad, Gujarat, India.   FEATURES AND BENEFITS Low Maintenance Cost Practical Efficiency Very High Possibility of Heat Recovery Very Good. Effectiveness Not Affected By Gas-dust Composition. TECHNICAL SPECIFICATIONS Cage MOC:- Carbon Steel/SS 304/SS 316/Galvanized Steel/Epoxy Venturi MOC:- Aluminium, Carbon Steel, Galvanized Steel or stainless steel Vertical Wire:- 10, 12 & 20 most common; 5,6,8,16 & 24 also available   APPLICATIONS Gas Turbine Applications Pharmaeucticals Food & Beverages Fertilizer

Filter bags are the most widely used media for filtration. They are made from various Medias like Polypropylene, Polyester, nylon, Nomex and Teflon. Various types of media used are needle felt, mono filament and multifilament. Filter Bags are available in a wide range from 1 – 200 micron rating.Filtration takes place from inside to outside and these filter bags have a high dirt holding capacity. Removal of filter bag is also quite easy; one can open the top lid of the housing and can change the filter bag and the bag can be disposed off.FEATURES Can handle high flow rate Has high dirt holding capacity Low pressure drop Easy cleaning Easy maintenance TECHNICAL SPECIFICATIONSStandard sizes Ø 4” x 10” Long Ø 4” x 17” Long Ø 7” x 17” Long Ø 7” x 32” Long Filtration Rating: - 1, 5,10,20,50,100 MICRONFilter Media: - Polypropylene, Polyester, Nylon, Nomex, Ryton TYPES OF FILTER BAGS Polypropylene Filter Bags Absolute Filter Bags Carbon Bags Water Absorbent Bags Oil Adsorbing Filter Bags Pleated Filter Bags Monofilament Mesh Bags     APPLICATIONS Viscous fluids like wax, honey, etc Paints Inks Oils Cooling water Fats Food ingredients

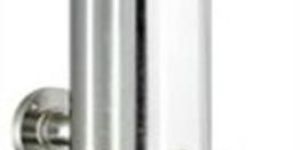

Cartridge Filter Housings are used for a wide variety of fluids handling various flow capacities. We provide filter housings which can handle flow capacity upto 2000 M3/Hr. Cartridge Filter Housings are used in various process industries an. Cartridge Filter Housings are made up of MOC SS 304, SS 304 L, SS 316, SS 316 L, Carbon Steel, MSRL, etc   TECHNICAL SPECIFICATIONS SizesDiameter: - 2.5”, 4”, 6”Length: - 10”, 20”, 30”, 40”, 50”, 60”LongCapacity: - 2000 M3/HrGasket/O-Ring:- Neoprene, Viton, Buna-N, Nitrile, EPDM, PTFE, Spiral WoundMaterial of construction: SS 316L, SS 316, SS 304, Carbon Steel (All Grade), mild steel, polypropylene, lead lining, rubber lining, Teflon lining   Types of End Connections:-Flanged ANSI B 16.5, BSP, NPT, DIN standard, Tri Clover Adaptors FEATURES AND BENEFITS Can handle flow rate upto 2000 M3/Hr High Dirt Holding capacity Customized Designs as per the flow rate can be offered Available in MOCs like SS 304, SS 304 L, SS 316, SS 316 L, Duplex SS 2205, etc. Housings are suitable for Double Open End type (DOE) and Single Open End type (SOE) filter cartridges. Can accommodate 10",20",30",40",50",60"long cartridges High temperature and High pressure designs Jacketed systems too are available for high temperature applications. Easy to operate and low maintenance. Davit Arm and Quick Opening type Designs are also available.   Cartridge Filter Housing Applications  Water Treatment  Pharmaceuticals  Dyes and Intermediates Food and Dairy Beverages RO Pre filtration Chemicals

Carbon black cartridges are used for the filtration of water, spirits and organic solvents. These are used for removal of color, smell and taste contamination through anodic oxidation and cathodic reductions.Its nominal filtration rating makes it excellent for pre filtration in applications which require very fine filtration.FEATURES High dirt holding capacity Prevent carbon particle to pass into the filtrate Good Oil adsorption medium TECHNICAL SPECIFICATIONS Size: - 10”, 20”, 30”, 40” Long Filtration Rating: - 5, 10 Micron Outside Diameter: - 63 mm Inside Diameter: - 28 mm     APPLICATIONS Water Treatment Membrane Pre filter Edible Oil Mineral Oil

Basket Filters are used for a variety of fluids and applications where the suspended particles are to be retained of any size. Basket Filter elements are reusable and cleanable. Basket Filters are of wrap round type and pleated type. Filter Housings consists of filter element supported with positive sealing arrangement to prevent bypassing. In Basket Filters; unfiltered fluid passes through the element and the suspended solids are retained inside the filter element. Basket filters are normally supplied with spring arrangement at the top of the filter element. FEATURES Highfiltration area Low pressure drop Reusable and cleanable Easy Back washing Useful for designing high flow rate systems Available in all MOCs like Carbon steel, Mild Steel, SS 304, SS 304L, SS 316, SS 316 L, etc. Jacketed systems are also available. Duplex Configuration systems are also available wherein one system is in working mode whereas the other is in standby mode in order to allow continuous flow operation. TECHNICAL SPECIFICATIONS : Flow rate: - Up to 2000 M3/Hr MOCs: - SS 304, SS 304 L, SS 316, SS 316 L, Carbon Steel, Mild Steel Filter Elements: - Wrap Round and Pleated type End Connection types: - Flanged, BSP, NPT, DIN standard APPLICATIONS Process Industries Power Plants Textile Refineries Chemicals Paper and Pulp Oil and Gas

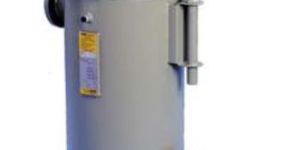

Bag Filter Housings are used in a variety of applications where the filter is to be designed for high flow rate and high dirt holding capacity. They are particularly useful for applications where there is high suspended solid load in the fluid and high flow rate. Various parts of Bag Filter Housings are Filter Bag, Internal Cage to support cage, sealing arrangement and end connection. Bag Filters are used as Pre filter to Cartridge Filters to remove the coarser suspended particles which increases the life of cartridge filter.   TECHNICAL SPECIFICATIONS   FEATURES Housings are available of various MOCs like SS 304, SS 304 L, SS 316, SS 316 L, which are mirror polished and also of Carbon steel which are sand blasted and epoxy coated. High dirt holding capacity of filter bags Easy to handle Low pressure Drop High Filtration Area High temperature and high pressure customized designs are also available. Flow rate up to 2000 m3/Hr Easy to open and replace bags   TECHNICAL SPECIFICATIONS Sizes:- SingleBag Filter system suitable for Ø 4” x 10” Long Filter Bag Ø 4” x 17” Long Filter Bag Ø 7” x 7” Long Filter Bag Ø 7” x 32” Long Filter Bag Multiple Bag Filter system suitable for 02 Nos. of Ø 7” x32” Long Filter Bag 03 Nos. of Ø 7” x32” Long Filter Bag 04 Nos. of Ø 7” x32” Long Filter Bag 05 Nos. of Ø 7” x32” Long Filter Bag 06 Nos. of Ø 7” x32” Long Filter Bag 07 Nos. of Ø 7” x32” Long Filter Bag 08 Nos. of Ø 7” x32” Long Filter Bag   Material of construction:- SS 304, SS 304 L, SS 316, SS 316 L Carbon Steel, Mild Steel Duplex SS, Super Duplex Stainless steel End Connections:- Flanged NPT/BSP threaded DIN Standard TC Connection SMS/Dairy Connection APPLICATIONS Water applicationsPaintsInksEdible OilsSugar SyrupPolymersVarnishesPharmaceuticals
