Flu-Tef Industries. Vatva, Ahmedabad, Gujarat

ALL STANDARD RG CABLES ARE ALSO AVAILABLE IN TRIAXIAL VERSION. SHIELD-SHEATH-SHIELD-SHEATH. CONSTRUCTION ASSURES MUCH BETTER ELECTRICAL SHELDING. Application : Simultaneous Transmission of 2 signals within the same cable. Due to improved screen effectiveness it shows a better transfer impedance than a coaxial cable.

SEMI-RIGID Co-axial cable are manufactured as per JSS 6145 MIL – DTL - 17 H Specification. Construction : 1. Solid conductor made up of Silver plated copper clad steel (SCCS) 2. Dielectric of PTFE 3. Outer conductor made up of Deoxidized & annealed Electrolytic Bare or tin plated copper tubing Characteristics : 100% screening, hence excellent protection against interference. Ease of stripping, connecting and soldering. Recommended minimum bending radius = 3 times the diameter of the cable. No outgassing in vaccum.

RF Co-axial cables are manufactured as per JSS 6145 MIL – DTL – 17 H Specification. These cables are designed for low loss, stable operation from the relatively low frequencies through the higher frequencies in the microwave and radar regions of the frequency spectrum. Cables may also be used as circuit elements, delay lines or impedance matching device. Construction : 1. Solid or standard conductor made up of Silver plated copper clad steel (SCCS) or Silver plated copper (SPC) 2. Dielectric layer of spiral wrapped & fused PTFF Tape 3. Outer conductor made up of Single or Double briad of silver plated copper 4. An overall jacket of: a. Jacket of wrapped & sintered PTFE Tape b. One or two wraps of PTFE Tape. One or more glass fibre braids and coated with special high temperature

PTFE Multi core cables for Instrumentation and control applications are manufactured as per MIL-DTL-27500H JSS 51038 specification to meet specific customer requirements. The primary wire are PTFF insulated meeting requirements of JSS 51034 MIL-W-16878BS3G210NEMA HP3. The cable possess all the unique electrical and mechanical properties of PTFE and are available in size from single wire screened or and jacketed up to cable with a maximum of 66 pairs twisted and or screened and or jacked as per required. Construction : 1. Conductor 2. Core insulation : Spiral wrapped and fused PTFE tape. 3. Braided shied 4. Jacket : PTFE tape wrapped & fused

Construction : 1. Single or multistrand conductor made up of silver or nickel plated copper or copper alloy. 2. Spiral wrapped and fused ptfe insulation.

We are offering standard co-axial cable rg196, rg187, rg188, rg400 also available in low noise version. Application of a semi conducting layer of graphite between the core and the screen enables a decrease in audio noise due to oscillation, vibration etc. Application : piezoelectric component oscilloscope probe high gain audio amplifier accelerometers magnetic recording heads

Features : These cables are manufactured by using ultra low Density Dielectric which reduces the weight & insertion loss when compared to standard Microwave Cables.

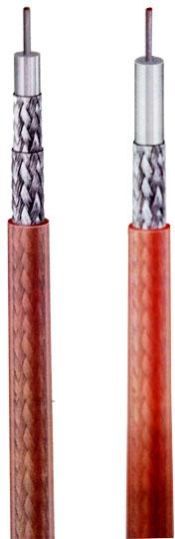

RF Co-axial cables are manufactured as per JSS 6145 MIL – DTL – 17 H Specification. These Cable are designed for low loss, stable operation from the relatively low frequencies through the higher frequencies in the microwave and radar regions of the frequency spectrum. Cables may also be used as circuit elements, delay lines or Impedance matching devices. Construction : 1. Solid or standard conductor made up of Silver plated copper clad steel (SCCS) Silver plated copper (SPC) 2. Dielectric layer of spiral wrapped & fused PTFE Tape. 3. Outer conductor made up of a Single or Double braids of silver plated copper 4. An overall jacket of FEP (Fluorinated Ethylene Propylene) Operating Temperature : - 55°c to + 200°c

Features : This cable is flexible alternative to semi rigid cable RG 402 Delivered on standard spools in long lengths, giving less waste than semi rigids
