Fluton Valve (India) Pvt. Ltd. Vatva, Ahmedabad, Gujarat

Steel frame: ASTM A234 grade WPB, in compliance with ANSI B16.28 Steel tee piece: according to SCH 40. Flange: ASTM A105, in compliance with ANSI B16.5Class 150lbs: JIS 10K or DIN is also available on request. Standard: Three fixed anges; three loose anges or one loose and two loose fixed anges or two loose anges is on request. X : Ductile iron ASTM A395 and ASTM A234 Gr. WPB are both available. Lining: Pure PTFE I FEP I PFA in compliance with ASTM D4894.

Butterfly Valve provides excellent chemical resistance through the use of flouropolymer line body and disc. Many features have been added to this as standard features to elevate butterfly valve of design, reliability & performance. Butterfly Valve is available in sizes ranging from 25 mm to 300 mm.

Steel frame: ASTM A234 grade WPB, in compliance with ANSI B16.28 Steel tee piece: according to SCH 40. Standard: Three fixed, anges; three loose anges or one loose and two loose fixed anges or two loose anges is on request.

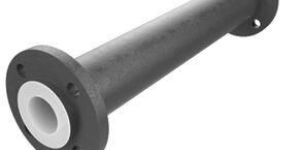

Pipe: A-106 S. in compliance with ANSI B36.10 Steel pipe: according to SCH 40 from ½” to 8”, According to SCH 20 over 10” Flange: ASTM A105, in compliance with ANSI B16.5class 150lbs: JIS 10K or DIN is also available request. Standard: one loose anges, one fixed ange, two fixed Flanges or two loose anges are on request. Lining: Pure PTFE in compliance with ASTM D4894, D4895. Different PTFE Liner thickness and under 4” length lined pipe are upon request. Other nominal sizes are available on request.

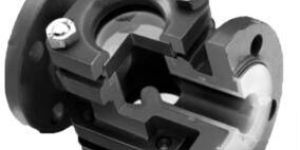

Steel frame: ASTM A234 grade WPB, in compliance with ANSI B16.28. Steel sight glass piece : according to SCH 40. Flange: ASTM A105, in compliance with ANSI B16.5Class 150lbs; JIS 10K or DIN is also available on request. Standard: Two fixed anges; one loose and one fixed anges or two loose anges are on request. Lining: Pure FEP I PFA in compliance with ASTM D4894. Glass : Toughened with PTFE gasket Other nominal sizes are available on request.

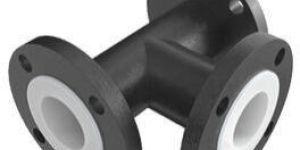

Steel frame: ASTM A234 grade WPB, in compliance with ANSI B16.28 Steel tee piece: according to SCH 40. Flange: ASTM A105, in compliance with ANSI B16.5Class 150lbs: JIS 10K or DIN is also available on request. Standard: three fixed anges; three loose anges or one loose and two fixed anges or two loose anges and one fixed anges are on request. Lining: Pure FEP I PFA in compliance with ASTM D4894. Other nominal sizes are available on request.

We take pride in being one of the distinguished Manufacturers and Exporters of PVDF Coatings in the market. Manufactured by using state-of-the art technology, these PVDF Coatings are easily available in the market at reasonable prices. Basically, PVDF Coating is a chemical resistant thick film barrier coating which is widely used on chemical processing equipment. These PVDF Coatings have excellent abrasion and wear resistance. With us, you can avail these PVDF Coatings at the most affordable rates. Highlights : High dielectic strength Excellent resistance to weathering Ability to self extinguish

Material : PP

Usage : Wall Coating

Pattern : Plain

Texture : Hard

We are counted among the top Manufacturers and Exporters of PTFE Lined Plug Valves in the market. Our PTFE Lined Plug Valves are not affected by rapid changes in chemical concentration or processing temperature. Not only this, these PTFE Lined Plug Valves are lined with a non-corrosive polymer and are able to resist any type of chemical at various temperatures. Besides, the fluorocarbon lining is locked into the valve body in a fully-lined valve. With us, you can avail reasonably priced PTFE Lined Plug Valves. Specifications : Available from 25 mm to 400 mm

Material : Stainless Steel

Application : Gas Fitting, Oil Fitting, Water Fitting

Availability : 10-20kg

Pressure : High Pressure

Feature : Blow-Out-Proof, Durable

End Connection : Socket Weld Ends

Plug Valve is lined non corrosive polymer and can resist any type of chemicals at various temperatures. It is available from 25 mm NB to 150 mm NB. Valves are virtually unaffected by changes in processing temperature or chemical concentration. In-fully-line valve, the fluorocarbon lining is locked into the valve body.

Size : Availbale from 25 mm to 400 mm

Flush Bottom Valve has been designed for use in highly corrosive liquid services. The heavy duty construction of this valve features a cast ductile iron body with corrosion resistant fluropolymer lining.

Size : Availbale from 50 mm x 75 mm, 100 mm x 75 mm, 100 mm x 150 mm

PTFE Lined Flush Bottom Valves that we provide have been engineered for use in highly corrosive liquid services. This PTFE Lined Flush Bottom Valve has a cast ductile iron body with a flouropolymer lining that is corrosion resistant. This PTFE Lined Flush Bottom Valve is quite suitable for high temperature applications. With us, you can avail these PTFE Lined Flush Bottom Valves in both manual and automated options. Our company provides these PTFE Lined Flush Bottom Valves at quite affordable prices. Details : Highly corrosion resistant Toxic liquid services Heavy duty construction

Size : 50 mm x 75 mm, 100 mm x 75 mm, 100 mm x 150 mm sizes

Material : Metal

Application : Gas Fitting, Oil Fitting

Availability : 10-20kg

Pressure : Medium Pressure

Feature : Durable, Good Quality

PTFE Lined Diaphragm Valves, available with us, are manufactured by using state-of-the art technology. Our company is a recognized Manufacturer and Exporter of PTFE Lined Diaphragm Valves in the market. These PTFE Lined Diaphragm Valves are especially engineered to match the tough work environment of pharmaceuticals, corrosive industries, chemical processing, etc. We provide these PTFE Lined Diaphragm Valves at the most reasonable prices. Applications : Pharmaceuticals Corrosive industry Chemical processing

Size : 25 mm x 250 mm

Material : Forged Steel

Application : Gas Fitting, Oil Fitting

Availability : 10-20kg

Pressure : High

Feature : Durable, Good Quality

Diaphragm Valve are engineered to the top tough work environment of the chemical processing, pharmaceuticals, corrosive industries etc. We have special design bonnet which separates working valve parts from abrasive fluid and gases so that the process media only come in contact with the body, lining and diaphragm.

Size : Available from 25 mm x 250 mm

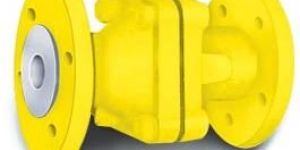

PTFE Lined Check Valves (NRV) are widely used for a number of industrial purposes. We are a reputed Manufacturer and Exporter of PTFE Lined Check Valves. These PTFE Lined Check Valves are better than other conventional valves in terms of functioning. The PTFE Lined Check Valves, provided by us, are light weight and require no flange gaskets. PTFE Lined Check Valves, available with us, have an economical operation and lower maintenance costs. Highlights : Economical operation Lower maintenance costs Light weight Less number of components

Size : 50mm to 300mm

Material : Stainless Steel

Application : Gas Fitting, Water Fitting

Availability : 10-20kg

Pressure : High Pressure

Feature : Blow-Out-Proof, Durable

Our company is credited as one of the foremost Manufacturers and Exporters of PTFE Lined Butterfly Valves. These PTFE Lined Butterfly Valves provide a remarkable chemical resistance. The PTFE Lined Butterfly Valves, available with us, have been added with many interesting features to enhance their reliability and performance. With us, you can avail these PTFE Lined Butterfly Valves at quite affordable prices. Specifications : Available from 25 mm to 300 mm Excellent chemical resistance

Size : 25 mm to 300 mm

Material : Stainless Steel

Application : Gas Fitting, Oil Fitting

Availability : 10-20kg

Pressure : High Pressure

Feature : Casting Approved, Good Quality

Butterfly Valve provides excellent chemical resistance through the use of flouropolymer line body and disc. Many features have been added to this as standard features to elevate butterfly valve of design, reliability & performance. Butterfly Valve is available in sizes ranging from 25 mm to 300 mm.

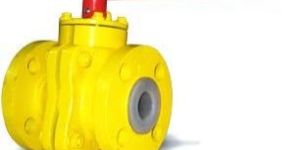

We are a well-known Manufacturer and Exporter of PTFE Lined Ball Valves in the market. The PTFE Lined Ball Valves that we offer have smooth operation and are easy to install. The interior body surface of these PTFE Lined Ball Valves as well as the ball and stem are lined as individual components. We provide high quality PTFE Lined Ball Valves at the most reasonable rates. Details : Available from 25 mm Nb to 200 mm Nb Low torque Quarter-turn operation Bubble tight shut off Minimum pressure drop

Material : Forged Steel

Application : Water Fitting

Availability : 10-20kg

Pressure : Medium Pressure

Feature : Corrosion Proof, Investment Casting

End Connection : Butt Weld

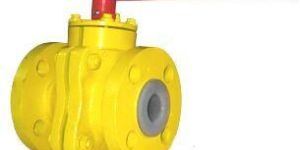

Lined Ball Valve, available from 25 mm NB to 200 mm NB. The interior body surface as well as the stem and ball are lined as individual components. The anti blow-out steam assembly prevents a steam blow-out even when the top gear is disassembled. Valves are supplied with anti-static devices, which provide protection against potentially dangerous electro-static discharge.

Flange : Two piece of carbon steel anges with epoxy one Coated; Stainless steel is available on request. JIS 10K or DIN Is available either. Adjustment screw: Three piece screws with zine plated. Support rings volume=con.-1,carbon steel with chrome plated. Lining : Pure PTFE in compliance with ASTM D4895 Other nominal sizes are available on request.

Customers should not worry about the security of their payments with us as we follow secured Online and Offline Payment Processing. Get in touch with us for obtaining high quality polytetrafluoroethylene as we are a dependable supplier in the town.

We stand tall in the market in being one of the reputed Manufacturers and Exporters of PFA Coatings. The universal chemical resistance of these PFA Coatings at high temperature makes them highly applicable in Chemical industry. Besides this, the PFA Coating is virtually static to chemicals even at a high temperature and pressures. Highlights : Chemically resistant even at high temperatures Cannot be attacked by inorganic basis or strong mineral acids used in chemical industry Resistant to chemical attack Durable

Material : Teflon, FEP, PFA, viton, silicone

Application : Industrial

Packaging Type : Available in many colors

Based in Rajkot(India), we are one of the most sought after names when it comes to qualitative and cost-effective products. Being a trustworthy Supplier in the market, we cater to the demands of the customers by presenting excellent Lined Valves.

Butterfly Valve provides excellent chemical resistance through the use of flouropolymer line body and disc. Many features have been added to this as standard features to elevate butterfly valve of design, reliability & performance. Butterfly Valve is available in sizes ranging from 25 mm to 300 mm.

Size : 25 mm to 300 mm

Pipe ASTM-A105 G. B. SH 40 grade B, in compliance with ANSI B36.10 Lining: Pure PTFE in compliance with ASTM D4894, D4895 Different PTFE Liner thickness and under 4” length lined pipe are upon request.
