H.P. Valves Pvt. Ltd. Asarwa, Ahmedabad, Gujarat

Steam valve, DESIGN FEATURES globe valves MANUFACTURING STANDARDS : BS : 1873API-6DANSI B 16.34 FACE TO FACE AS PER ANSI B 16.10 ENDS FLANGED & DRILLED AS PER ANSI B 16.5 R.F. TESTED AS PER BS : 5146 ABAILABLE WITH ACTUATOR OPERATOR ABAILABLE WITH WXTENSION STEM

Safety Relief Valve represent the most advance technology in value designed for use in intermediate power boiler and organic fluid vaporizer service. Built in conformance to section I of the ASME boiler and pressure vessel code, all capacities am certified by the national board of boiler and pressure vessel inspector at 5% over pressure.

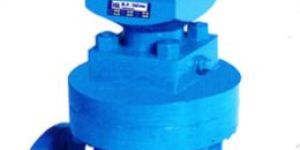

Pressure valve, Pressure Reducing Valve Back DESIGN FEATURES pressure reducing valve MAXIMUM INLET PRESSURE – 250 psig. MAXIMUM OUTLET PRESSURE – 200 psig. MINIMUM OUTLET PRESSURE – 5 psig. MAXIMUM WORKING TEMPERATURE – 450oC Salient Features Self-actuating, Pilot operated for enhanced accuracy, High Quality Stainless Steel Diaphragm Maintain Constant outlet pressure, Irrespective to changes in Inlet Pressure Suitable for medium & Low, Pressure of Steam, Gas, Air & Liquid. Adjustable spring in different range. Interchangeability of the pilot valve component parts simplifies maintenance Reduced pressure accuracy 1% from full flow to 10% of flow.

Pressure regulating valve, DESIGN FEATURES pressure reducing valve MAXIMUM INLET PRESSURE – 250 psig. MAXIMUM OUTLET PRESSURE – 200 psig. MINIMUM OUTLET PRESSURE – 5 psig. MAXIMUM WORKING TEMPERATURE – 450oC Salient Features Self-actuating, Pilot operated for enhanced accuracy, High Quality Stainless Steel Diaphragm Maintain Constant outlet pressure, Irrespective to changes in Inlet Pressure Suitable for medium & Low, Pressure of Steam, Gas, Air & Liquid. Adjustable spring in different range. Interchangeability of the pilot valve component parts simplifies maintenance Reduced pressure accuracy 1% from full flow to 10% of flow.

Pinch valves Seat Less & Glandless Easily Replacable Elastomeric Sleeve Elastomeric Sleeve Have Four Reinforced Pulling Lugs . Flanged Ends & Drilled To Din, Ansi, BS, IS, OR As Required COnstruction To Handle Abrasive Corrosive Media. Pinch Valve Is A Seat Less & Glandless Valve. The Fluid Passing Through Do Not Come In Contact With Either Body Covering Or Any Other Metal Parts Of The Valve Except The Sleeve.

Size : 15MM TO 400MM

Knife edge gate valve, Knife edge Gate Valve features a single piece cast stainless steel fully lugged body, which is very robust in construction to cater to the extreme demanding application. The gates made of stainless steel and other superior alloys are ground with super surface finish on both sides to assure positive shutoff. The machine and highly finished gland pockets ensure a leak proof gland packing and perfect steam steel.

Forged steel valves Ends Flanged (Drilled & Undrilled) As Per Ansi B 16.5 CLASS – 150 R.F. Body Hydrostatic Test Presure Twice The Set Pressure Ibr Approved With Discharge Capacity Constant Of '24' Accurate Spring Designs To Achieve Blow Down Within 5% Which Saves Wastage Of Steam. Soft Seated Safety Relief Valve Are Used For Low Temperature And Critical Application.

Cs globe valve, DESIGN FEATURES globe valves MANUFACTURING STANDARDS : BS : 1873API-6DANSI B 16.34 FACE TO FACE AS PER ANSI B 16.10 ENDS FLANGED & DRILLED AS PER ANSI B 16.5 R.F. TESTED AS PER BS : 5146 ABAILABLE WITH ACTUATOR OPERATOR ABAILABLE WITH WXTENSION STEM

Brass ball valve, FACE TO FACE AS PER ANSI B 16.10 ENDS FLANGED & DRILLED AS PER ANSI B16.5 R.F. TESTED AS PER BS : 5146 6577 END CONNECTION: SCREWED END TO BSP BSPT NPT (F) THDS. SW TO ANSI B 16.11
