Micron Double Pole Isolator
Get Price Quote
60 Piece (MOQ)
Micron isolator helps separate any electrical component from its system while the system is offline or online. A mechanical switch isolates a particular fraction of the circuit when its opening is required in a no-load condition. The Isolator should not be opened when the current is flowing through the line. The isolators are placed on both sides of the circuit. Thus, circuit breaker repair can be done with ease and no risk. Technical Information Standard Conformity : IS/IEC 60947-3 Rated Current (In) : 40, 63, 100 AMP Rated Voltage (Un) : 240V AC Rated Frequency : 50 Hz Rated Insulation Voltage (Ui) : 660 V Rated Impulse Voltage (Uimp) : 4 kV Dielectric Strength : 2000 V for 1 Minute Energy Limiting Class : Class 3 Ambient Temperature(˚C ) : -5˚ to 55˚ Degree of Protection : IP20 Mounting : Snap on DIN rail at (35mm x 7.5mm) Connecting Terminals : 25mm²/35mm² Features Switch disconnector with independent manual operation. CE marking fulfils the requirement of Global Standard. Environment friendly, meets the ROHS compliance as defined by the European Standard. Shock Proof: Finger and Hand touch safe. All moulded parts made from fire resistance engineering plastic ensures protection against Heating and Strong impact. Watt Loss value are much lower than the specific values of IS/IEC Consumes less power, thus cost effective and energy saving. Bi-connect terminals at both sides giving a choice of using either a busbar or a cable to make the connection. Positive Isolation Suitable for Residential & Commercial applications.
Isolator
Get Price Quote

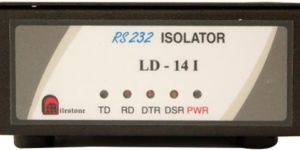

Milestone's "RS232C Isolator" is a device which isolates the input and output connection of RS232C interface with no ground in common.
Best Deals from Isolator Switch
isolator switch
70 Per Piece

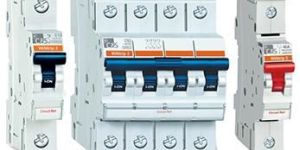

WINTRIP MCB AND ISOLATOR
Get Price Quote
As power distribution needs play a pivotal role in all the significant sectors namely Commercial, Industrial and Residential, improved Breaker performance through better electrical safety, higher operational endurance, continued service and reduced cost have become of paramount importance. C&S MCBs have been engineered to constantly fulfill the above requirements. With these features C&S is setting new standards for user friendly and superlative electrical circuit protection. The C&S MCB is a high performing Thermal Magnetic current limiting device with the ability to disconnect short circuits up to 10kA. The range is available in tripping characteristics types B, C and D for 1P, 1P+N, 2P, 3P, 3P+N & 4P configurations in 0.5 – 125A current ratings. All metal components for operating mechanism of WiNtrip circuit breaker are specially treated for high self lubrication leading to repeat accuracy during service life. The MCBs conform to Standards: IEC 60898-1995 and IS/IEC 60898-1:2002 and stand guaranteed for best quality for optimum performance.
isolator switch
Get Price Quote
isolator switch, air Break Switches, Fire Safety Equipments
Isolator
Get Price Quote
Isolator, Control Relay Panel, relay testing kit, routine testing kit
Isolator
Get Price Quote
Isolator, switch button, electrical goods fan
Isolator
Get Price Quote
Isolator, link dis connector, Kit Kat Fuse, Electrical Isolator
