Kant Plastology Vatva, Ahmedabad, Gujarat

Backed by a team of highly skilled engineers, Kant Plastology engaged in providing a wide range of VICAT SOFTENING POINT APPARATUS. The compact and elegant look of apparatus contains high efficient S.S. 304 tubular heating system for appropriate rate of rise of heat and stirrer motor to create uniform heating in test chamber. The offered apparatus has highly precise temperature control through micro processor based double display digital PID controller. Kant Plastology procures accurate weight, rigid test assembly, test needle & calibrated Dial gauge to conduct the test. Specification

Load cell- dual loadcell of 's type' with different capacity can be connected to single controller load cell unit- kgcmâ² n mpa cross head travel- 1000mm resolution of displ- 0.01mm speed- 5 to 500mmminute speed control- through frequency controlled a.c. Drive power supply- 230v ac, 1 phase, 50 hz

Load cell- single loadcell 's type' load cell unit- kgcm² cross head travel- 800mm resolution of displ- 0.1mm speed- 100mmminute or 300mmminute power supply- 440v ac, 3 phase, 50 hz.

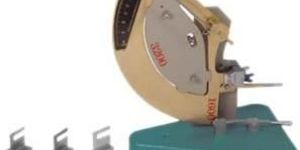

We are offering tear strength tester. Reference standards- astm d1922, astm d1424, astm d689 type- 'elmendorf' pendulum weight- 1600 gf augment weight- 3200 gf, 6400 gf scale- 100% of dead weight fixed on pendulum reading accuracy- 1% fsd material of construction- all major components of brass with polish or hard chrome

Kant Plastology pleased to offer and exclusive range of PIPE IMPACT TESTING MACHINE. The Impact test is usually applicable for uPVC Pipe and Fittings to determine the Impact strength of the same products. The Kant Plastology’s PIPE IMPACT TESTING MACHINE having robust construction, high precision machined parts with dimensional accuracy. The machine consist perfect machined 120°‘V’ block to accommodate the test specimen, operational ease dead weight release mechanism and friction free falling of dead weight. Specification

We are offering pipe impact testing machine. Falling height 2000mm height adjustment manually height adjustment resolution ± 2mm striker(dart) aluminum, s.s. (optional) striker (dart) weight as per standard striker (dart) release device pull release free falling mechanism diameter of test sample ø20mm to ø300mm sample clamping on 120° v block paint powder coated

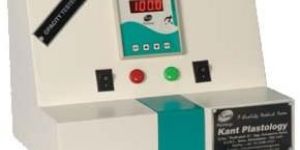

Reference standards- IS 4985, IS 12235 Part-3 System status- Digital Range- 0 -100% Resolution- 0.01% Result- Displayed on controller Reports in terms of- Opacity Light transmission Sample thickness- 0 � 18mm Sample holding system- With operational ease mechanism Paint- Powder coated Power supply- 230V AC, 1 Phase, 50 Hz

system status- Digital Temperature controller- Micro processor based double display PID controller Heating- Through high grade nichrome wire Air circulation- ----------- Temperature range- Ambient to 950°C Temperature least count- 0.1°C Accuracy- ± 0.5°C Timer- Micro processor based double display digital timer (Optional) Timer range- 999.9 Seconds, Minutes or Hours Safety MCB- Available on electrical panel

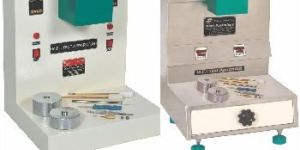

Reference standards- ASTM-1238, ISO-1133, IS-2530 Method- A- A System status- Digital Temperature controller- Micro processor based double display PID controller Temperature range- Ambient to 300°C Temperature resolution- 0.1°C Accuracy- ± 0.1°C Timer range- 0 - 999 second

No. of stations- 03 No. of outlets- 09 Unit of pressure- Kgcm² BAR PSI Pressure range- Up to 99.99 Kgcm² Pressure resolution- 0.01 Kgcm² Time range- 999.59 Hours Time resolution- 1 Minute Material of construction for hydraulic circuit- Pressure pipe & tube fittings are of S.S. 304

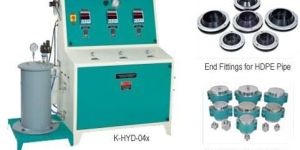

Being a renowned manufacturer of the testing machinery Kant Plastology bring forward an amazing assortment of HYDROSTATIC PRESSURE TESTING MACHINE. The offered machine is manufactured under strict supervision of highly qualified professional who has keen knowledge about base fundamentals and test procedure. The machine is manufactured with modernize technology and prime grade material. In order to ensure quality, the entire range is rigorously tested upon a series of parameters. The offered machine is very user friendly and operational ease. Kant Plastology offers the entire range in various customize specification as per requirement. Specification

system status- Digital Model orientation- Vertical Temperature controller- Micro processor based double display PID controller Cooling- Through specially designed high efficient cooling system Air circulation- Through blower fitted at the back side Temperature range- Ambient to 80.0°C Temperature least count- 0.1°C Accuracy- ± 0.5°C Timer- Micro processor based double display digital timer (Optional) Timer range- 999.9 Seconds, Minutes or Hours

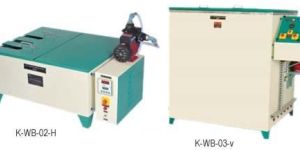

We are leading supplier of huge range of Hot Water Bath.

Temperature controller- Micro processor based double display PID controller Heating- Through high grade nichrome wire placed in the ribs of sides and bottom for uniformity Air circulation- Through aluminum blower fitted at the top at the back Temperature range- Ambient to 250°C Temperature least count- 0.1°C Accuracy- ± 0.5°C Timer- Micro processor based double display digital timer (Optional) Timer range- 999.9 Seconds, Minutes or Hours Safety MCB- Available on electrical panel Smoke ventilation- Installed on top of both sides Insulation- 70mm Thick Glasswool

We are offering hdt test apparatus. Temperature range- ambient to 120°c temperature least count- 0.1°c temperature accuracy- ± 0.5°c temperature ramp- 50°chr & 120°chr cooling- manually specimen thickness- 3 – 13 mm span length- 100mm (others optional) fiber stress- 0.45mpa, 1.8mpa, 8 mpa (others optional) displacement sensing- analog dial gauge displacement range- 0.00 – 10.00

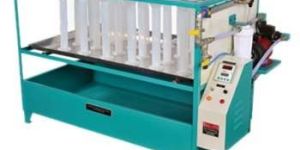

EMISSION FLOW VARIATION TEST APPARATUS is widely used to determine the Emission flow rate of Emitters and Emitting pipe. Kant Plastology feel immensely pleased to offer an exclusive gamut of EMISSION FLOW VARIATION TEST APPARATUS. This apparatus is manufactured by utilizing optimum quality raw material and advance technology by our adroit professionals. The apparatus has precise pressure control on fluid passes through test sample. This apparatus reduce the time and human effort due to common test sample adaptor for 12mm, 16mm & 20mm Emitting Pipe and easy tray sliding arrangement to measure the exact emission flow. Digital timer with auto pump-off function at set time feature is help to determine the accurate test results. Very ease maintenance due to simple mechanism of entire test assembly. Specification

We are offering emission flow test apparatus. System status- digital model- rigid floor standing model sample size- can be test minimum 25 test sample at a time tank- s. S. 304 tank fitted at bottom of equipment of capacity 250 ltr. Filter- 10micron filter inserted at the inlet of pump pressure source- pressure should be developed through high pressure pump of reputed make working pressure- 1.00kgcm² bar to 4.50kgcm² bar accuracy- ± 0.05kgcm² bar

System status- Digital Load cell- High sensitive flat bar type electronic loadcel Weighing capacity- 300 Gms Least count & accuracy- Least count 0.005gms and accuracy 0.5% of full scale Result calculation- Automatic (Auto tare facility available at optional) Display- LCD for readings & results Weighing space- Sliding glass door on both sides with front glass cover Weighing pan- Stainless steel Accessories- Complete specific gravity tool kit, pan straddle & forceps Power supply- 230V AC, 1 Phase, 50 Hz

We are offering cooling chember. Model orientation- horizontal vertical (optional) temperature controller- micro processor based double display pid controller cooling- through specially designed high efficient cooling system air circulation- ---- --- temperature range- ambient to -5.0°c temperature least count- 0.1°c accuracy- ± 0.5°c timer- micro processor based double display digital timer (optional) timer range- 999.9 seconds, minutes or hours.

COOLING CHAMBER (CONDITIONING CHAMBER) is specially used for particular conditioning of the test specimen at 0°C or low temperature before conducting the test. Usaully this machine apply to condition the test specimen for Impact test of uPVC Pipe. Kant Plastology is engaged to supplying the extensive range of COOLING CHAMBER (DEEP FREEZER) with its prowess and accomplished engineering team. The proffer apparatus is design with good aesthetic, energy efficient and calculated cooling system with minimum cooling loss due to P.U.F. insulation and exactitude temperature control. Its internal Stainless Steel body procures the rust free usage of equipment. The utilization of apparatus is very user friendly. Specification

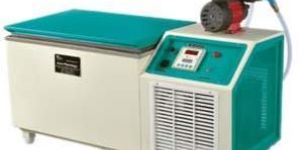

We arae offering cold water bath. Cooling- high efficient cooling system designed by expert wateroil circulation- through water circulation pump of ‘taro’ make temperature range- ambient to 10°c resolution- 0.1°c accuracy- ± 0.5°c insulation- 50mm thick puf.

Reference standards- ASTM D256, ISO 179, ISO 180 System status- Digital Span length of charpy vice- Adjustable 40 – 100mm Impact speed- 3.46 ms, 3.8 ms (others optional) Scales- 2J; 5J; 10J; 15J: 25J (Others optional) Scale least count- 0.01J

We are carbon dispersion tester. Hot plate- 6- s.s. 316 to make thin film test sample hot plate temperature control- blind regulator type thermostat microscope- projection microscope microscope illumination- 12w halogen lamp. Lamp slots provided for natural cooling of the illuminatorfor natural cooling of the illuminator magnification- 10x & 20x

System status- Digital Heating element- 1000 Watts heating element wounded on ceramic tube Temperature controller- Micro processor based double display PID controller Temperature range- Ambient to 950°C Temperature least count- 1°C Accuracy- ± 2°C Furnace- With dual insulation such that the outer surface temperature does not exceed 50°C Effective furnace size- 300mm in Length x Ø30mm Pyrolyting chamber- Heat resistant quartz glass tube
