leelam Kathwada, Ahmedabad, Gujarat

We manufacture and offer our watering vacuum pumps that have the following features that include: Entrained liquid drops, Condensible vapours, or occasional slugs of liquid can be handled without damage to the pump or significant effect on capacity. In the case of vapours, the pump can also serve as a condenser. No lubricant or oil is required within the pump itself. Thus the air or other discharge gases are not contaminated. The liquid which forms the ring (usually water) serves both as a sealant and a pumping media. A wide selection of materials and seal liquids can be used when corrosive gases and vapours are being pumped. The watering vacuum pumps contain no metal parts that rub against each other. Packing glands and bearings are accessible from the outside. There is no clearance volume and the pumping action is smooth and uniform (non-pulsating). The only moving part is a balanced impeller which reduces noise and vibration. This means lower foundation, installation and service costs. The pump can be provided with partial liquid recycle, closed loop liquid operation, automatic control and other features. Mechanical seals can be provided as an option. Small entrained solid will pass through the pump. However, abrasive particles, will result in reduce pump life. Each pump is performance tested prior to shipment. Wide choice of Materials: Standard material of construction is cast iron with semi steel rotor. Shaft material is stainless steel for model LM-15 to LM-75, large size are carbon steel with brass of stainless steel shaft sleeves for wetted parts. Alternate combination materials are available for special applications. Some specific Applications: Draining paper webs. Saturating insulation materials, wood and textiles. Evacuation condensers and piping Priming pumps Evaporation acids, blood and milk. Drying resins, paints and chemicals.

These heavy-duty units ore designed for continuous service, with o special arrangement lo prevent the rapid back-flow of air in to the blower from the discharge area. This design reduce noise, pulsation and horse power level over conventional blower.The twin-lobe rotor profile ensures maximum volumetric efficiency with minimum powerabsorption. All LEELAM blower units may operate under either vacuum or pressure application with noequipments modification. All LRP series ore available with special seals for gas applications.

Our two stage watering vacuum pumps are high performing and yield better output to our clients. These two stage watering vacuum pumps are offered in the following specifications Max. Vacuum Achieve : 725 mm.Hg. Capacity : 80M3/ Hr to 1200 M3/Hr Recommended Motor : 5 HP to 20 HP Material of Conts : C.I Partial Bronze (GBZ) , Partial S.S, S.S, Rubberlined, And other on demand Sealing Water Tem. : 30°C. Drive : Direct Coupled Larger capacity Pumps Available upon request.

We have for our clients twin lobe rotary compressors that are well designed and are compact in size. These twin lobe rotary compressors are known for their high efficiency and come with the following features: Type : Air cooled, water cooled Capacity : 10 M3 / Hr to 12,000 M3/ Hr Pressure : 100M BAR to 1000M BAR Recommended Motor : Will be as per Capacity or pressure. Material of Const. : C.I,.S.S. Drive : Direct or V-Belt

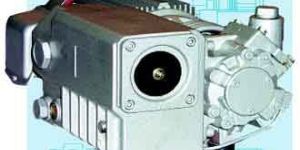

We manufacture high vacuum pumps that are of oil-immersed, rotary vane type pumps. The rotor, with two spring loaded vanes, is mounted eccentric in the stator body, As the rotor, rotated the vanes sweep the crescent shape valve which prevents back flow of air. Manufactured from graded material, all moving parts are precisely machined, ground and assembled with close tolerances. This results in increased efficiency and long trouble free operating life.Accessories : Air admittance Valve: It is electromagnetic solenoid type which admits air into the system as soon as the power supply fails. This prevents back flow of oil to the the system. Air Ballast: This a vent pipe introducing air before actual compressions which eliminated condensation of the sucked vapor. There by avoiding contamination of oil. Non Return Valve: It is rubber diaphragm type spring loaded valve, which prevents back-flow of oil to the system as soon as pump stops. These can not be used to hold the vacuum in the system for longer period. Extra charge for : Moisture Trap Inlet Dust Filter Vacuum Gauge with Regulator Trolley for small Pumps Use oil: ENCLO-68 (H.P) SAE-30 or equivalent, vacuum Oil. Model LM-500 I and above, are provided with water cooling jacket. Applications: Dehydration and filtration processes. Distillation Exhausting Electronic Tubes, GLS Lamps, Mercury vapor Lamps and Tubes Vacuum Metallurgy Vacuum sublimation Vacuum impregnation Thin film coating Refrigerator and air conditioner servicing Freeze drying of foods.

This design is used for industrial applications at coarse and fine vacuum. The increased ability of these smooth running pumps offers high efficiencies and silent running.Some specific Applications: Dehydration and filtration processes. Distillation Exhausting electronics tubes, GLS lamps, Mercury Vapour Lamps and tube Vacuum sublimation Vacuum impregnation Thin film coating Refrigerator and air-conditioner servicing. Freeze drying of foods.

We offer state of the art twin lobe mechanical vacuum boosters. They enhance the performance of vacuum pumps, because the volumetric efficiency of Vacuum pump is poor in low pressure operation. They enable operation between 10 mbar. A to 103 mbar. A. The mechanical vacuum boosters handles large volume of gas at relatively very low power consumption, because the construction of booster ensures contact free rotation of two figure of “8” lobes; maintaining very close clearance. The conveyance is free from oil. We offer total system to meet specific requirements complete with primary pump (Backing Pump) and instrumentation to perform automatic / semi automatic operations.

The liquid ring vacuum pump is designed to handle liquid, water, gas and air movement applications in various industries. We design vacuum pumps based on widely acclaimed liquid ring technology to offer high end transfer solutions in industries. Our liquid ring pumps are the best devices for handling applications like vacuum filtration, extracting moisture, removal of water from pulp during paper processing, mineral beneficiation, ash handling and much more. Available in 5000 m3 /hr to 22000 m3 /hr working capacity, our liquid ring vacuum pump is the right device for use in sugar mills, oil refineries, distilleries, coal washeries, power plants and mines. It can serve wide range of applications in paper, chemicals, pharmaceuticals, fertilizer, railways and textile industries.

We manufacture fluid couplings that are used for transmitting rotating mechanical power. Made using high quality raw materials, these fluid coupling are durable in quality and find their usage of in various marine a s well as industrial machine drives. Our fluid couplings are also used in various automotive and aviation applications.
