NOTES : 1. FLANGE AS PER BS 10 TABLE-H HYD. TEST. PRESSURE FOR BODY60kg/cm2 (C.S.)26 kg/cm2 (C.I.) DRILLED OR UNDRILLED AS PER CUSTOMER’S REQUIREMENTS

NOTES: WORKING PRESSURE 17.5 KG/CM2 TESTING PRESSURE 35 KG/CM2 MELTING POINT OF FUSIBLE ALLOY IS ABOVE 1500F (ABOVE 650 C) INEXECESS OF SATURATED TEMPRETURE AT MAXIMUM PERMISIBLE WORKING PRESSURE OF THE BOILER

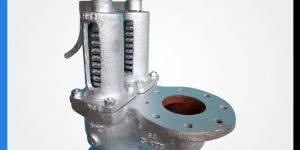

SALIENT FEATURES Heat and corrosion resistant high chrome alloy trim self aligning flat faced valve, disc and remain pressure tight . Carefully lapped flat faces of valveand seat to optical precision guarantee pressuretightnessTop guided to ensure high discharge capacities . Thus ensuring the use of a valve of the minimum size for the given duties.Materials used are selected to suit service conditions HIGH LIFT SAFETY VALVE Modern plants demands highly efficient well designed meticulously manufectured safety valves. Our this safety valve is capable of dealing with the pressure and temprature normally used are as per I.B.R NOTES FLGD . AS PER BS-10 TABLE - H/DIN 40 To facilitate operation , all heavy duty valves have Yoke Sleeves fitted with Thrust ball Bearings. In class 150 and 300 lbs, they are provided from Nominal Diameter 14" and onwards. SET PRESSURE 40 KG / CM SQ. MAX

Heat and corrosion resistant high chrome alloy trim self aligning flat faced valve, disc and remain pressure tight . Carefully lapped flat faces of valveand seat to optical precision guarantee pressuretightnessTop guided to ensure high discharge capacities . Thus ensuring the use of a valve of the minimum size for the given duties.Materials used are selected to suit service conditions SAFETY VALVE : A Valve which automatically discharges gases & vapours so as to prevent a predetermined vapours so as to prevent a predetermined safe predetemined safe pressure being exceeded. it is characterised by a rapid full opening action & used for steam, gases or vapour service.

NOTES: The sliding discs & seats tested for anti-seize Operation. Operation by Rack & Pinion gives full opening with half turn of the Box key. Locking arrangement in the gland is devised in such a way that the Box key can not be removed while the valve is open. All the Working Parts of S.S. Also Available as per TABLE-‘J’ on Request. TABLE-‘J’ for working steam press. Above 250 up to 350 Lbs/sq.inTEMP. 8000 F (427 C)

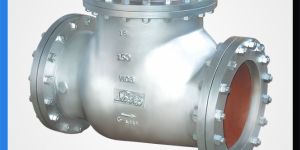

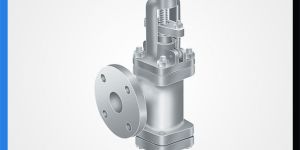

SALIENT FEATURES They are rugged and sturdy in construction . Body and bonnet casting have heavy metal section in excess of minimum requirement Streamlined contours to ensure that the pressure drop is minimum Close -fitting male and female joint retain gasket in position and accurately centers the working parts . Special alloy of trim is highly heat resistant and non-corrodible . Flat face of valve &seat lapped on flat surface lapping machine ensures better pressure tightness. Lift type Valve decreases hammer blow on seat due to back pressure . Lift Check valve Disc is of heavy one piece construction to withstand severe shock of Check valve service Swing Check valve Disc is fastned securely to disc carrier by means of a lock nut and cotter pin , Disc is free to rotate to avoid localised wear. A variety of end flange facing can be provided . Valve flanges can be drilled to different standard INSPECTION: Third party inspection by Lioyds, Bureau Veritas, ABS, UHDE, Bax Council, EIL and IBR etc. are being regularly Carried out against customer requirement. NOTES FOR CHECKS VALVES : The standerd Body /bonnet is material is of cast steel to ASTM A 216 Gr. WCB Body / Bonnet in Grades LCB /C-5 /WC-6/WC-9/CF-8/CF-8M/CF-3/CF-3M etc.Available to suit requirment.Trim: 304/316/Stellite etc. Pressure Sealed Bonnet Available in higher classes on Request

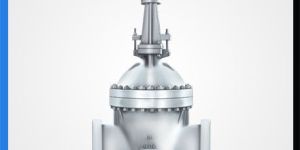

SALIENT FEATURES They are rugged and sturdy in construction . Body and bonnet casting have heavy metal section in excess of minimum requirement Streamlined contours to ensure that the pressure drop is minimum Close -fitting male and female joint retain gasket in position and accurately centers the working parts . Special alloy of trim is highly heat resistant and non-corrodible . Flat face of valve &seat lapped on flat surface lapping machine ensures better pressure tightness at fingertip operation and minimizes wear & tear of spindle &bonnet . The Extra - deep stuffing box together with the smooth ground spindle ensures fluid tightness and long packing life The gland is held in place by swinging hinge bolts which will not loosen in service A variety of end flange facing can be provided . Valve flanges can be drilled to different standards INSPECTION: Third party inspection by Lioyds, Bureau Veritas, ABS, UHDE, Bax Council, EIL and IBR etc. are being regularly Carried out against customer requirement NOTES FOR GATE VALVE : The standerd Body /bonnet is material is of cast steel to ASTM A 216 Gr. WCB Body / Bonnet in Grades LCB /C-5 /WC-6/WC-9/CF-8/CF-8M/CF-3/CF-3M etc. Available to suit Requirements.Trim: 304/316/Stellite etc. To facilitate operation , all heavy duty valves have Yoke Sleeves fitted with Thrust ball Bearings. In class 150 and 300 lbs, they are provided from Nominal Diameter 14" and onwards. Pressure Sealed Bonnet Available in higher classes on Request .

Body : Robustly designed to withstand stringent duty condition, Smoothly configurated to reduce Turbulance. Long and Accurate Guides : Optionally toleranced for free movement of wedge in flow path and retaining leak tightness even in fluctuating line condition. SuperFinish Seating Faces : High accuracy and superfinish by lapping of body ring and wedge seat faces, guarantee zero leak and reduce operational torque. Deep Stuffing Box : Facilitates extra number of gland packings and ensures pressure tightness and long packing life, can be repacked while valve is back seated. Spindle-Wedge : T-SLOT is housed in the wedge in such a manner to improve transmission efficiency of torque from spindle to wedge and ensure leak tightness. the solid flexible wedges fitted in Gate Valves are Cast Steel having 13% Chrome Welded seat facings, machined with exterme accuracy and finaly ground and lapped to a mirror finish to secure no-leak condition and to minimize the risk of galling. Quality : Committed with dedicarion. Inspection : Third Party Inspection by Lloyds, Bureau Veritas, ABS,UHDE,Bax Council,ElL,PDIL and IBR Etc. are being regularly Carried out against Customer requirements. NOTES FOR GATE VALVE : The standard Body/ Bonnet material is of Cast Steel to ASTM A 216 Gr. WCB. Body-bonnet in grde lcb/c-5/wc-6/ wc-9/cf-8/cf-8m/cf-3/cf-3m ect. trim: 304/316/ Stellite ect. Available to suit Requirements. Yoke will be provided from size 8" and onwards To facilltate operation, all heavy duty valves have Yoke Sleeves fitted with Thrust Ball Bearings. In class 150 and 300 ids, they are provided from Nominal Diameter 14" and onwards. In class 600,900 and 1500 ibs. from 6" and onwards. Pressure sealed bonnet available in higher classes on Request.

SALIENT FEATURES The “Equilibrium” water Gauge Glass Cock is of a simple construction eliminating all complicated devices. If the Gauge Glass should break, water is automatically shut off by means of the ball valve provided in the water arm. Main body is from Bronze to IBR Specifications. The use of compressed asbestos fibrepacked sleeves fitted in the body makes the Gauge Glass cock almost perinial for service. Leakage which is due to wear and tear to sleeve can be adjusted as following: (1). Tighten the nut on the handle slowly till the leakage stops while tightening the nut, rotate the handle forward and backward to ensure that the spindle is not jammed. (2). Tighten the bottom plug to the extent to keep the spindle rotation free. The Sleeves when completely worn out after extensive service can be easily replaced. As improvements are made from time to time, the specification is subject to alteration without notice.

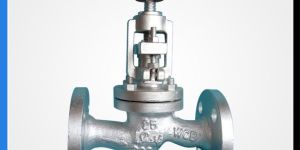

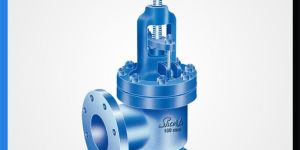

SALIENT FEATURES Heat and corrosion resistant high chrome alloy trim. Self-aligning flat faced valve, disc and seat remain pressure tight. Carefully lapped flat faces of valve and seat to optical precision, guarantee pressure tightness. Top guided to ensure high discharge capacities. Thus, ensuring the use of a valve of the minimum size for the given duties. As improvements are made from time to time, this specification is subject to alteration without notice. NOTES: CAST IRON BODY. Pressure Upto 13 kg/Cm2 temp. 4280F CAST STEEL BODY. Pressure Upto 40kg/Cm2 temp. 4000C BRONZE BODY. Pressure Upto 17.5 kg/Cm2 temp. 4280F

SALIENT FEATURES More economical than conventional Sluice Valve. trouble free service with positive shutoff, totally reliable mechanically and structurally structurally strong & sound. Streamlined Disc gives smooth & flutterless flow with low pressure drop. Designed for Horizontal & vertical installation Compared to other Valves, weight wise or dimensionlly. It is easy to install.

NOTE FLANGE AS PER B.S.10 TABLE H. MAX. WORKING PRESSURE 13KG/CM2. MAX.TEMPERATURE 220C. ALSO AVALABLE IN PN-10 &PN-16.
