Maximum working pressure413 bar / 6000 PSI at 100°C
Gland PackingPTFE / Graphite
Standard process connection½
Standard instruments connection½
Drain¼

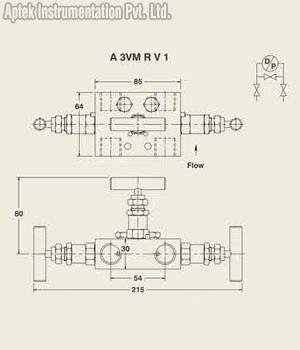

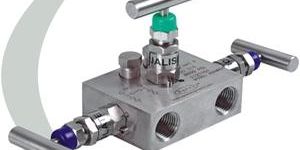

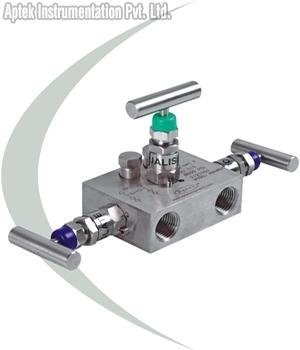

These manifolds are generally used in differential pressure application with Pressure gauges, Pressure switches & pressure trasmitters. Two isolation valves & one equilizing valve is provided. The standard connections are ½" NPTF. The drain connection of ¼" NPT is provided as an option. The different models are available as mentioned below. MOC in accordance with NACE MRO175 is available on request. Monel, Inconel, Hastelloy, Duplex Steel are also available on request. Valves for 10000 PSI working pressure are also available.
