MISTURA TECHNOLOGIES Odhav, Ahmedabad, Gujarat

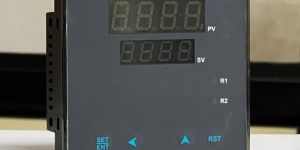

Display Type Digital Supply Voltage 230V AC, 50 / 60 Hz, Approx. 4VA Type Digital Usage/Application Industrial Mounting Type Flush mounting Power Source AC Voltage 230V Brand Mistura Rated Voltage 230VAC or 24VDC Frequency 50 Hz Model Name/Number UTR-9611 Rated Current 10A Keyboard Type Tactile switch Size 96x96 Material ABS Body Accuracy 0.01% Color Black Counting Direction Up/Down (Configurable) Count Mode Up Current 10A rating Function Universal Packaging Type Standard Box Packing Memory Yes Warranty 1 Year warranty Number Of Channel 1 Operating Temperature 0 DegreeC To 55 DegreeC Operating Voltage 230VAC Power Reset Yes Output Contact Relay 1 Phase Single Phase Range 99.99/999.9/9999 Sec/Min/Hrs (configurable) Relative Humidity Up to 95% RH Non Condensing Size/Dimension 96 X 96 X 50 mm Insulation Resistance Yes Time Ranges 0-99.99/9.999/999.9/9999 Sec/Min/Hrs Cut Out Size 92x92 Dimension Over All W x H x D Size(HxWxD) 96 X 96 X 50 mm Dimensions (H x W x D) 96x96x50 mm Country of Origin Made in India Availability In Stock

Accuracy : 0.01%

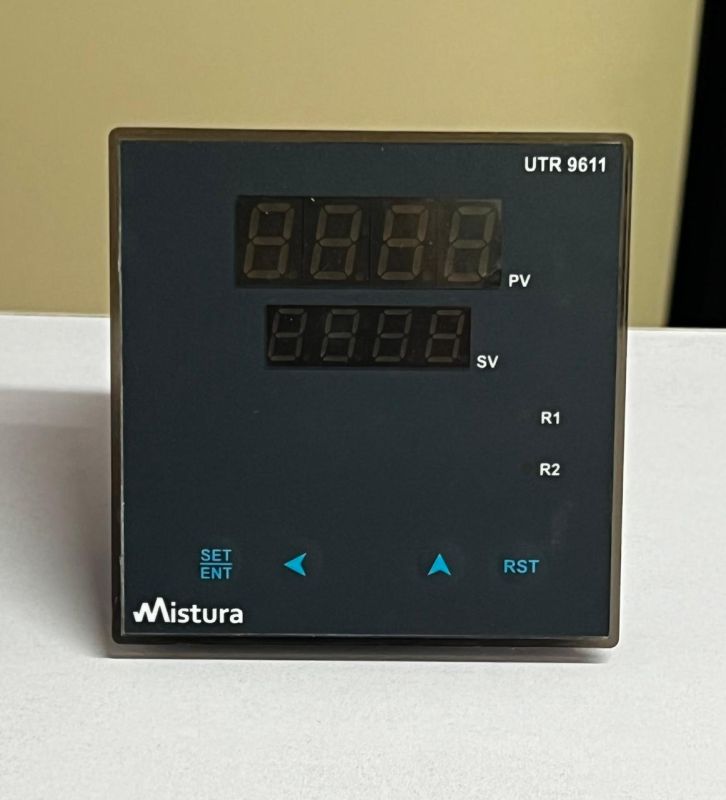

Model Name/Number : UTR-9611

Brand Name : Mistura

Model LDC-9662 Dimenssion (HxWxD) mm 96x96x80 Panel Cutout (mm) 92x92 Input  0-30 mVDC from Loadcell Output 1 2 Relay 1 C/O 5A 230V AC Output 2 4 Relay 1 C/O 5A 230V AC (Optional) Output 3 4 to 20ma (Optional) Output 4 RS-485Modbus Communication (Optional) Supply 85-270VAC,50/60Hz

Driven Type : Electric

Color : Black

Condition : New

Application : Automation

Feature : Auto Controller

Voltage : 220V

Display Type : Digital

Certificate : CE Certified, ISI Certified

Model DT-7211 Dimenssion (HxWxD) mm 72x72x60 Panel Cutout (mm) 68x68 Input Sensor 999, 99.9 Min / Sec (Configurable) Output 2C/O, 5A , 230V AC, 12V DC SSR Output (Any one factory set) Reset Mode Auto / Manual Operating Mode Delayed ON / Delayed OFF (Configurable) Count Direction UP / DOWN (Configurable) Memory YES / NO (Configurable) Supply 230V AC 10%, 50Hz (Linear Power Supply)

Accuracy : Class 1

Model Name/Number : DT-7211

Brand Name : Mistura

Model ELR-9611 Dimenssion (HxWxD) mm 96x96x50 Panel Cutout (mm) 92x92 Input  30mA to 3.00A AC30mA to 30.00A through External CBCT Output  Relay 1 For Tripping Accuracy Class 0.5 Supply 85-270VAC,50/60Hz

Brand Name : Mistura

Material : Abs

Application : Indistrial

Size : 96x96x50

Certification : CE Certified

Model MS-9700 Dimension (HxWxD) mm 96 X 96 X 50 Panel Cutout (mm) 92 X 92 Input Sensor J/K/PT-100/2W/3W Input Range J:600°C,K:1200ºCRTD PT 2W 3W: (-99º to 400°C,-99.9°C to 400°.0ºC) Output 1Output 2Output 3 4 Relay For Grouping FacilityRS 485 Modbus ComunicationUSB Port, Pen Drive Compatiable Accuracy 1% of FSD Supply 100-250V AC, 50/60 Hz

Country of Origin : India
