NK INDUSTRIES Vatva, Ahmedabad, Gujarat

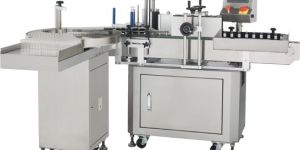

Vial labeling machine for Round Bottle -NKSAL 120. This Sticker Labeling machine can perform wide range of wrapping like wrap around , Partial wrap on round surface.Facility to incorporate the Batch coding printing like Inkjet printing or hot foil coding & contact coding.

Availability : 300 Kgs (Approx.)

We are reputed manufacture of Sticker Labeling Machine for Round Bottle -NKSAL 120. This Sticker Labeling machine can perform wide range of wrapping like wrap around , Partial wrap on round surface. Salient features: Sticker Labeling machine offer following outstanding basic features: cGMP model High Production Speed up to 120 BPM depends upon the type of diameter of Round container. S.S. 304 Constructions. Accurate label dispensing due to use of either servo motor or efficent stepper motor inconjuction with mirco stepping driver. Secondary Pressing unit. Facility to incorporate the Batch coding printing like Inkjet printing or hot foil coding & contact coding. Automatic Label Length Detection. No change part required for label and bottle. Basic Machine configuration: Imported Gear Motor and gear box A.C. Frequency Drive for main drive. Imported Servo motor with driver or stepper motor with driver Imported Sensor for Label & Container PLC system with touch screen HMI.   Optional features available on demand like: Following features are avilable on customer demand in our all range of sticker Labeling machine. Automatic rejection system with separate conveyor. Missing Label Detection on Product Toughened Glass Safety Cabinet Empty Roll Alarm System Vision system for Checking Labels Tower Light Showing Machine Status

Availability : 300 Kgs (Approx.)

Semi Automatic Ropp Cap Sealing Machine Is N.K Industries Solution For Start Up Industries Where They Can Efficetly Cap The Bottle At Lower Capital Cost. Compact & versatile unit. S.S. Elegantly matt finished body. Built in front control panel. Quick setting. Motorized head movement. No change parts require for different container diameter. Low noise level, low power consumptions. Adjustable bottle height gauge for easy and quick setting. SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion.

Net Weight : 200 Kgs. Approx.

Automatic Lug Capping Machine Completely stainless steel Construction. Capable of vacuum capping of the bottles with lug or twist-off caps as well as of those not necessarily to be vacuumed. Decreases the air pressure inside a bottle by high-speed steam injection, tightens the bottle cap and then vacuums the bottle by flushing cold water Specially designed Vibrator unit to keep the uni direction of cap. Machine clutch in case of any jamming of bottle during the machine operation.

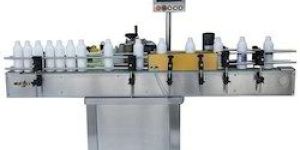

Labeling equipment High Production Speed up to 120 BPM depends upon the type of diameter of Round container.Accurate label dispensing due to use of either servo motor or efficent stepper motor inconjuction with mirco stepping driver.Facility to incorporate the Batch coding printing like Inkjet printing or hot foil coding & contact coding.

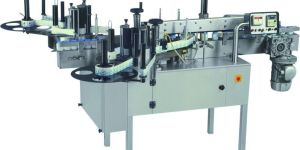

Automatic Flat Bottle Sticker Labeling Machine for Front and Back Labels Model NKSAL -120F is Suitable for applying Front and Back Labels on Flat/Oval/Square/Round shape containers with output upto 120 Labels per minute depending on products and label size. Salient Feature: S.S. 304 Constructions. Facility to incorporate the Batch coding printing like Inkjet printing or hot foil coding & contact coding. In built Speed Indicator & Counter. No Change Parts for Label size, Feed Worm and Pocket System required for change in product size. Single Pot On-line Speed Variation control Synchronized speed of Label Dispensing, Conveyor and Top Hold Belt System Virtually Maintenance free machine. Easy to change label application heigt User Friendly Label Placing Adjustment Suitable for On-Line Inkjet and Contact Coding System Suitable for Partial, Full Wrap Around and Overlap Labeling Built In A.C. Variable Frequency Drive System Fully Stainless Steel finish Machine.

Automatic Flat Bottle Sticker Labeling Machine for Front and Back Labels Model NKSAL -120F is Suitable for applying Front and Back Labels on FlatOvalSquareRound shape containers with output upto 120 Labels per minute depending on products and label size.

Automatic Flat Bottle Sticker Labeling Machine for Front and Back Labels Model NKSAL -120F is Suitable for applying Front and Back Labels on FlatOvalSquareRound shape containers with output upto 120 Labels per minute depending on products and label size.

Automatic Flat Bottle Sticker Labeling Machine for Front and Back Labels Model NKSAL -120F is Suitable for applying Front and Back Labels on FlatOvalSquareRound shape containers with output upto 120 Labels per minute depending on products and label size.

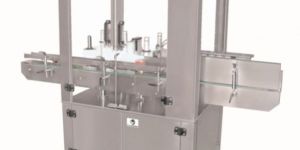

High Speed sticker Labeling machine is N.K Industries solution for labeling at relatively higher speed in industries like pharmaceutical , Food , Pesticide etc. A total cGMP model High Production Speed up to 240 containersmin depends upon the type of vial. S.S. 304 Constructions. Servo Assisted Accurate label dispensing. Secondary Pressing unit. Batch coding printing like Inkjet printing can be accommodating. Automatic label length detection.

  Product Range Sticker Labeling Machine For Round Bottle Automatic High Speed Sticker Labelling Machine Flat Bottle Sticker Labeling Machine Automatic High Speed Ampoule Sticker Labeling Machine Automatic Horizontal Sticker Labeling Machine Automatic Horizontal Sticker Labeling Machine Silent Feature of Machines: A total cGMP model High Production Speed up to 140 containers/min depends upon the type of PFS. S.S. 304 Constructions. Accurate label dispensing. Secondary Pressing unit. Facility to incorporate the Batch coding printing like Inkjet printing or hot foil coding & contact coding. In built Speed Indicator & Counter Schematic Machine working: NKSALT -120, Automatic Self Adhesive Labeling Machine is used for labeling of round container which are previously filled and sealed. No change parts are required for change over of container size. Cylindrical containers are needed to be put on the in-feed Slant conveyor manually or speaciaed machine is equipped with hopper for automatic feeding. Label is placed on the container immediately when it will be sensed by the container sensor, it ensures instant adhesive of label’s edge. Then it passes through the pressing unit resulting in precise registration and crease-free application.

Speed : 0 to 150 (variable) Product / min. with over imprinting

Availability : 320 Kgs. Approx.

High Speed sticker Labeling machine is N.K Industries solution for labeling at relatively higher speed in industries like pharmaceutical , Food , Pesticide etc. Silent Feature of Machines A total cGMP model High Production Speed up to 240 containers/min depends upon the type of vial. S.S. 304 Constructions. Servo Assisted Accurate label dispensing. Secondary Pressing unit. Batch coding printing like Inkjet printing can be accommodating. Automatic label length detection. Basic Machine configuration Imported Gear Motor Imported Gear Box Imported A.C. Frequency Drive for main drive. Servo motor with High efficiency driver with encoder inbult Imported Sensor for Label & Container PLC system with touch screen HMI. NKSAL -240, a High Speed Sticker Labeling machine is used for labelling of round container which is previously filled and sealed. No change parts are required for change over of container size. Machine conveyor will receive container from infeed turntable, it will be separated by the feeding roller assembly to maintain the pre determined space between the two containers according to the label length and container diameter. Label is placed on the container immediately when it will be sensed by the container sensor, it ensures instant adhesive of label’s edge. Then it passes through the pressing unit resulting in precise registration and crease-free application. Optional Features: Label Roll Empty - Machine Stop System with Alarm Missing Label in Roll - Machine Stop System with Alarm Special Label Sensor for sensing Transparent Film Labels which does not have any sensing mark on it. Toughened Glass or Acrylic Safety Cabinet for Machine Tower Light showing the machine status / operation Special Sensing system for checking missing label on product Visison System for checking Barcode, presence or absence of Coding or pharma code on labels Vision System for checking various detail on labels Online pneumatically operated product rejection system Wrap Round System for applying Wrapround Label on Round Bottles.

Speed : Up to 240 Vials / min.

Availability : 500 Kgs (Approx.)

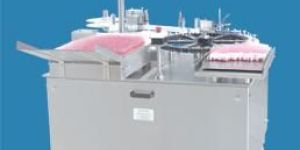

Automatic High Speed ampoule sticker Labeling machine NKSAL-300A Silent Feature of Machines: Our Range of Automatic High Speed ampoule sticker Labeling machine is equipped with following features A CGMP model High Production Speed up to 250 containers/min depends upon the body diameter of ampoule. S.S. 304 Constructions. Accurate label dispensing. Secondary Pressing unit. Provision for Online Batch coding printing like Inkjet printing can be easily accommodate. Imported Gear Motor for Conveyor & Pressing unit Imported Gear Box for Conveyor & Pressing unit Imported A.C. Frequency Drive for main drive In built Speed Indicator & Counter Panasonic make Servo Motor with Controller Datalogic , Italy Sensor for Label & Container No Change Part for Label Size.2   With tray, the ampoules are loaded to the in feed conveyor. The infeed conveyor belt is a endless pvc belt which carries the ampoules towards the labelling section with the help of feed worm. The in feed worm picks the ampoules and transfers the same by keeping pre determined space between two ampoules to the rotating star wheel. The star wheel carries the ampoules and moves towards the label applicator. A sensor for sensing ampoule is fitted before the label applicator which senses the ampoules and in turn, servo motor allows the label applicator to release one label which gets sticked on the ampoule. One label sensor is provided in the machine which senses the gap between two labels. This ensures that only one label is applied to the ampoule at a time. Once the label gets sticked to the ampoule it passes through the pressing belt where the labels get properly pressed without giving any crease. After this the ampoules are guided to the out feed tray where the ampoules are collected and taken for the next operation.

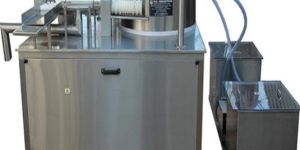

The Automatic High Speed Rotary External Ampoule Washing Machine Model NKEAW-250 is used to wash external surface of cylindrical container like Ampoule after the filling and sealing operation done. It is equipped with 4 stage of washing which include washing medium like Detergent Water, Tap Water, Air wash & heating & washing sequence can be changed as per customer requirement. The speed of the machine is up to 250 Ampoule per minute. The Automatic High Speed Rotary External Ampoule Washing Machine has a uniquie temperature control system for water & compressed air. The control system has capability to display the set parameters and actual parameters. Machine has inbuilt auto draining facility for water line.The Automatic High Speed Rotary External Ampoule Washing Machine is applicable in pharmaceutical & injectable segment.

Ampoule labelling machine Provision for Online Batch coding printing like Inkjet printing can be easily accommodate.Imported Gear Motor for Conveyor & Pressing unit, Imported A.C. Frequency Drive for main drive.

Ampoule labeling machine High Production Speed up to 250 containersmin depends upon the body diameter of ampoule.Imported A.C. Frequency Drive for main drive, Panasonic make Servo Motor with Controller.
