NOBLE ABRASIVE INDUSTRIES Vatva, Ahmedabad, Gujarat

Segments are used in rotary table surface grinding applications on differently shaped components. The Noble range of grinding segments are made in a variety of shapes and sizes giving users the flexibility to find the right solution for their grinding needs. Along with flexibility our segments also offer excellent performance through superior cutting and higher stock removal due to our special bond systems. The VS2 bond, developed in-house provides excellent cutting action and life while the open structured VSPS bond system is designed for cool cutting applications. Manufactured with a range of abrasive materials we have a surface grinding solution for just about any of your requirements. Surface grinding segments are used for flat surface grinding by assembling many segments on a special form to create a large wheel. They are used to sharpen knives or blades, produce flat stock and grind large mold surfaces. Some of the industries that commonly use segment surface grinding solutions are Auto OEMs Auto ancillaries Tools and dies Cutting tool Standard Sizes 140 * 79 * 20 mm (With Radius) 150 * 80 * 25 mm (With Radius) 150 * 90 * 35 mm (With Radius) 152.4 * 84.14 * 38.1 mm (With Radius) Industrial use Automotive

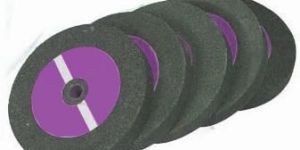

The Noble range of resin bonded snagging wheels is engineered to get you the perfect balance of stock removal and wheel life, ensuring you of top performance. Snagging, also called fettling is an important manufacturing step in the foundry and steel industries. Our wheels are favorites of users in the following fields.

Snagging wheels are used in the smoothening of weld seams, cleaning of castings, surface preparation for painting or plating and billet conditioning. The Noble range of resin bonded snagging wheels is engineered to get you the perfect balance of stock removal and wheel life, ensuring you of top performance. Snagging, also called fettling is an important manufacturing step in the foundry and steel industries. Our wheels are favorites of users in the following fields. Foundry Welding Fabrication Steel milling Shipyards Railway Earth moving equipment Standard Sizes 300 * 40 * 31.75 mm 300 * 40 * 38.1 mm 300 * 40 * 50.8 mm 400 * 63 * 152.4 mm 500 * 75 * 203.2 mm Industrial use Metal Fabrication Construction

Reinforced cut-off wheels are used for notching, sheet metal cutting, pipe cutting, removal of risers, metal plate dimensioning, bar cutting, rail cutting etc. Our competency lies in offering our clients an excellent quality range of Cut off Wheel. Our offered wheel is known for their optimum quality & best usage. This wheel is manufactured with latest techniques & high grade material, under the direction of our experts by following the set norms of industry. Along with that, our wheel is tested on various parameters to assure its defect free range. Features: Finely finished Abrasion resistance Unmatched quality Standard Sizes: 100 * 3 * 16 mm 125 * 3 * 22.23 mm 180 * 3 * 22.23 mm 230 * 3 * 22.23 mm 300 * 3 * 25.4 mm 350 * 3 * 25.4 mm 400 * 3 * 25.4 mm

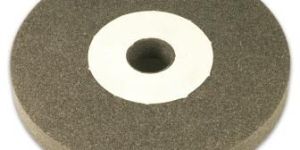

Offhand grinding wheels are used in bench, pedestal and portable grinders to remove excess material, sharpen tools and in the smoothening of weld seams. Noble offhand grinding wheels are made to reduce operator fatigue, last long and grind a wide variety of materials while reducing overall grinding costs. They find use in the grinding of excess material found in large castings and forgings, smoothening of weld seams and re-sharpening of single point cutting tools. Our wheels are made of brown aluminum oxide (to grind steel and steel alloys) and black silicon carbide (to grind non-steel and non-ferrous materials). Offhand grinding wheels can be used on portable grinding machines as well as bench and pedestal machines. Some of the major industries that use offhand grinding applications are Foundry and forging General Engineering Hand tools Agri implements Standard Sizes 100 * 20 * 31.75 / 15.88 mm 100 * 25 * 31.75 / 15.88 mm 150 * 13 * 15.88 mm 150 * 20 * 15.88 mm 150 * 25 * 15.88 mm 200 * 10 * 31.75 mm 200 * 25 * 31.75 mm 300 * 40 * 31.75 / 38.1 / 50.8 mm 400 * 50 * 152.4 mm 400 * 63 * 152.4 mm 450 * 50 * 152.4 mm Automotive Metal Fabrication Construction DIY

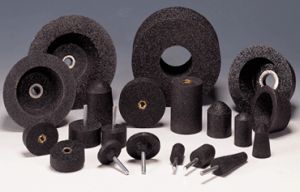

Internal grinding wheels are used for bore grinding of inner rings, gears etc. and the track grinding of outer rings, steering nuts etc. The Noble range of internal grinding wheels offer precise grinding of internal surfaces to obtain excellent surface finishes with accurate dimensioning. They are further engineered to reduce dressing frequency and improve stock removal rates. In contrast to cylindrical surface grinding, internal surfaces require high wheel-work conformity implying that the pre-dressing of the wheel surface be exact. Internal grinding wheels find a range of applications in the grinding of gears, bearings, inner rings, outer rings, steering nuts etc. Some of the industries that use these wheels are Engineering component manufacturers Cutting tools Tools and dies Bearings Auto ancillaries Standard Sizes 13, 20, 25, 40, 50, 100mm. Industrial use Automotive Bearing

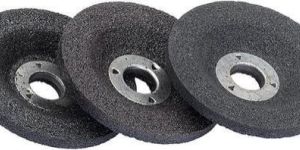

DC wheels are used for de-burring, weld leveling, edge preparation, removal of rolling cracks, cutting runners and raisers, and grooving and chamfering. With a focus on the ever-evolving demands of our clients, we have come up with a wide range of Depressed Centre Wheel. Offered wheel is checked in terms of quality so as to deliver a defect free range from our side. This wheel is manufactured with advance techniques and finest material keeping in mind the set norms of industry. The given wheel is available in numerous specifications as per the variegated requirements of customers. Features: Crack resistance Easy to install Durability Standard Sizes: 100 * 4 * 16 mm 100 * 6 * 16 mm 125 * 5 * 22.23 mm 125 * 7 * 22.23 mm 180 * 5 * 22.23 mm 180 * 7 * 22.23 mm 230 * 7 * 22.23 mm 230 * 5 * 15.88 mm (Foundry Wheel) 230 * 7 * 15.88 mm (Foundry Wheel)

Cylindrical grinding wheels are used in O.D. plunge grinding and the O.D. grinding of gear shafts, splined shafts etc. The Noble range of  Resinoid cylindrical grinding wheels offers predictable performance with a winning combination of fast stock removal, fine surface finish, reduced rework and reduced dressing frequency yielding a predictable result: higher productivity. These wheels are used in the grinding of valves, plunger pins, eye bolts, transmission shafts, bearing races etc. There are also many specialized uses of cylindrical grinding wheels like roll grinding, thread and gear grinding, camshaft grinding and crankshaft grinding which have been profiled separately. Some of the primary users of cylindrical grinding wheels are Auto OEMs Auto ancillaries General Engineering Standard Sizes 250 - 500mm. and face from 150 - 300mm. Industrial use Automotive Precision Grinding Bearing

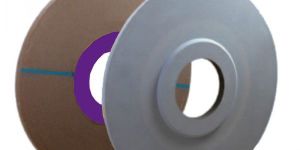

Crankshaft grinding wheels are used in the automotive and industrial OEM and replacement markets in the grinding of crankshafts for a very fine surface finish. The Noble range of Resinoid crankshaft grinding wheels is engineered to yield almost micron-perfect surface finishes while increasing productivity. Wheels can be made to operate up to 60m/sec while reducing dressing frequency, improving form retention and cutting action and offering a high grinding efficiency. Our dual grit wheels are also ideal to grind shaft surfaces of different hardness with different grades of abrasive material. Crankshaft grinding wheels are commonly used in Auto OEMs Auto ancillaries Defense Replacement market Industrial motors Standard Sizes 500 * 75 * 203.2 / 304.8 mm 600 * 75 * 203.2 / 304.8 mm 660 * 75 * 203.2 / 304.8 mm 710 * 25 * 304.8 mm 760 * 50 * 304.8 mm Industrial use Automotive Precision Grinding

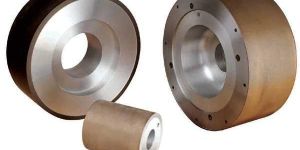

Centreless grinding wheels are used in the grinding of bearings, bars, taps, drills and a range of auto parts. The Noble range of resinoid centreless grinding wheels is designed for versatility in grinding materials of different hardness and size. They are ideal for difficult-to-grind material and provide free cutting, reduced dressing frequency, good form retention and excellent component finish. They are used in the grinding of components, predominantly in the automotive industry: where high productivity and precise surface finish are vital. Some industrial applications of centreless grinding wheels are: Bearings: Taper roller, bearing races and tracks. Bar manufacturers: Grinding bright bars etc. Standard Sizes 500 * 150 * 304.8 / 305 mm 500 * 200 * 304.8 / 305 mm 500 * 250 * 304.8 / 305 mm 600 * 100 * 304.8 / 305 mm 600 * 200 * 304.8 / 305 mm Industrial use Precision Grinding Bearing
